Water circulation painting booth | High-Efficiency Industrial Water Curtain Painting Booth
Product Overview
The Water Curtain Spray Booth is a highly efficient industrial painting solution designed to capture paint overspray, airborne particles, and volatile contaminants generated during spray painting operations. By utilizing a continuous water curtain combined with a powerful exhaust system, this Water Curtain Painting Booth effectively removes paint mist from the working environment while improving air quality and ensuring a cleaner, safer production process.
Manufactured from high-quality stainless steel or galvanized steel, the booth provides outstanding corrosion resistance, structural durability, and long service life. It is widely used in automotive manufacturing, furniture production, metal fabrication, machinery coating, plastic products, hardware finishing, and many other industrial painting applications.
Whether you are operating a small workshop or a large manufacturing facility, our Industrial Water Curtain Spray Booth can be customized to meet your specific production requirements, helping improve coating quality, reduce environmental pollution, and enhance workplace safety.

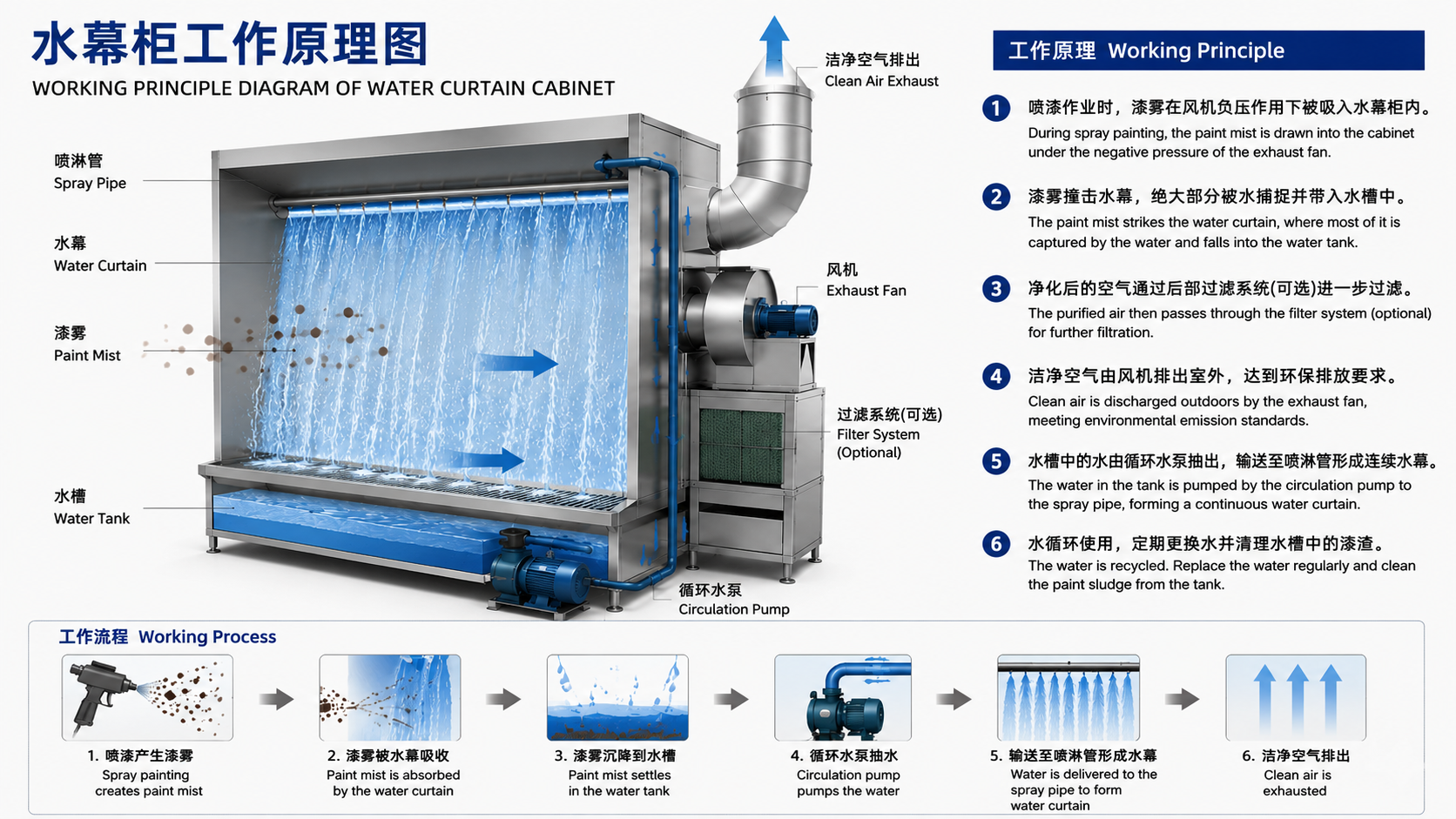

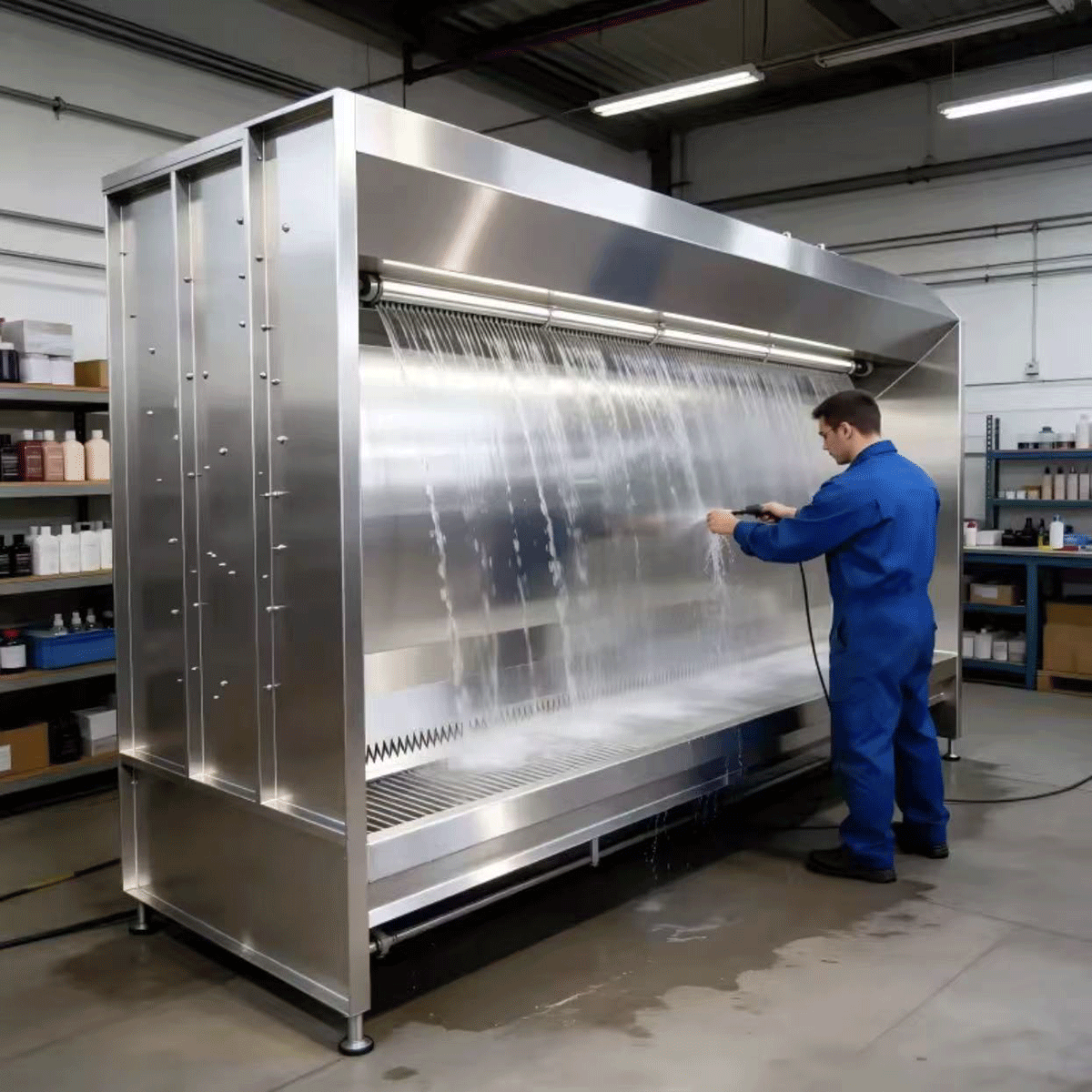

Working Principle
The Water Curtain Spray Booth operates by forming a continuous sheet of flowing water across the rear wall of the booth. During the spray painting process, paint overspray is immediately drawn toward the water curtain by the exhaust airflow. Most paint particles are captured by the flowing water and carried into the water collection tank below.
The remaining fine particles pass through additional filtration stages before clean air is discharged by the exhaust fan. The collected water is continuously circulated through a high-performance water pump, creating an efficient and environmentally friendly paint mist removal system.
This combination of water curtain technology and mechanical ventilation significantly reduces airborne paint particles and minimizes contamination inside the spray booth.
Water circulation painting boothKey Features High Paint Mist Collection Efficiency
TheWater circulation painting boothcurtain effectively captures paint overspray before it spreads throughout the workshop, reducing airborne contamination and improving operator safety.
Durable Stainless Steel Construction
The booth is available in SUS304 stainless steel, SUS201 stainless steel, or galvanized steel, providing excellent corrosion resistance, easy cleaning, and long-lasting performance under demanding industrial conditions.
Water Circulation System
An integrated water tank and circulation pump continuously recycle water, reducing water consumption and lowering operating costs while maintaining consistent paint mist collection performance.
Powerful Exhaust Ventilation
A high-capacity exhaust fan creates stable negative pressure inside the booth, quickly removing paint mist, odors, and moisture to maintain a clean painting environment.
Easy Maintenance
The simple structural design allows convenient access to the water tank, spray pipes, circulation pump, and filtration components, making routine cleaning and maintenance fast and efficient.
Energy-Efficient Operation
The optimized airflow design minimizes energy consumption while maintaining excellent paint mist removal efficiency, helping reduce long-term operating costs.
Customizable Design
The booth can be customized according to customer requirements, including overall dimensions, airflow capacity, water pump power, fan specifications, lighting system, control cabinet, explosion-proof configuration, and filtration system.

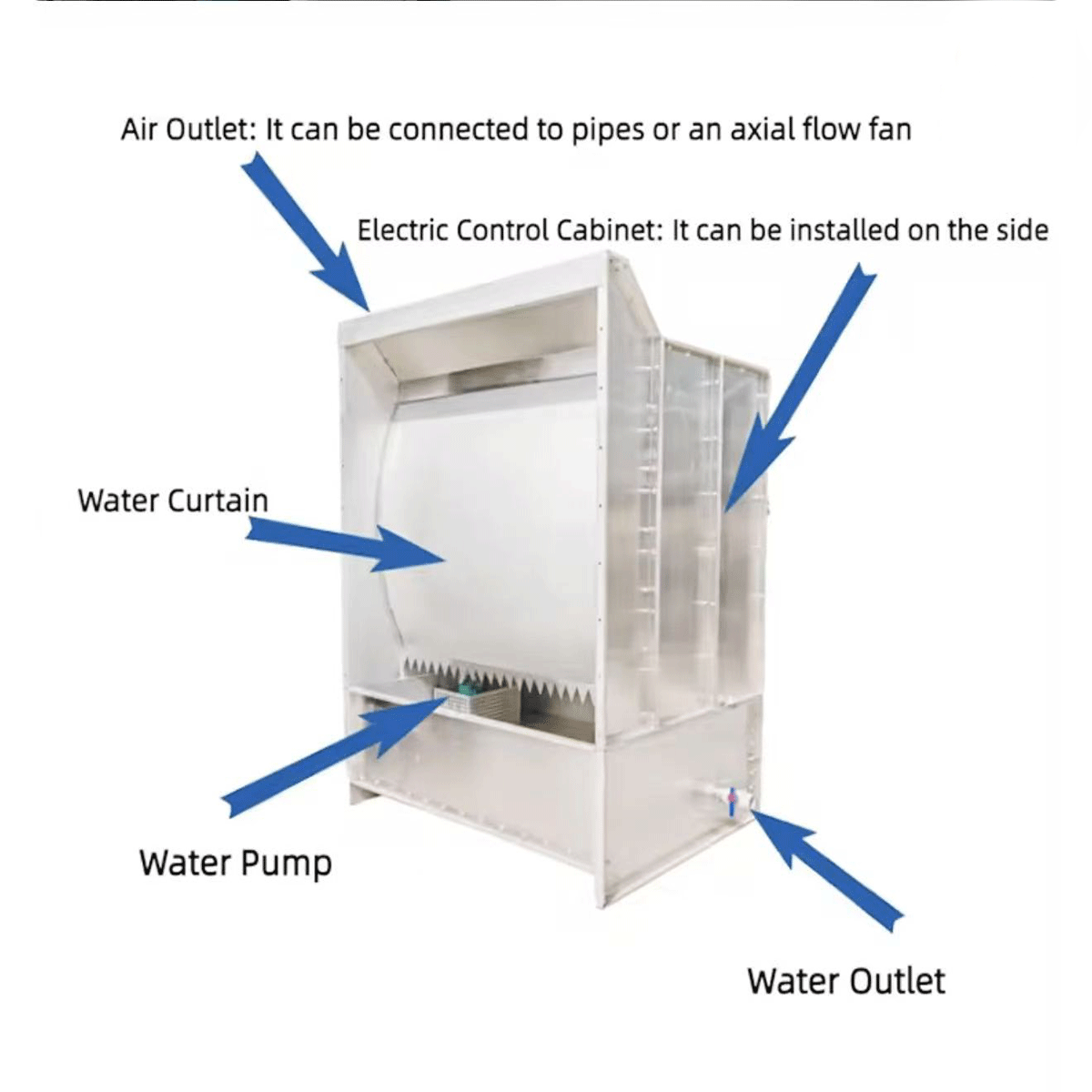

Water circulation painting boothMain Components
A complete Water Curtain Painting Booth typically consists of:
- Stainless steel cabinet structure
- Water curtain distribution system
- Water circulation pump
- Water collection tank
- Spray water pipe
- Exhaust fan
- Air duct system
- Multi-stage filtration system
- Electrical control cabinet
- LED lighting system (optional)
- Explosion-proof motor and fan (optional)
Each component is carefully engineered to ensure stable operation, high collection efficiency, and long service life.

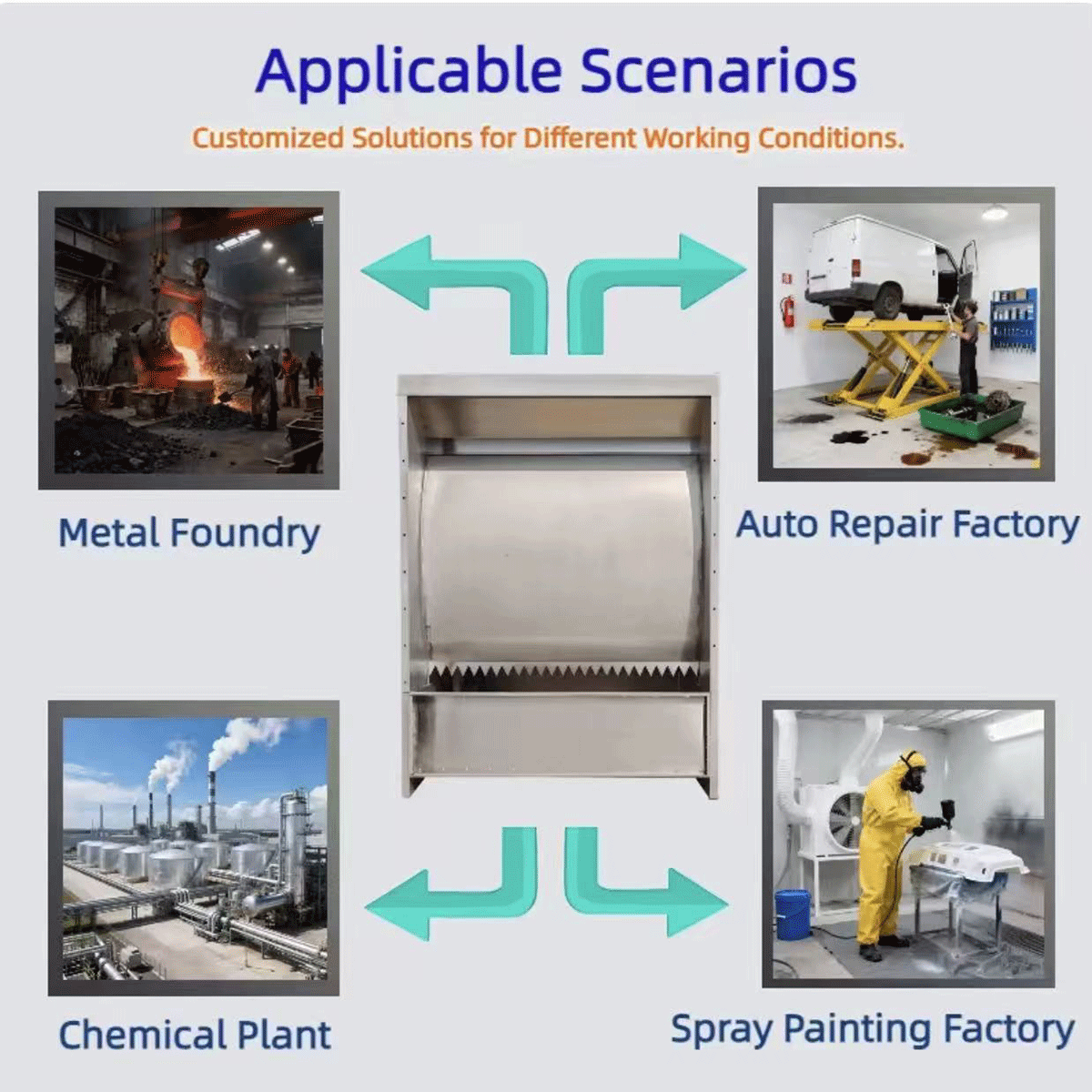

Water circulation painting boothApplications
The Industrial Water Curtain Spray Booth is suitable for a wide variety of coating applications, including:
- Automotive parts painting Auto repair workshops
- Metal fabrication Steel structure coating
- Furniture manufacturing Wood finishing
- Plastic products
- Home appliance production
- Machinery manufacturing
- Agricultural equipment
- Hardware coating
- Aluminum profiles
- Motorcycle and bicycle parts
- Industrial equipment finishing
Its versatile design makes it an ideal solution for both manual and automated spray painting
Water circulation painting boothAdvantages
Compared with traditional dry filter spray booths, the Water Wash Spray Booth offers several significant advantages.
The water curtain captures paint particles immediately after spraying, resulting in much higher paint mist collection efficiency. The recycled water continuously removes overspray, reducing filter replacement frequency and lowering maintenance costs. The booth also provides a cleaner working environment by minimizing airborne contaminants and improving visibility for operators.
Furthermore, the water circulation system reduces fire risks associated with dry paint accumulation, making it a safer choice for many industrial coating processes.
Water circulation painting boothOptional Configurations
To meet different industrial requirements, we offer a variety of optional configurations, including:
- PLC automatic control system Touch screen control panel
- Automatic water replenishment Water level monitoring system
- Stainless steel water pump Multi-stage filtration
- Activated carbon filtratio Explosion-proof electrical components
- Variable frequency fan control Customized airflow design
- Customized booth dimensions Conveyor integration for automatic production lines
