Application and function of Water Curtain Spray Booth
The Water Curtain Cabinet is mainly used to handle the over sprayed paint mist during the painting period and to provide a good work environment for the workers. The high-effective environmental water curtain paint spray booth mainly use the water to filter the over spray paint mist.It is convenient and energy-saving, because you just need to change the water.
Working theory of Water Curtain Spray Booth
The environmental-friendly water curtain paint spray booth mainly used the water pump to make the water flow evenly on the water curtain. Then the over sprayed paint mist from the gun will flow into the water tank mixed with the water. And few paint mist is extracted to the workshop outside by the upper extract fan via the extract duct. Thus it provides the workers with a good work environment without paint mist.

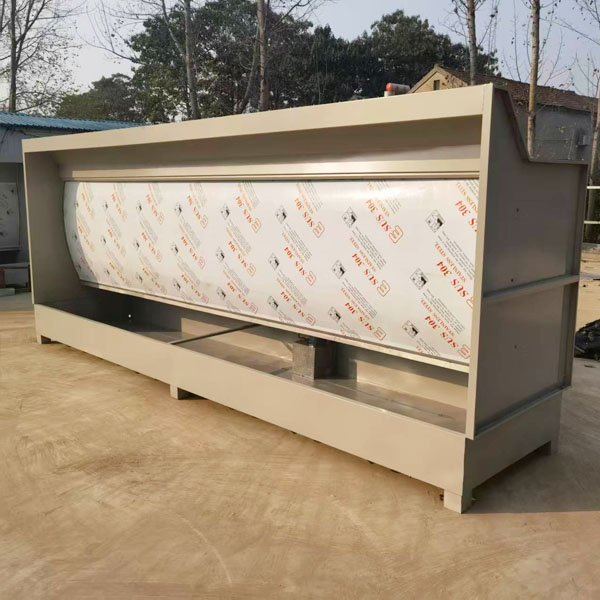

Side of the water curtain cabinet

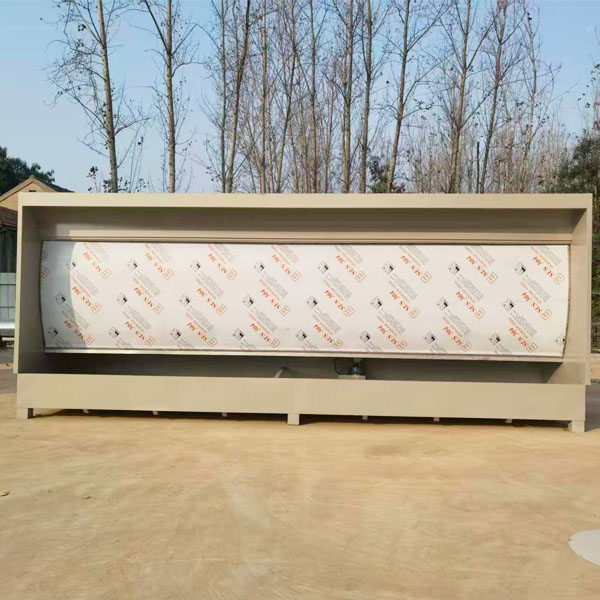

Front of the water curtain cabinet

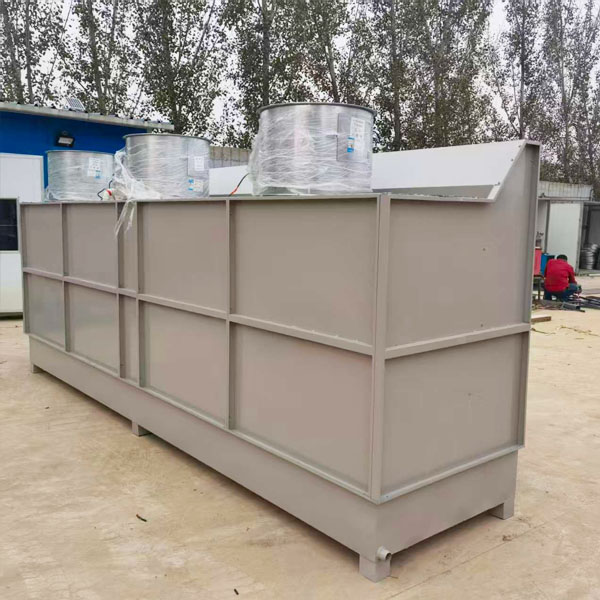

Side of the water curtain cabinet

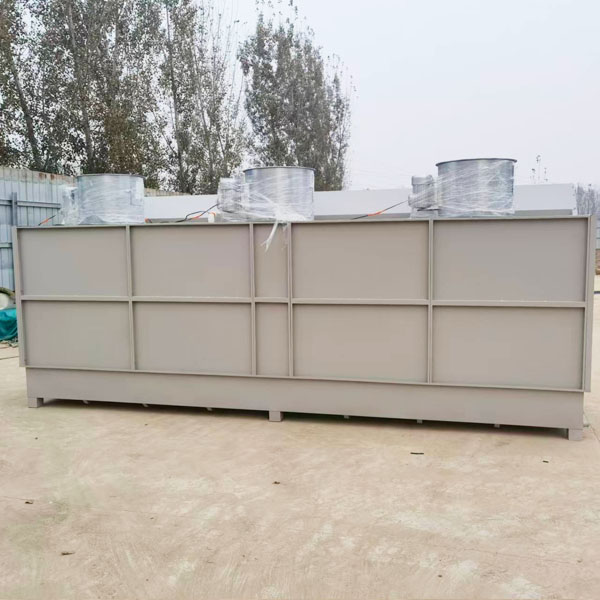

Back of the water curtain cabinet
Usage and maintenance of Water Curtain Spray Booth with Stainless Steel Curtain
1. Please spray some butter onto the fan blades before running the environmental-friendly water curtain paint booth. Thus it is easier for the workers to clean the paints on the fan after long period.
2. Please be ensured that the fan is clockwise running while running the spray paint booth. Thus the booth could discharge the paint mist to the workshop outside while running. If the fan is counter-clockwise running, you just need to replace the three hot wires on the motor.
3. Please handle the paints on the fan blades during certain period.
4. Pay attention to the fan blades during handling in case the fan blades become deformed then influences the fan using and reduce the fan lifetime.
5. The water water tank can not be too full to clog the water pump.
6. The pump cannot be used without water. If you find that you cannot pump water, Please cut off the power immediately.
Description of Water Curtain Spray Booth with Stainless Steel Curtain
ADVANTAGES:
1. The water curtain is made by Stainless steel, Easy to clean and corrosion resistant.
2. the water can be recycled to use.
3. The paint mist would be handled once time without pollution.
4. The water curtain paint spray booth could make the work environment better,
5. improve the product quality, reduce the pollution during producing.
PANEL:
1. Wallboard and roof board is made of 1.2mm thick galvanized steel with powder coating on the surface, SS steel IS FOR OPTION.
2. The water tank is made of 1.5mm thick galvanized steel panel with powder coating on the surface, SS steel IS FOR OPTION.
3. The water curtain is made of 201 stainless steel.
4.1 set of the control box
5. Power supply: 380V/3Phase/50Hz or as required.
After-sale service:
1. Engineers available to serve and train customers overseas.
2. Machine guarantee is one year.
3. English manual and PPT installation and operation file with pictures step by step.
4. Whole life technical support for CHANCSMAC machinery.

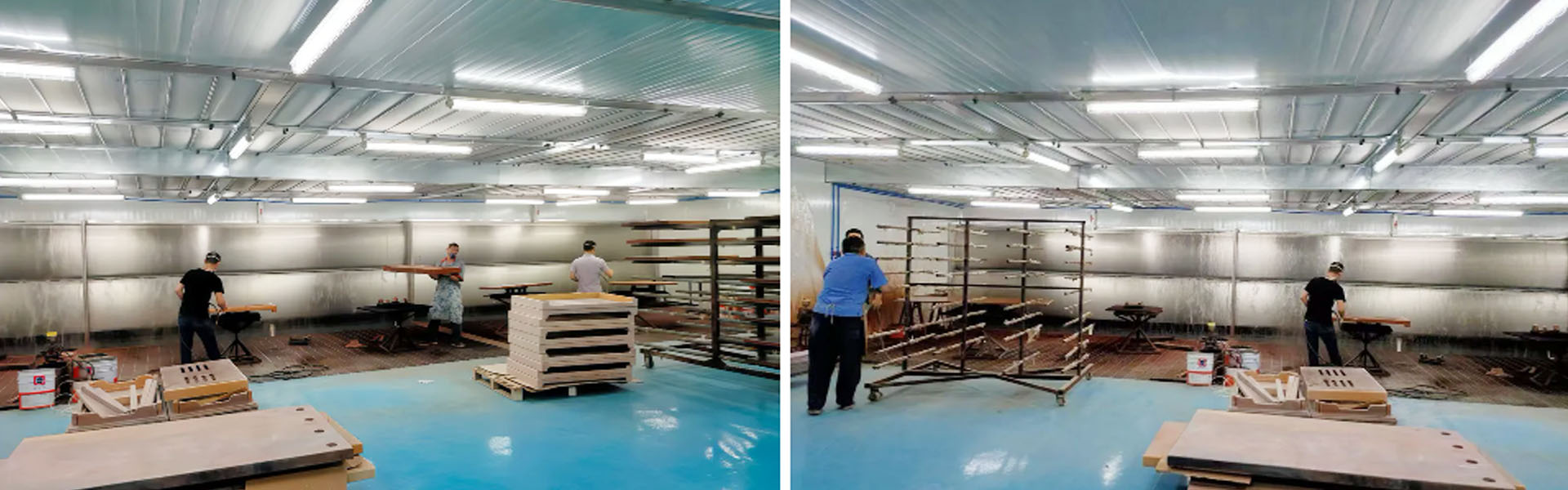

Water Curtain Cabinet Usage Examples
