Water Curtain Cabinet (One-Piece Type)

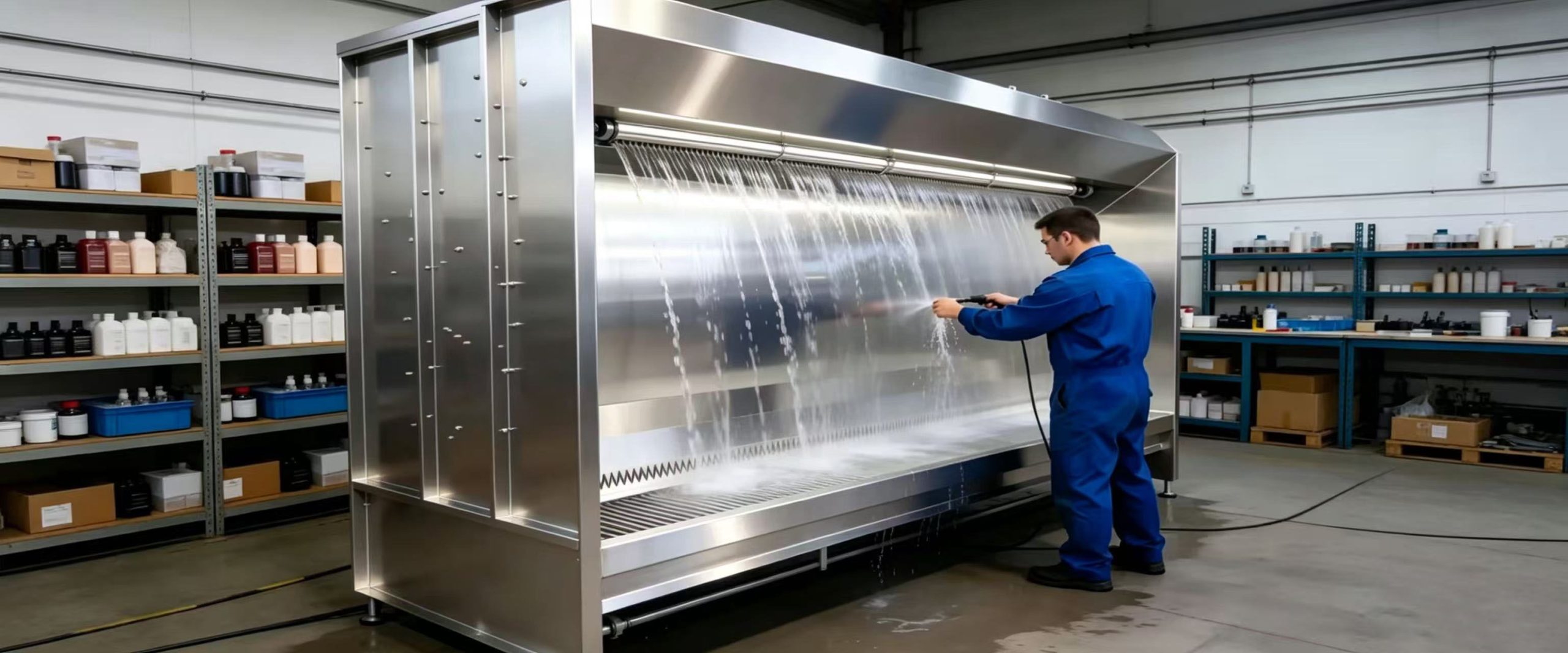

Industrial water curtain cabinets are a critical piece of environmental protection equipment for any industrial painting or spraying operation. Designed to address the challenges of paint mist, overspray, and harmful fumes, these systems play a vital role in both workplace safety and regulatory compliance. Unlike dry filtration methods, water-based systems use a continuous water film to trap paint particles, offering a more efficient and fire-resistant solution for high-volume spray booth applications.The maintenance of our industrial water curtain cabinet is straightforward, with the seamless stainless steel panel allowing for quick cleaning and minimal downtime.
Material
• The one-piece water curtain plate is made of 1.0–1.5mm thick 304 stainless steel, corrosion-resistant, rust-proof, and guarantees long-term uniform water flow without breakage.
• The cabinet frame adopts 1.5mm galvanized steel or 304 stainless steel, with sturdy square tube reinforcement for stable, deformation-free performance.
• The water tank is made of 2.0–2.5mm thick steel with full welding to prevent leakage.
Craftsmanship & Design
• The core feature is the one-piece curved water curtain design, formed from a single stainless steel sheet without any seams, ensuring a smooth, continuous water film for consistent paint mist capture.
• All welds are fully welded and polished, with anti-rust treatment applied both inside and outside for enhanced durability.
• Equipped with a precision overflow trough and water distribution system, creating an even 2mm water curtain.
• The bolted modular structure allows for easy transport, installation, and maintenance.
Standard & Custom Sizes
• 1-station: 1500×1200×1800mm
• 2-station: 2000×1200×2000mm
• 3-station: 3000×1500×2000mm
• Fully customizable width, depth, and height to fit your workshop and spray booth requirements.
Core Advantages
• Higher purification efficiency with no seam leakage, capturing over 90% of paint mist effectively.
• Easier cleaning and maintenance with no gaps for paint residue buildup.
• Longer service life and stable performance, ideal for high-volume industrial spraying operations.
High-quality details
• Intelligent Control Box
Centralized, user-friendly controls for the pump, lighting, and exhaust system include an emergency stop function, simplifying operation and ensuring stable, safe performance.
• Explosion-Proof Lighting
Top-mounted T8 explosion-proof lamps provide bright, uniform illumination for the spraying area while meeting safety standards for flammable environments, eliminating fire and explosion risks.
• High-Efficiency Circulation Pump
An industrial-grade, corrosion-resistant water pump, paired with an external filter screen to block paint residue, delivers consistent water flow for continuous water curtain operation and extends the pump’s service life.
• One-Piece 304 Stainless Steel Water Curtain
The seamless, one-piece 304 stainless steel panel ensures even water distribution, excellent corrosion resistance, and easy cleaning, effectively capturing paint mist without dead corners.
Working Principle
The water curtain cabinet operates on the principle of water filtration and negative pressure air flow.
1. The built-in pump circulates water to form a continuous, uniform water curtain on the stainless steel panel.
2. Paint-laden air from the spray booth is drawn through the water curtain by the exhaust system.
3. Paint mist and particulates are captured and dissolved by the water film, while clean air is discharged.
4. A water baffle and mist separator prevent water droplets from escaping, ensuring efficient filtration and low humidity in the exhaust.
Key Advantages
• High Filtration Efficiency: Captures over 90% of paint mist and dust, helping facilities meet local environmental regulations and avoid fines.
• Enhanced Workplace Safety: Eliminates worker exposure to toxic paint fumes and reduces fire hazards associated with dry filters.
• Cost-Effective Operation: Water is recirculated, reducing waste and lowering operating costs, while captured paint residue can be recycled or disposed of safely.
• Low Maintenance Design: The seamless stainless steel panel and easy-access components simplify cleaning and reduce downtime.
• Versatile Application: Suitable for furniture, woodworking, metal fabrication, automotive repair, and plastic spraying operations.
By combining robust construction, reliable performance, and flexible customization, our industrial water curtain cabinet provides a comprehensive solution for paint mist treatment, ensuring compliance, safety, and efficiency in your spray booth operations.
Our industrial water curtain cabinet meets local environmental standards for paint mist emissions. For more information on industrial air quality regulations, you can refer to the official guidelines

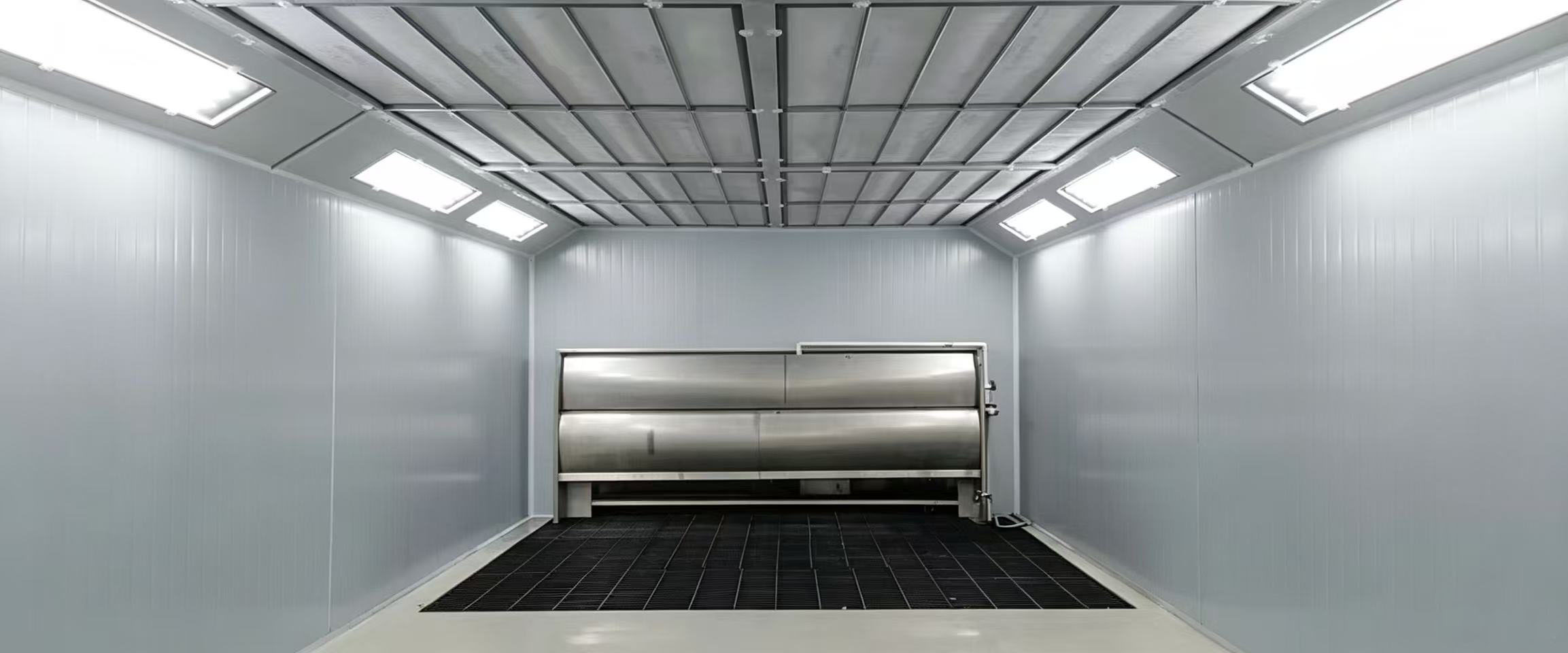

If you are looking for a complete solution, we also offer matching spray booth systems that work seamlessly with this water curtain cabinet.
