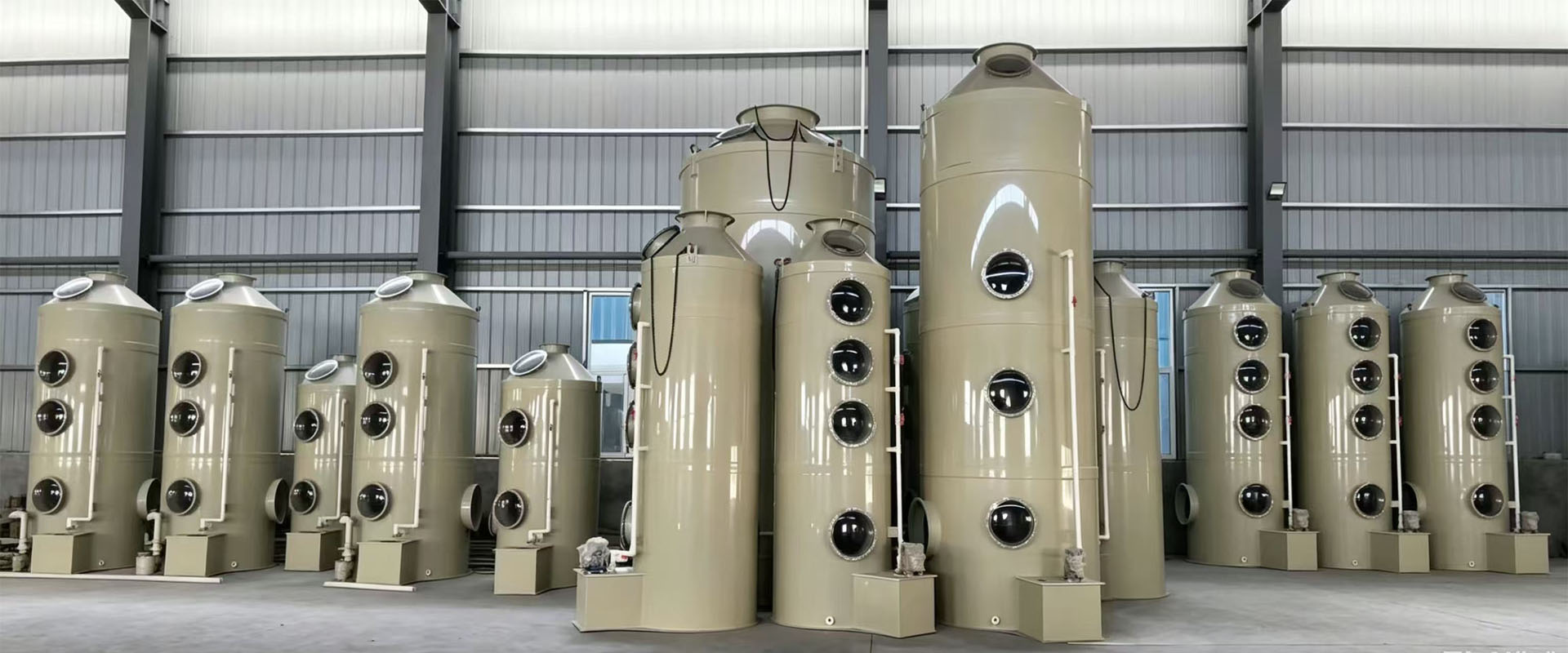

Scrubber Tower For Chemical Plant Printing Factory Odor Waste Gas Removal
Scrubber Industrial sprinkler tower air scrubber exhaust gas removal wet scrubber
What is a scrubber? A scrubber (also known as a spray tower, washing tower) is a purification equipment that uses a liquid, usually water or a specific chemical solution, in contact with a gas to remove contaminants from the gas. Its core working principle is the mass transfer process of gas-liquid phases, which mainly purifies exhaust gas through physical absorption and chemical reactions
Scrubber Core workflowThe typical workflow of a scrubber is a counter-flow contact process with the following steps:Exhaust gas introduction: Exhaust gas containing pollutants enters the tower from the bottom or middle and lower part of the scrubber under the action of the fan and flows upwards.Liquid spraying: The washing solution (such as water, acid or lye) is sprayed down evenly through the spray system at the top of the tower, forming droplets or liquid films.Gas-liquid contact and purification: The upward-flowing exhaust gas and the downward-spraying liquid meet and fully contact in the packing layer in the tower.
The packing layer (e.g., Bauer ring, Lassi ring, etc.) provides a huge specific surface area, which greatly increases the efficiency of gas-liquid contact.
During this process, contaminants are removed in two main ways:Physical absorption: Particulate matter, dust or soluble gases (e.g., ammonia, hydrogen sulfide) in the exhaust gas are wetted, captured and dissolved by the liquid.Chemical reaction: When treating acid mist (such as HCl, SO₂) or alkali mist (such as NH₃), corresponding alkaline or acidic substances are added to the washing solution, and a neutralization reaction occurs, thereby converting harmful gases into harmless salts.
Gas-liquid separation: The purified gas passes through the defogging layer (or gas-water separator) on the top of the tower before being discharged.
This device can effectively intercept and remove tiny droplets entrained in the gas, ensuring that the gas is discharged clean and dry.Liquid circulation: The washing liquid that absorbs the contaminants falls into the circulating tank at the bottom of the tower, is pressurized by the circulating water pump, and is re-transported to the sprinkler system at the top of the tower for recycling.
Scrubber Main structural compositionA typical scrubber typically consists of the following key components:Tower body: The main shell of the equipment, often made of corrosion-resistant fiberglass (FRP), PP plastic or stainless steel.Packing Layer: The core part of the tower that provides a medium for gas-liquid contact.Spray system: Includes circulating water pumps, pipelines, and nozzles, responsible for uniformly spraying the washing solution.Circulation Sink: Located at the bottom of the tower to store and circulate the washing liquid.Demist layer: installed at the gas outlet on the top of the tower to remove moisture entrained in the gas
Common combination applicationsIn practical industrial applications, scrubbers are often used as pretreatment units for exhaust gas treatment. For example, it is often used in combination with activated carbon adsorption towers. The scrubber first removes particulate matter, dust, and some water-soluble substances from the exhaust gas, preventing these impurities from clogging the subsequent activated carbon adsorption layer, thereby ensuring the efficient and stable operation of the entire exhaust gas treatment system.
Hebei Yiboyuan Environmental Protection Machinery Manufacturing Co., Ltd.is located in Jiaohe Industrial Zone, Botou City, Hebei Province, known as the"hometown of casting" and "hometown of environmental protection". It has goodgeographical advantages and rich industrial heritage. Located north of Beijing andTianjin, and east of Bohai Sea, the Beijing Shanghai Railway, Beijing FuzhouExpressway, and national highways run through the entire area.
Convenienttransportation and superior location, we are a specialized new environmentalprotection equipment company that integrates the design, manufacturing, sales,and installation of dust collectors.Yiboyuan Environmental Protection is a company with over 16 years ofexperience in design, development, manufacturing, installation, andcommissioning.
A new type of environmental protection equipment company thatintegrates after-sales service. The company produces various specifications ofdust collector equipment and various dust removal accessories. The dust collectorequipment is strictly controlled from design, manufacturing, and inspection, andthe manufacturing standards are strictly implemented according to environmentalprotection process regulations, achieving one-step completion.
Our companyalways adheres to strict factory management, quality trust, and technologicalinvestment as the breakthrough point to produce high-quality bag dust collectorequipment.
The company's main products include catalytic combustion, exhaust gastreatment equipment, bag filter, single machine dust collector, cyclone dustcollector, boiler dust collector, mining dust collector, filter dust collector,woodworking dust collector, desulfurization and de sales dust collector, industrydust collector, dust humidifier, screw conveyor, star shaped unloader, buriedscraper conveyor, dust removal skeleton, dust removal bag, electromagneticpulse valve, dust removal accessories and other series of products, mainly used inindustries such as power, building materials, cement, metallurgy, chemicalindustry, casting, grain processing, etc.
