Efficient Waste Gas Absorption Spray Scrubber For Industrial Air Purification
CE Certified Industrial Scrubber Tower product Introduction：
This complete industrial waste gas treatment system consists of a PP spray scrubber tower, corrosion-resistant exhaust fan, air ducts and auxiliary purification equipment, with CE certification for global industrial environmental projects.

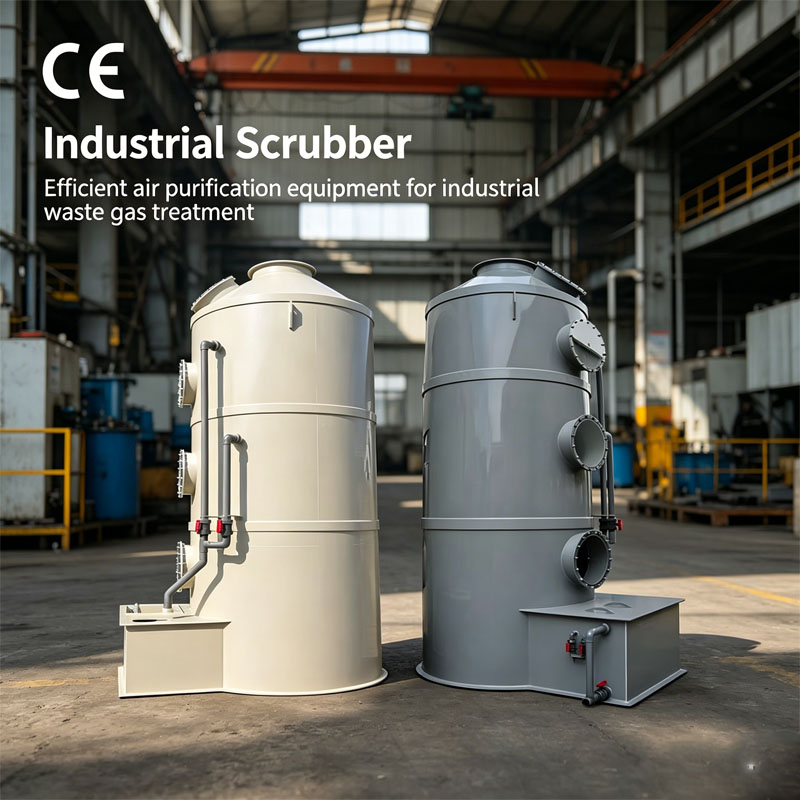

The main tower body is constructed from thick anti-corrosion polypropylene (PP), which can withstand strong acid, alkali and corrosive industrial waste gas, featuring long service life and low maintenance cost. It is equipped with multi-layer spray pipes, atomizing nozzles, PP packing layers and a top mist eliminator, forming a complete gas-liquid reaction purification unit.
Supporting centrifugal fans extract polluted exhaust gas from production workshops and deliver it into the scrubber. After neutralization, absorption and demisting inside the tower, pollutants such as acid mist, alkaline fume, VOCs, hydrogen sulfide and chemical odor are fully removed. Clean gas that meets international emission standards is discharged into the air.
Customized solutions are available for different air volumes, gas concentrations and working conditions. The whole set system runs stably with low noise, high purification efficiency up to 98%, widely applied in chemical, electroplating, printing, coating, pharmaceutical, rubber, sewage treatment and other industries to help factories meet local environmental protection regulations.
Product Features
CE Certified Industrial ScrubberTower core System Advantages

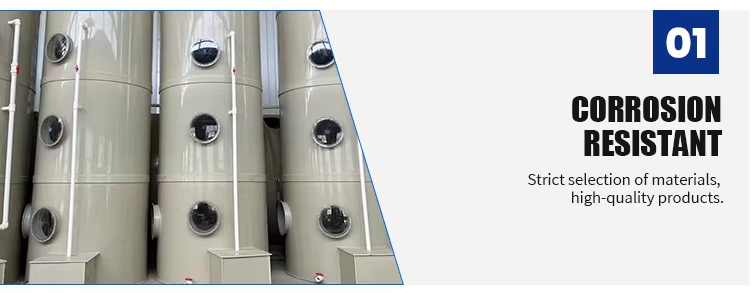

1.Full PP anti-corrosion structure, resistant to all kinds of corrosive waste gas
2.Complete integrated system: scrubber tower + fan + connecting pipelines

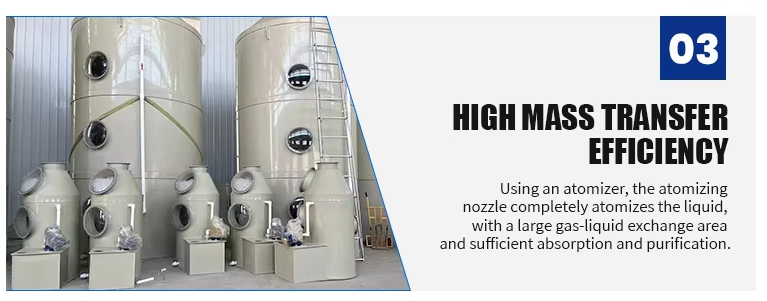

3.Multi-stage gas-liquid reaction design, high waste gas removal efficiency
4.CE certified, safe outdoor installation for factory rooftop
5.Visible inspection windows for easy daily maintenance
6.Circulating liquid design to save water and reduce operating costs

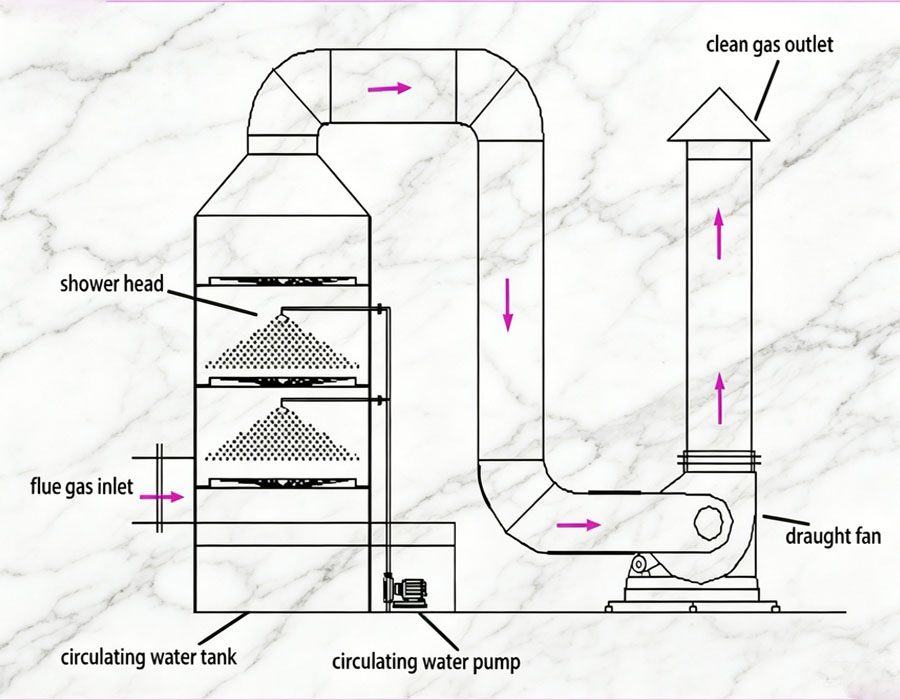

Working Principle of Complete Waste Gas Scrubber System
Working Principle：
1.Gas Extraction & Conveying The corrosion-resistant centrifugal fan generates negative pressure to extract toxic and polluted waste gas from production workshops, then transports the waste gas to the bottom inlet of the PP scrubber tower via air ducts.
2.Upward Gas Flow Inside Tower Polluted gas rises evenly from the tower bottom through the support plate and packing layers, fully preparing for gas-liquid contact reaction.
3.CE Certified Industrial Scrubber Tower Countercurrent Spray Neutralization & Absorption The circulation pump sends neutralizing liquid (alkaline liquid for acid waste gas, acidic liquid for alkaline fume) to multi-layer top spray pipelines. Fine mist droplets spray downward against the upward gas flow. Harmful gas molecules dissolve and produce neutralization chemical reactions with the liquid on the surface of PP packing, turning harmful substances into soluble salts and trapping them in the circulating water. The packing greatly expands gas-liquid contact area to boost purification effect.
4.CE Certified Industrial Scrubber Tower Mist Separation & Dehydration After absorption treatment, the gas carries tiny water mist upward to the top mist eliminator. The demister intercepts liquid droplets to avoid water mist escaping together with exhaust gas, preventing secondary pollution and reducing water consumption.
5.CE Certified Industrial Scrubber Tower Standard Clean Gas Discharge Fully purified, odor-free gas passes through the exhaust fan and chimney to be discharged into the atmosphere, fully complying with industrial environmental emission standards. The contaminated liquid flows down to the tower bottom water tank for cycle use, and regular chemical dosing or sewage draining maintains stable purification performance.

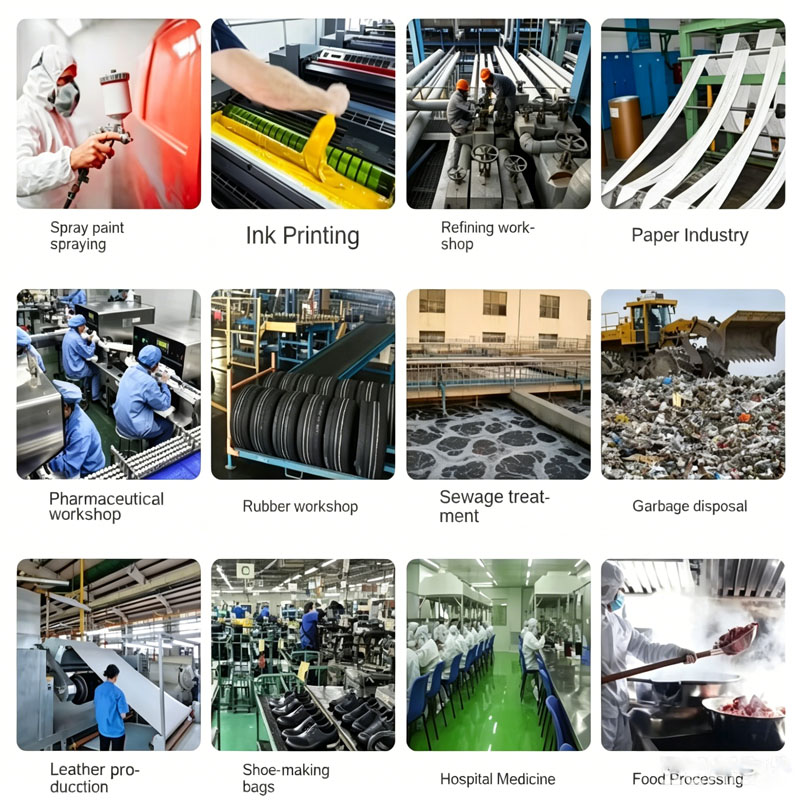

Application Scope
1. CE Certified Industrial Scrubber Tower Chemical IndustryTreat acidic & alkaline waste gas, sulfur dioxide, hydrogen chloride, nitrogen oxides, chemical malodorous fumes produced in fine chemical, chemical synthesis, reagent processing workshops.
2. CE Certified Industrial Scrubber Tower Electroplating & Surface Treatment FactoryNeutralize acid mist, chrome mist, alkaline vapor generated during pickling, electroplating, oxidation, phosphating processes.
3. Spray, Coating & Printing IndustryRemove paint mist, VOC solvent odor, ink volatile waste gas from hardware spraying, furniture coating, gravure printing, packaging printing workshops.
4.pungent chemical exhaust and fermentation odor from raw medicine synthesis, pharmaceutical processing, hospital lab chemical waste gas.
5. Leather & Shoe Manufacturing PlantEliminate tannic acid mist, glue solvent odor, alkaline waste gas in leather tanning, shoe bonding and sole baking production lines.
6. Rubber & Tire WorkshopDeodorize vulcanization waste gas, rubber mixing irritating odor generated during tire production and rubber molding.
7. Paper & Textile Printing Dyeing FactoryHandle bleaching alkaline exhaust, pulp odor, dye volatile waste gas from papermaking and textile dyeing lines.
8. CE Certified Industrial Scrubber Tower Sewage Treatment & Garbage Disposal PlantRemove hydrogen sulfide, rotten malodorous gas from sewage pools, sludge tanks, garbage sorting and landfill stations.
9. CE Certified Industrial Scrubber Tower Food Processing FactoryTreat acidic cooking fume, fermentation odor, pickling waste gas of food brewing, frying and pickling workshops.
10. CE Certified Industrial Scrubber Tower Other Applicable ScenariosBattery manufacturing, metallurgical pickling workshop, laboratory waste gas treatment, fertilizer plant, plastic processing factory.
