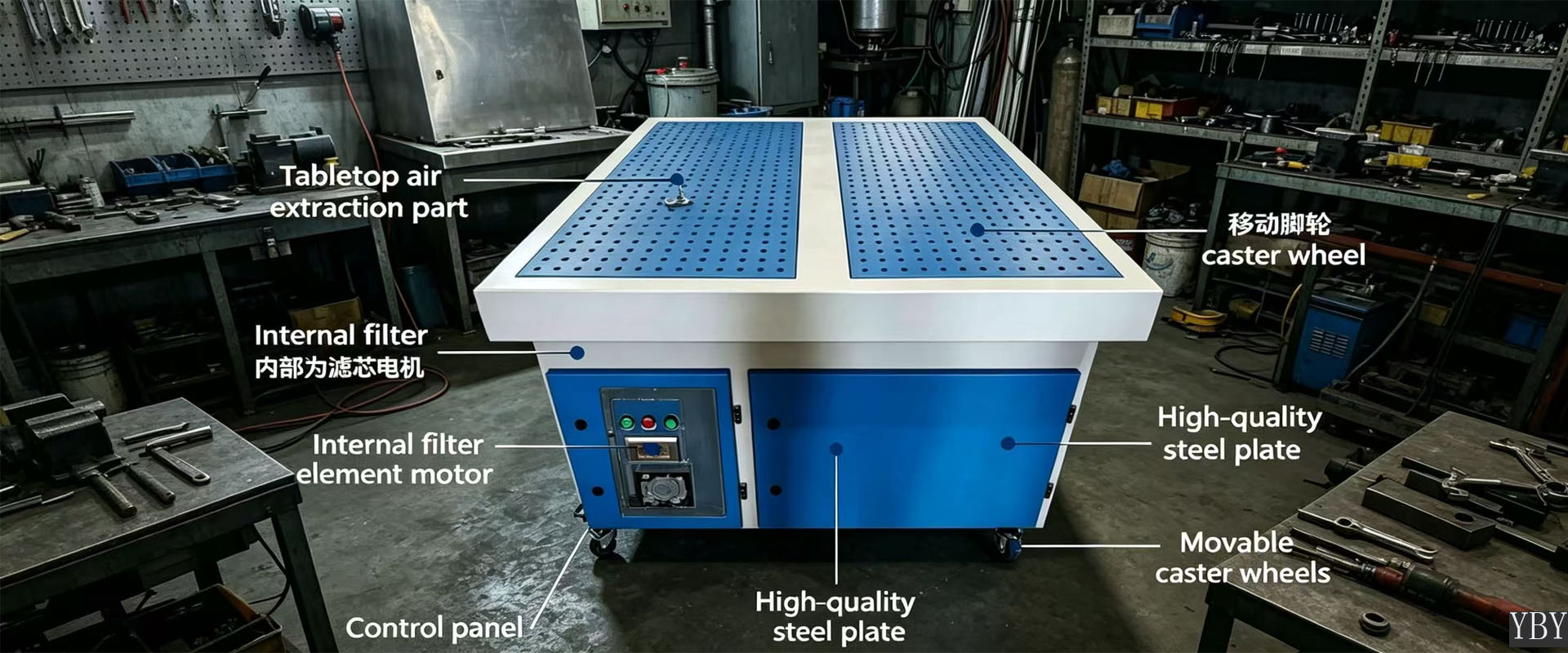

Dust removal Tiling the sanding table Mobile Industrial Dust Extraction Table with Dust Removal Function, for Grinding and Welding
Dust removal Tiling the sanding table Introduction to the grinding table:
The grinding dust removal table is an industrial environmental protection equipment that integrates the functions of the worktable and the dust collector. It is designed for small and medium-sized fine machining, irregular parts processing and other working conditions, and can effectively capture suspended dust and soot generated in grinding, polishing, cutting and other processes from the source without interfering with the normal operation of workers, providing operators with a clean and healthy working environment.
Tiling the sanding table How it works:The core principle of the polishing dust removal table is to use the fan to generate negative pressure and draw dusty air into the equipment for purification.
The entire process is usually divided into the following steps:Dust suction: After the fan is started, a negative pressure zone is formed at the air inlet of the workbench (usually located on the table, side or back) to suck in the dust generated by the operation.
Primary separation: After the dusty airflow enters the equipment, it first passes through the deflector. Larger dust particles fall directly into the ash collection drawer below due to gravity or after hitting the deflector.
Fine filtration: Air containing fine particles continues into the filter chamber and passes through the filter element (or cartridge).
Dust is efficiently blocked on the outer surface of the filter while clean air passes through the filter.
Automatic dust cleaning: When the dust on the surface of the filter element accumulates to a certain extent, the equipment will clean the dust through pulse spraying or manual vibration.
The impact or vibration of the compressed air causes dust to leave the filter and fall into the ash drawer, ensuring smooth flow and continuous efficient operation of the equipment.
Clean air discharge: The purified air is discharged through a fan and can be circulated indoors without the need for external pipes, thereby saving energy.
Tiling the sanding table Key features and benefits:Integrated design:
It integrates workbench and dust collector, with a compact structure and small footprint, no need for external pipes, and can be used directly indoors.Source treatment: Capture and purify at the source of dust generation to effectively prevent the spread of dust and solve the pollution problem from the root.
Efficient purification: Using imported coated filter cartridges and other high-efficiency filtration media, the purification efficiency of fine dust including PM2.5 can reach more than 99.9%.
Intelligent Ash Cleaning: Equipped with a pulse blowback automatic cleaning system, it can automatically clean the filter element, ensure the stable air suction volume of the equipment, and extend the service life of the filter element.
Low-noise operation: The use of high-efficiency centrifugal fans with noise reduction treatment effectively reduces operating noise while maintaining strong suction power, ensuring the physical and mental health of operators.Flexibility and convenience:The appropriate filter media can be selected according to the nature of the dust.Drawer dust bin design for easy dumping and cleanup.Some models are equipped with universal wheels for flexible movement.It can be designed as single, double or multi-station to meet different job needs.
Scope of application:Grinding dust removal tables are widely used in the following industries and processes to control soot and dust:Industries: automobile, metallurgy, electronics, shipbuilding, machinery, sheet metal, plastics, rubber, medicine, chemicals, railways, glass, furniture manufacturing, stone processing, etc.Process: various welding, polishing, polishing, deburring of workpieces, plasma cutting, etc
Equipment classificationAccording to different criteria, sanding dust collectors can be divided into several types:According to mobility: it can be divided into fixed and mobile.According to the number of operators: it can be divided into single station, double station and multi-station.According to the cleaning method: it can be divided into pulse blowback automatic cleaning and manual cleaning method.
Company Introduction：
Hebei Yiboyuan Environmental Protection Machinery Manufacturing Co., Ltd.is located in Jiaohe Industrial Zone, Botou City, Hebei Province, known as the"hometown of casting" and "hometown of environmental protection". It has goodgeographical advantages and rich industrial heritage. Located north of Beijing andTianjin, and east of Bohai Sea, the Beijing Shanghai Railway, Beijing FuzhouExpressway, and national highways run through the entire area. Convenienttransportation and superior location, we are a specialized new environmentalprotection equipment company that integrates the design, manufacturing, sales,and installation of dust collectors.
Yiboyuan Environmental Protection is a company with over 16 years ofexperience in design, development, manufacturing, installation, andcommissioning. A new type of environmental protection equipment company thatintegrates after-sales service. The company produces various specifications ofdust collector equipment and various dust removal accessories. The dust collectorequipment is strictly controlled from design, manufacturing, and inspection, andthe manufacturing standards are strictly implemented according to environmentalprotection process regulations, achieving one-step completion.
Hebei Yiboyuan Environmental Protection Machinery Manufacturing Co., Ltd This is my business card, welcome to consult.
