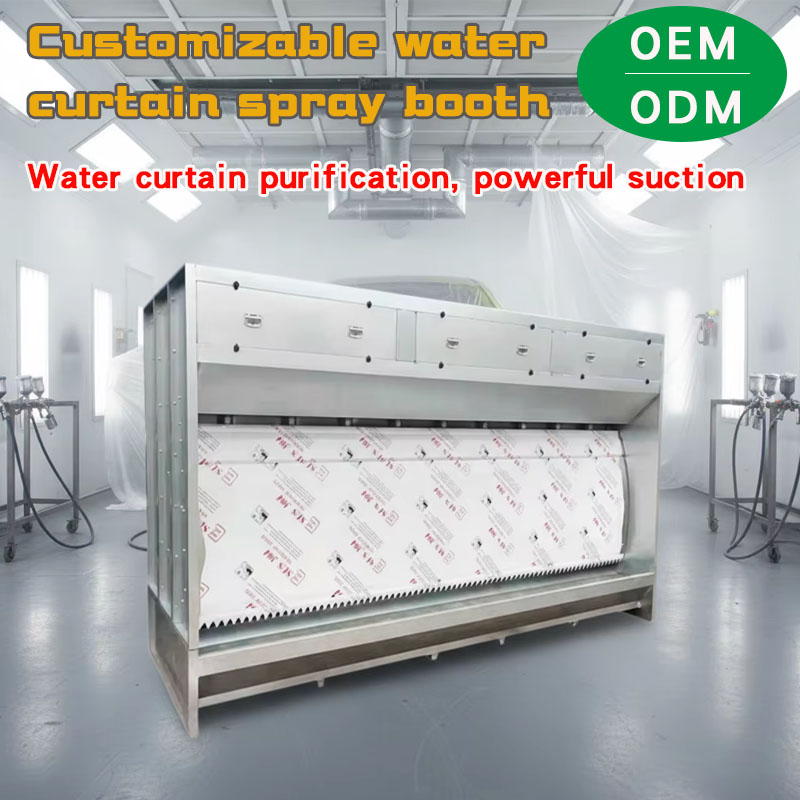

Our Water Spray Booth mist purification booth offers an efficient, green and stable working space for customers. We commit to custom solutions, diversified configurations and full protection to meet core demands of different production scales and scenarios.
We develop exclusive customized schemes based on your workshop layout, budget and spraying technology needs. Size parameters, material quality and functional modules are all flexibly adjustable, achieving perfect fitting and seamless integration into your workshop environment.
Advantages of Paint Spray Water Curtain Cabinet
Efficient Paint Mist Filtration:
Captures over 98% ofairborne paint particles
Environmentally Friendly:
Reduces volatile organiccompound (VOC) emissions
Cost-Effective:
Low maintenance andwater recycling capabilities
Anhanced Worker Safety:
Minimizes respiratoryhealth risks
How a water curtain cabinet works

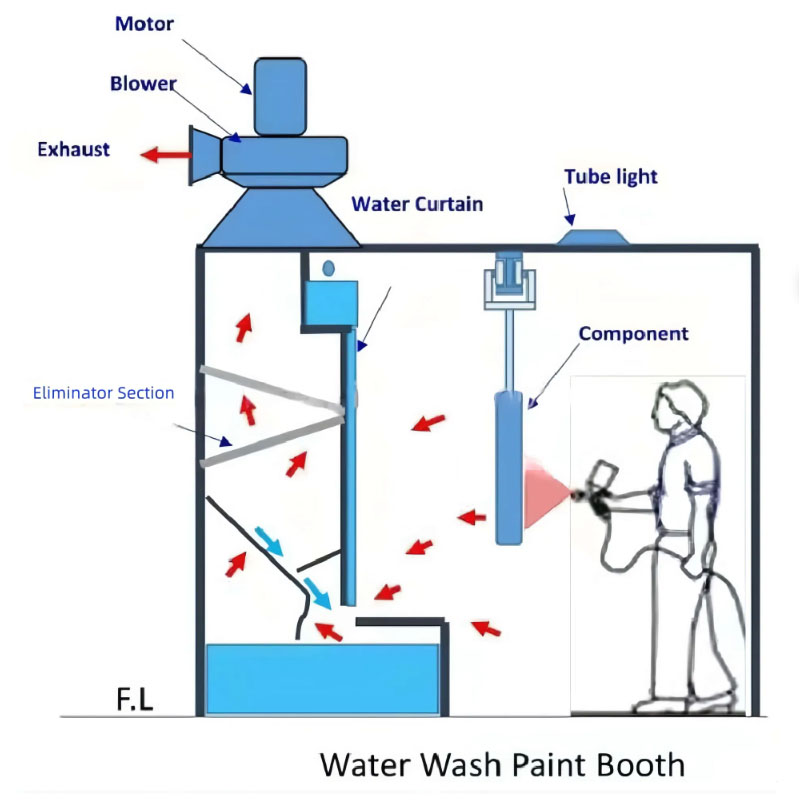

The paint mist-containing waste gas enters the bottom of the tower under the action of a fan. It then rises evenly through the air distribution device. Multiple spray layers inside the tower convert circulating water into a dense water curtain at an angle of 60–120°.
The paint mist particles collide with these liquid droplets, get adsorbed and agglomerated, before settling to the bottom of the tank along with the water flow.

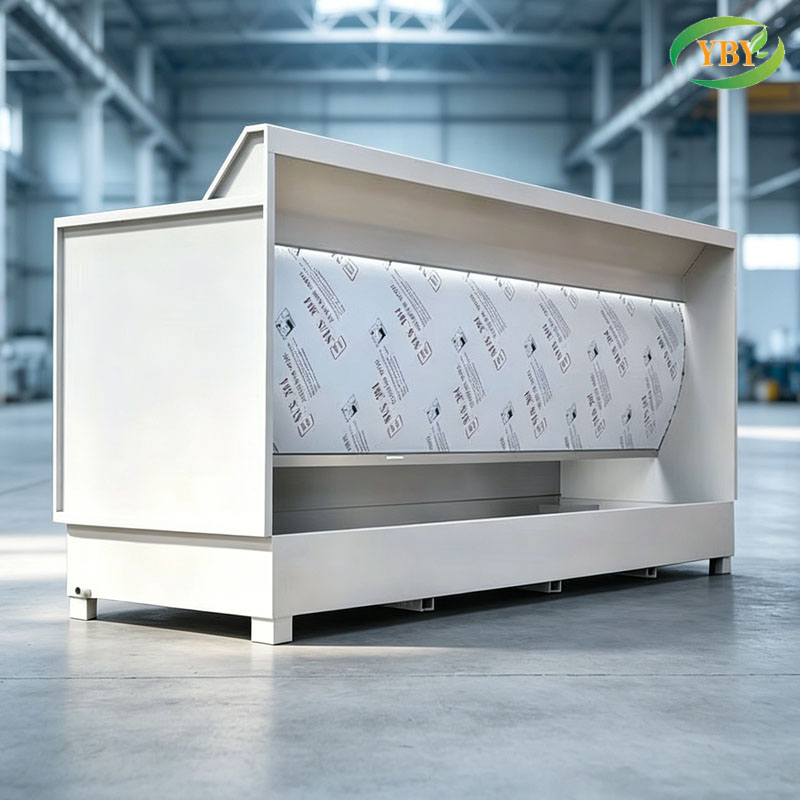

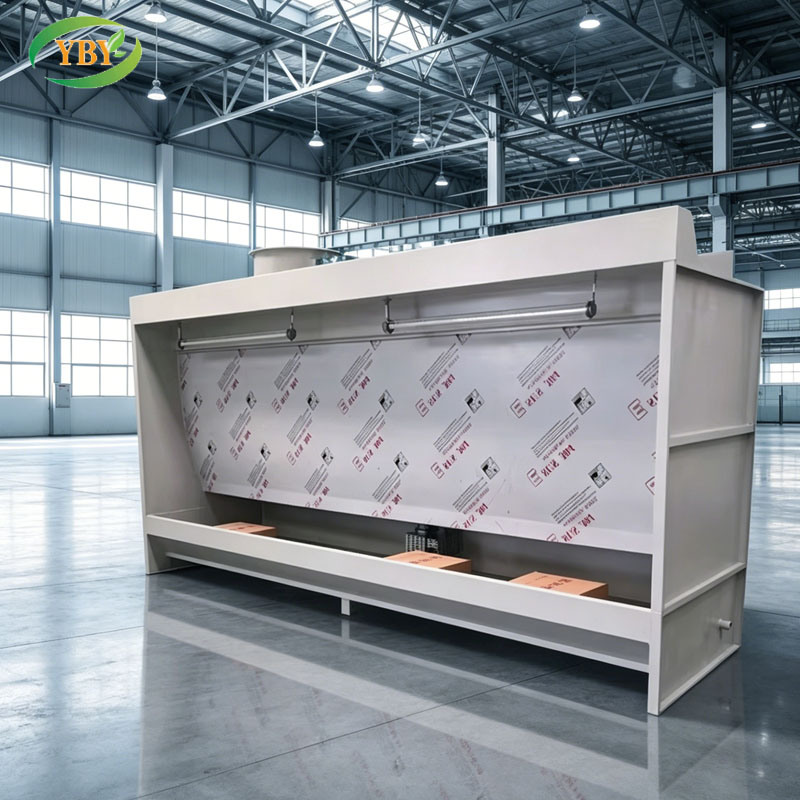

Typical structure of water curtain cabinets
Including the tower body, spray system, demisting layer, circulating water tank, and wastewater discharge system
Tower body: Mostly made of PP, fiberglass, or stainless steel material, with long corrosion resistance life
Spraying system: Accompanied by spiral/eddy nozzles, covering the entire tower cross-section
Customized adaptation: Can be upgraded and modified according to industry scenarios
Selection Guide for Spraying Equipment for Water Curtain Cabinets
Device Type
Applicable scenarios
Advantage
Air spraying
Airless spraying
Electrostatic spraying
Low-pressure spraying
Automatic spraying
Small and medium-sized furniture, indoor decoration
Large steel structure, building exterior wall
Metal products, complex parts
Fine crafts, high environmental protection requirement scenarios
Large-scale assembly line operations
High-quality surface coating, simple operation
Fast spray speed, strong adaptability to high viscosity coatings
High coating utilization rate, uniform coating
Reduce overspray and rebound
Good spray consistency, high efficiency

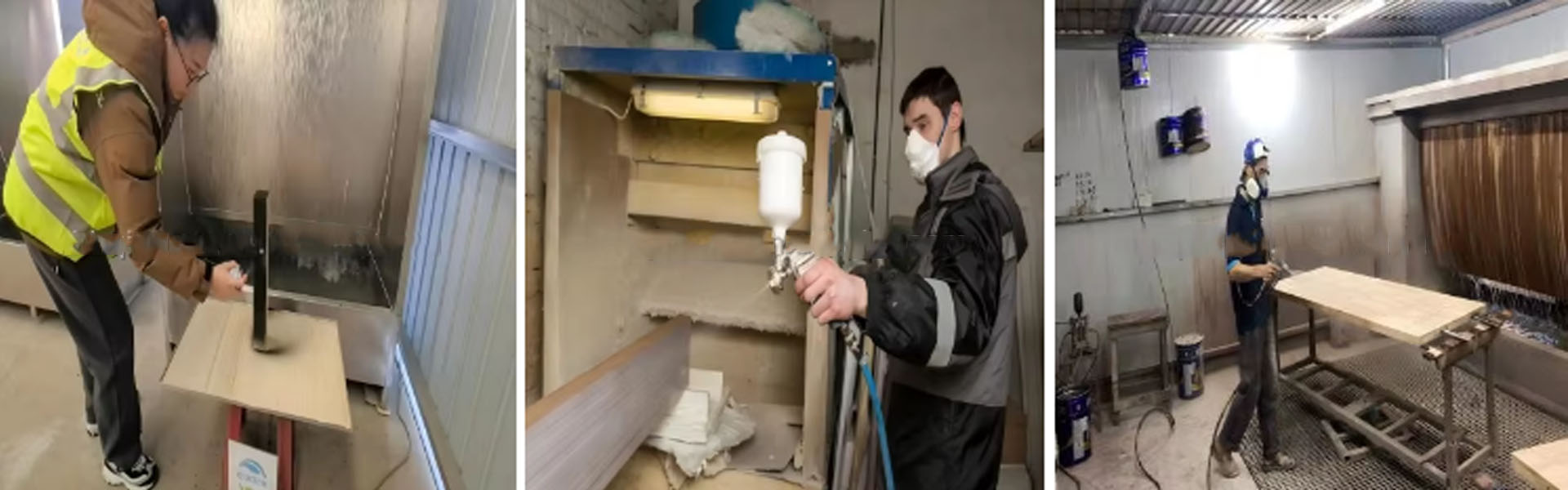

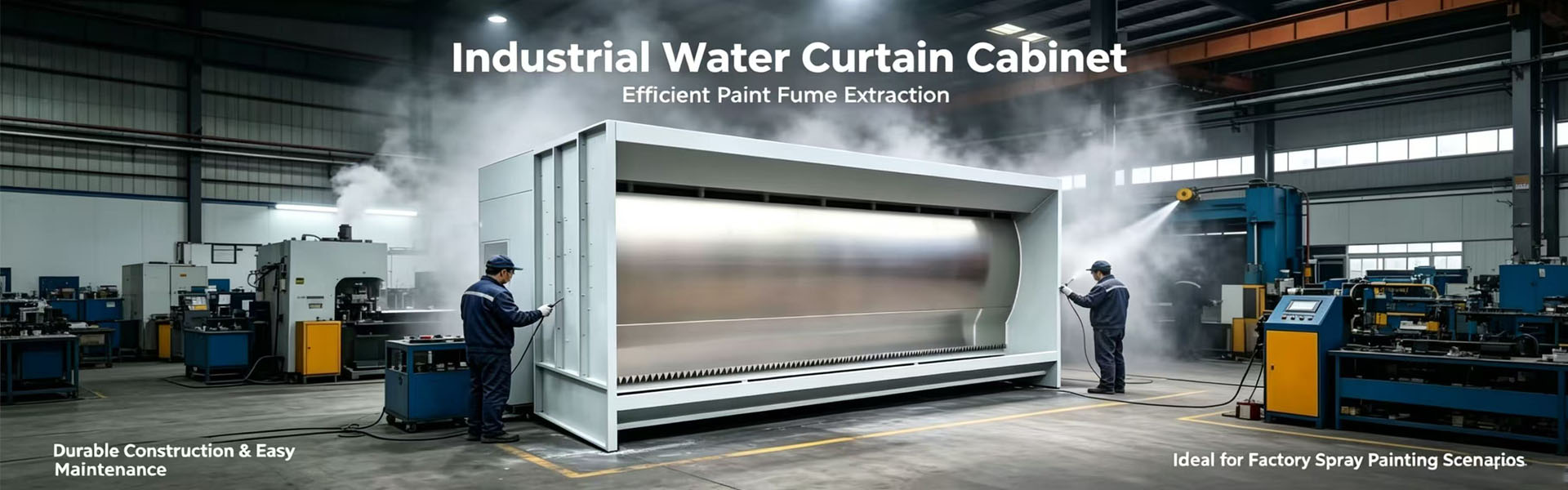

Applicable operating conditions for Water Spray Booth
Metal product processing, automotive manufacturing, machinery manufacturing, office furniture manufacturing, and other industries all involve painting processes in their production techniques, as painting determines the appearance and weather resistance of the products.
However, this process can cause relatively severe air pollution. In China, mechanical product painting typically uses solvent-based coatings, which produce large amounts of paint mist and exhaust gases such as toluene, xylene, solvent gasoline, alcohols, and esters during the painting process.
The direct emission of these pollutants not only contaminates the atmospheric environment but also poses a threat to human health. Therefore, finding solutions to the exhaust gases generated by the painting industry has become extremely urgent.
Operation specifications for Water Curtain cabinets
(1) Pre-operation Check
Ensure proper ventilation in the work environment and no abnormalhazards
Check if electrical circuits and equipment are in good condition; reportand resolve any issues before proceedingButter can be applied to the fan blades for easier subsequent cleaningof the attached paint
(II) Operation Procedure
Start the water supply system and confirm that the water curtain panelis forming a water curtain normallyStart the exhaust system and adjust the appropriate air volumeStart spraying operations, ensuring the equipment is functioningproperly
(III) Operation Precautions
The water level in the pool should not be too high to avoid cloggingthe pump
The pump is strictly prohibited from running dry. If the water cannotbe pumped, the power supply must be cut off immediatelyOperators must wear protective masks and gloves, and take healthprecautions
Explosion-proof water curtain cabinets require wearing anti-staticclothing and gloves, and Prohibited l using open flames
