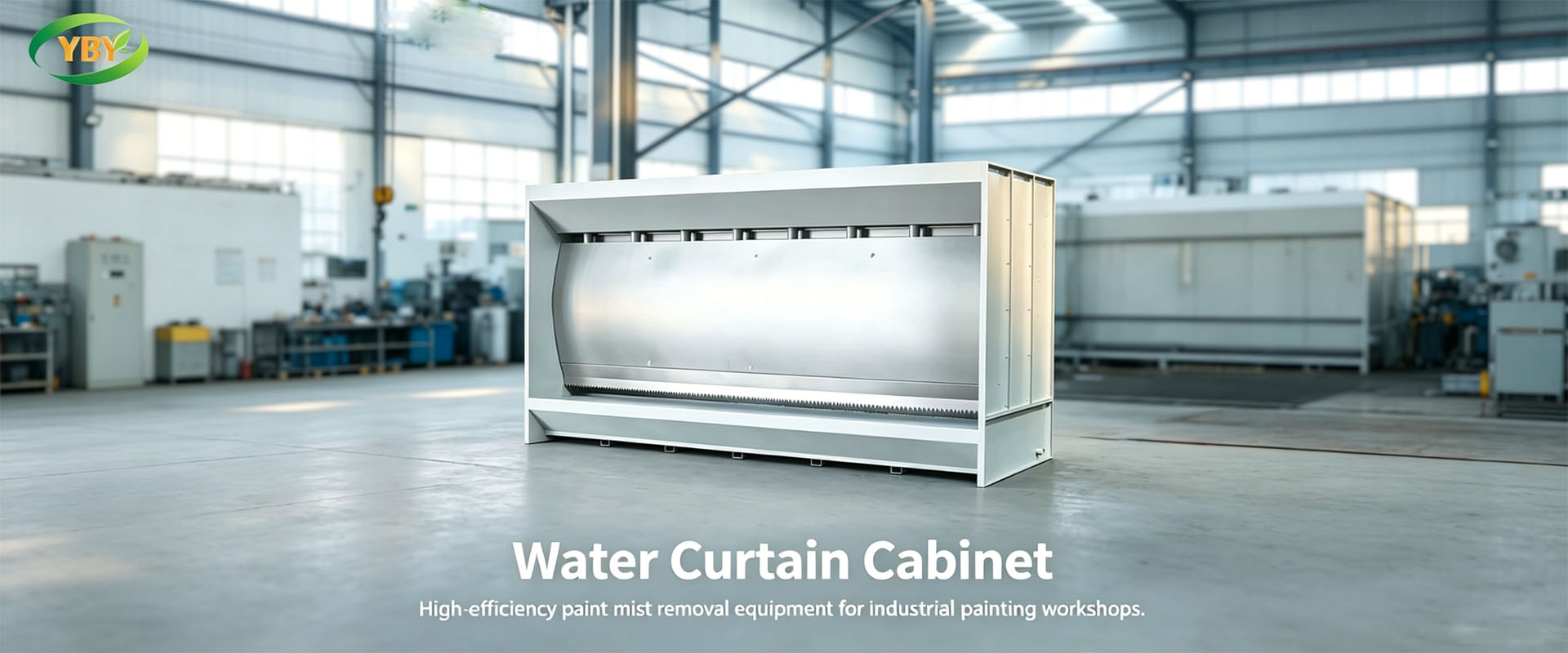

Industrial water curtain cabinet, spray paint and grinding dust filtration, 1-year warranty
Industrial water curtain cabinet:
(also known as water curtain cabinets or washable spray paint cabinets) are environmental protection equipment mainly used in painting assembly line workshops across various industries to treat paint mist exhaust gases. It captures paint mist particles generated during the painting process by using flowing water curtains or water curtains, thereby purifying the painting environment, protecting the health of operators, and improving the surface finish of the workpiece.
Industrial water curtain cabinet working Principle:
The core of the water curtain cabinet is using water to separate and purify pollutants from the air.
The basic workflow is as follows:Water flow forming a curtain: The circulating water pump draws water from the sink to the upper tank, causing it to overflow onto the curtain panel, forming a waterfall-shaped curtain on the inner wall of the cabinet.Negative pressure adsorption: Under the pull of the exhaust fan, air containing paint mist flows toward the water curtain.
Some of the paint mist directly contacts the water film on the curtain panel and is adsorbed; Another part is washed away as it passes through the flowing water curtain.
Deep cleaning and settling: Residual paint mist passes through the washing zone and wet zone, causing strong mixing and collision with water, eventually condensing into dust particles that fall into the bottom reservoir.
Air-water separation discharge: After multi-layer water curtain filtration, clean air passes through the water baffle and is pumped outdoors by fans to the downstream exhaust treatment equipment.
Product composition details
Industrial water curtain cabinet structure and Composition:

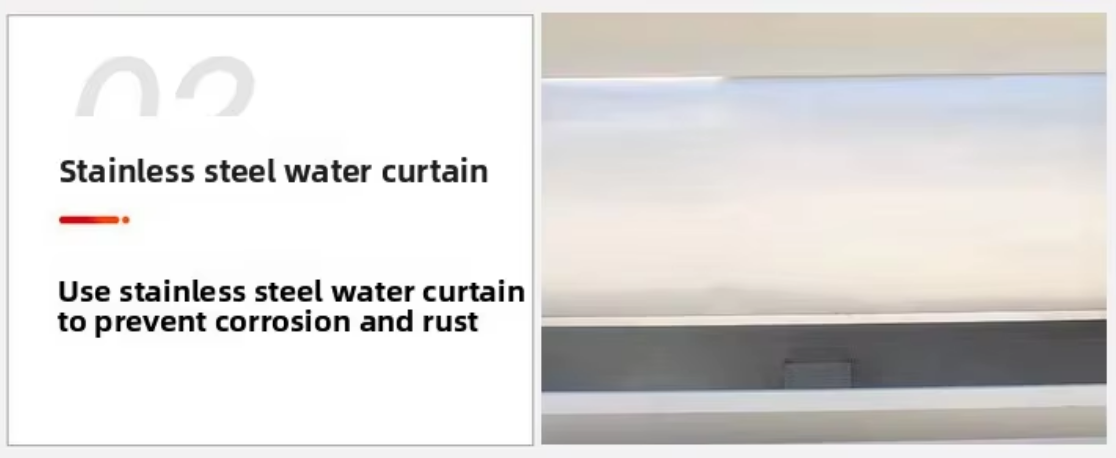

The structural design of a water curtain cabinet typically includes the following core systems:Cabinet system: includes the cabinet shell, sink, and rotating parts. Materials are mostly corrosion-resistant, high-strength galvanized sheets, cold-rolled sheets, or stainless steel sheets.

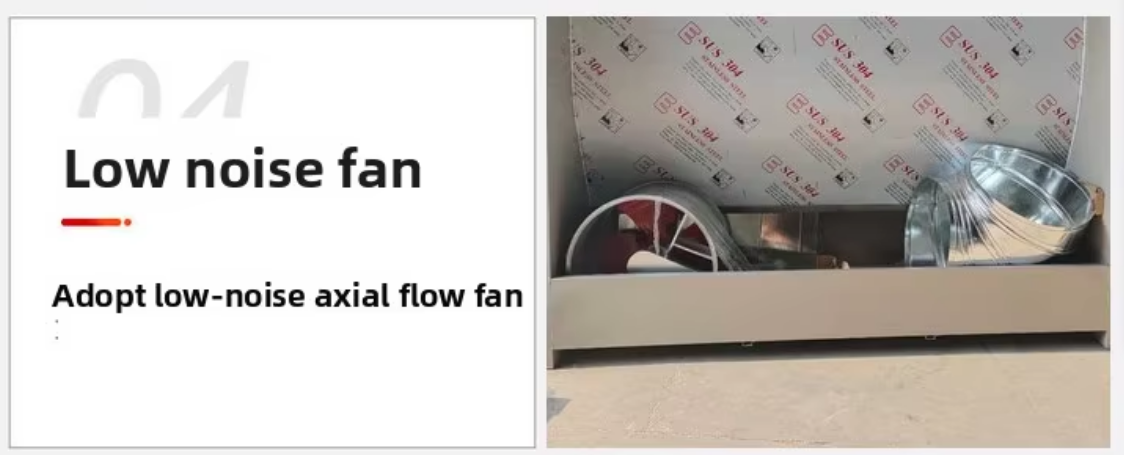

Industrial water curtain cabinet water circulation and purification systems: including bottom water tanks, circulating water pumps, water curtain panels, as well as sprinkler or cyclone devices. The sink is often equipped with a filter screen to block paint slag and debris.Exhaust system: Composed of centrifugal fans or axial flow fans, providing aerodynamic force to ensure paint mist is effectively drawn in and discharged.

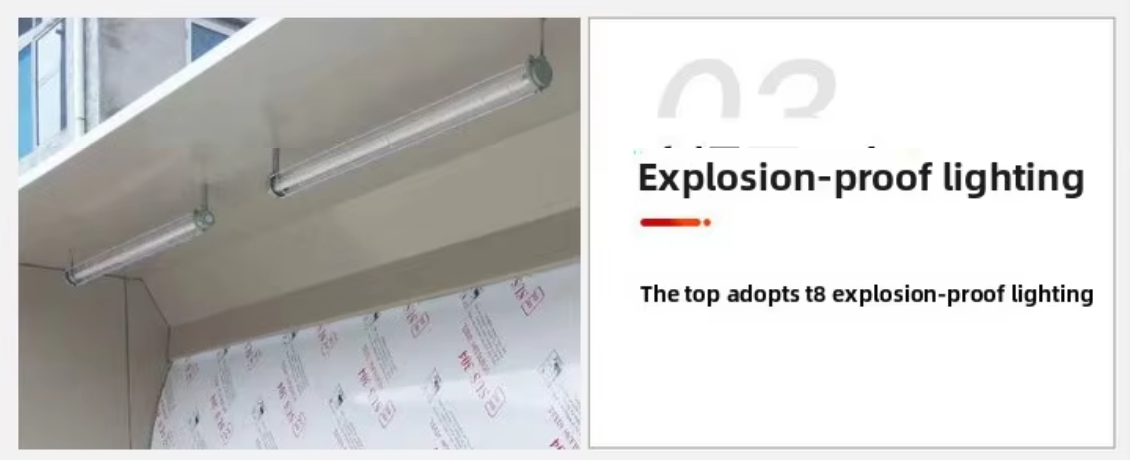

Industrial water curtain cabinet auxiliary systems: Some models are equipped with explosion-proof lighting, rotating workbenches, adjustable footrests, etc., to facilitate operation and maintenance.

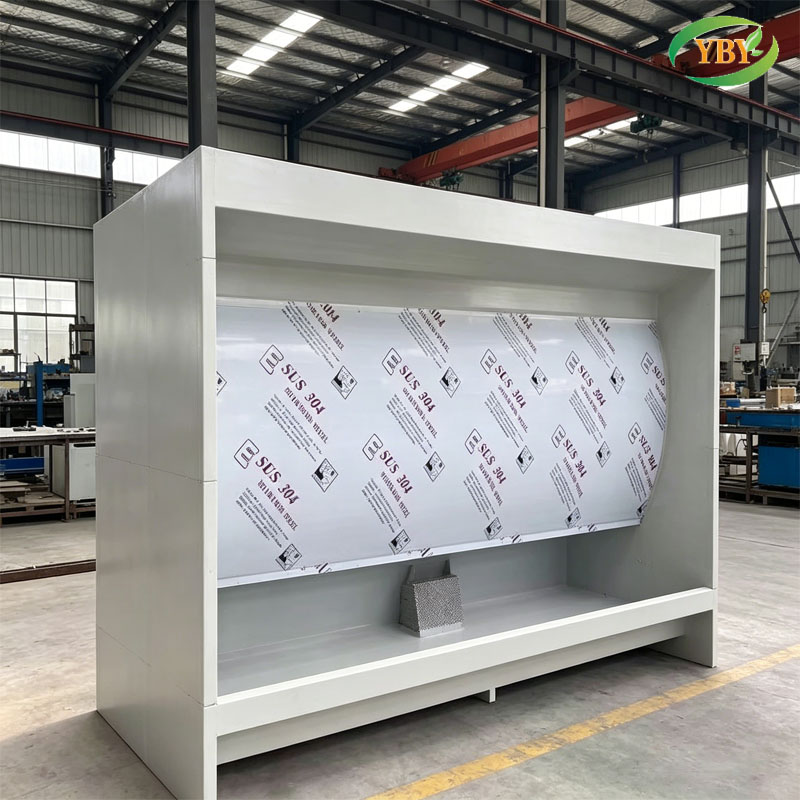

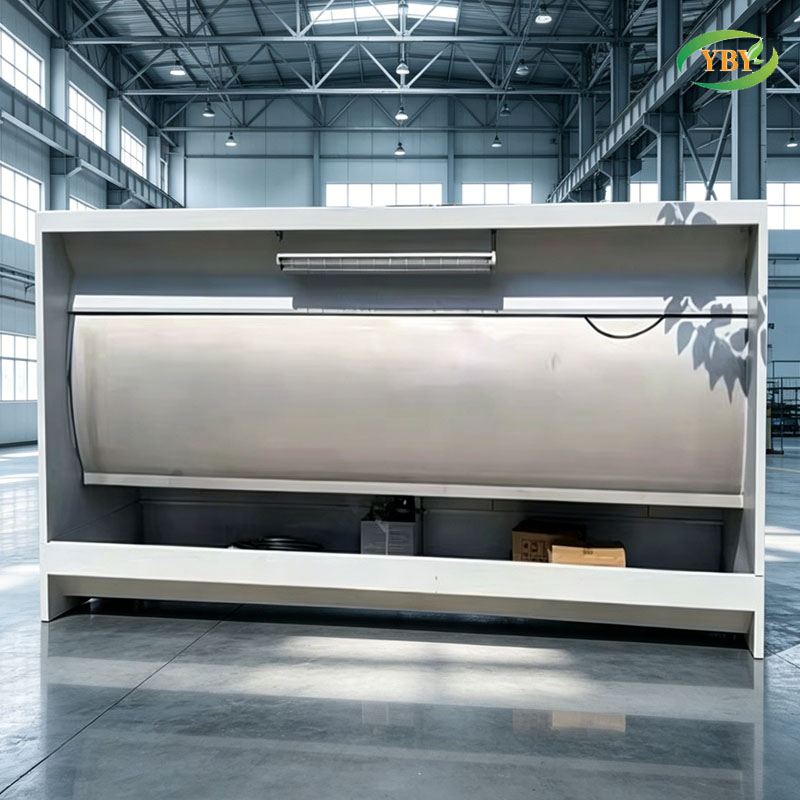

Product display
Main Features and ApplicationsHigh efficiency and safety:
Simple operation and stable operation, effectively removing over 70%~90% of paint particles.
Wide application: Widely used in surface painting operations in industries such as furniture, woodwork, toys, handicrafts, hardware, and plastics. In addition, there are also grinding dust removal water curtain cabinets specifically designed for grinding operations.
Limitations: It should be noted that water curtain cabinets mainly handle resin components (solid particles) in paint mist. For solvent vapors that are poorly soluble in water, water curtain cabinets cannot completely treat them, so specialized exhaust gas treatment devices such as activated carbon adsorption are usually needed to meet environmental emission standards
