Cyclone Hybrid Spray Scrubber Tower
Full Detailed Introduction:
This Cyclone Hybrid Spray Scrubber Tower is a multi-stage industrial waste gas purification device made of full 304 stainless steel, with strong acid and alkali corrosion resistance.
Cyclone Hybrid Spray Scrubber Tower It combines cyclone rotational separation and spray washing dual purification technology, efficiently capturing dust, acid mist, alkali fume, paint particles and soluble odor gas.
The split open door design brings convenient internal inspection and maintenance. It is widely applied in electroplating, chemical, paint spraying, printing and hardware polishing workshops, fully complying with EU CE environmental emission standards.
Cyclone Hybrid Spray Scrubber Tower whole cabinet is made of thickened 304 stainless steel, anti-rust, anti-corrosion, suitable for long-term operation under corrosive waste gas environment, long service life.
First cyclone separation removes large granular pollutants; multi-layer atomizing spray absorbs tiny harmful gas molecules, purification efficiency reaches over 99%.
Cyclone Hybrid Spray Scrubber Tower multi-group openable side doors for quick internal cleaning, nozzle replacement and routine maintenance without dismounting the whole machine.
Equipped with supporting circulating water pump and water tank, water can be recycled after precipitation, low water consumption and energy saving.
Cyclone Hybrid Spray Scrubber Tower customizable air volume modules according to factory exhaust demand, flexible installation, no complex pipeline layout required.
Product Highlights:
High-efficiency cyclone hybrid scrubber: advanced filtration technology for industrial air pollution control.
1.Compact design: effectively manages gas emissions and odor control in chemical plants.
2.Stainless steel structure: Durable and corrosion-resistant, suitable for long-term use.
3.Low energy consumption: economical operation, suitable for industrial applications.
4.Cyclone Hybrid Spray Scrubber Tower customizable solutions: tailored to meet specific industry needs.Easy to maintain, equipped with convenient inspection ports and nozzle designs that minimize clogging.
5.Complies with international VOC and particulate emission control environmental standards
6.Durable structures made from corrosion-resistant materials offer low maintenance costs and long service life
7.Suitable for multifunctional industrial applications in chemical, pharmaceutical, metal, and coating industriesIntelligent IoT monitoring system for real-time performance tracking and automated control
8.Cyclone Hybrid Spray Scrubber Tower widely used in chemical, pharmaceutical, metalworking, and coating industries, it is an effective solution.
Product features

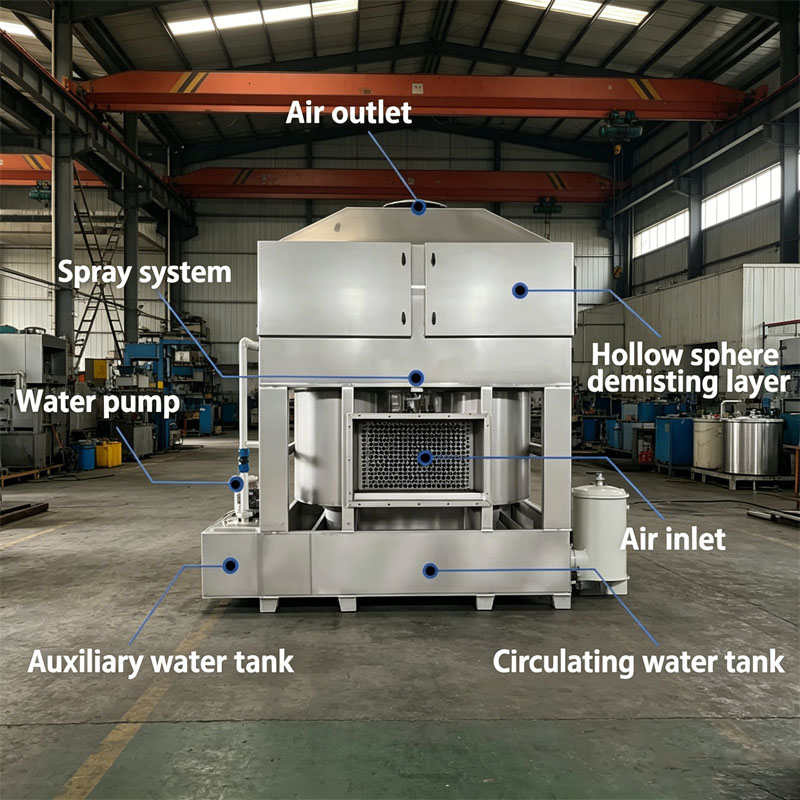

Working Principle：

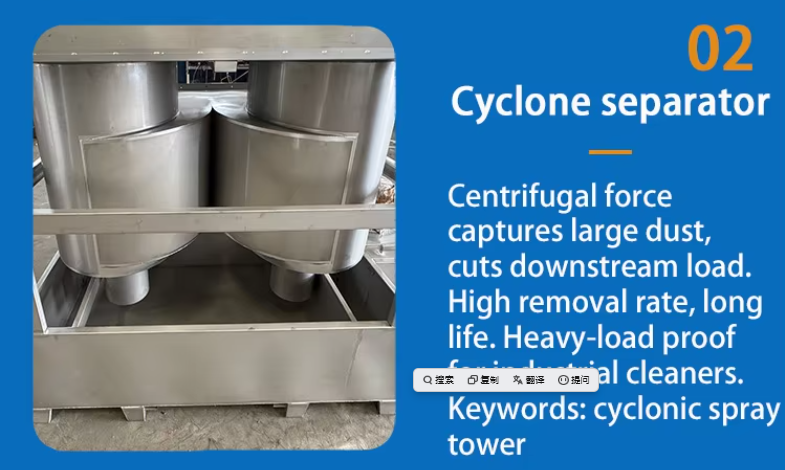

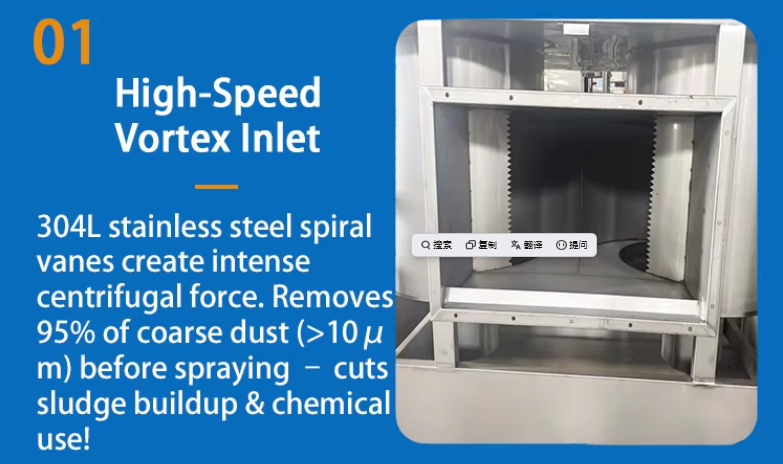

1. Polluted waste gas enters the tower body through the air inlet at a certain wind speed and flows into the cyclone separation chamber first. Under centrifugal force, large solid particles and heavy oil mist are thrown onto the inner wall of the cyclone cylinder, then fall into the bottom water tank by gravity.
2.The remaining fine gas flows upward to the multi-layer spray area; the circulating pump delivers water to atomizing nozzles to form dense water mist.
3.Harmful gas fully contacts with water mist, soluble acid, alkali and odor substances are absorbed and dissolved into the circulating water.
4.After spray washing, the gas passes through a dehydration baffling layer to remove water mist entrained in clean air, avoiding water drop outflow from the exhaust outlet.Purified clean gas is discharged from the top air outlet to the atmosphere, meeting industrial environmental protection standards.
5.The circulating water with pollutants flows back to the bottom sedimentation tank; sediment accumulates at the bottom and can be cleaned regularly, and water can be reused after adding neutralizing liquid.
Application scenarios
Electroplating pickling workshop, chemical plant waste acid gas treatment, paint spray booth paint mist removal, printing ink odor purification, metal polishing dust and acid mist treatment, hardware surface oxidation waste gas disposal.

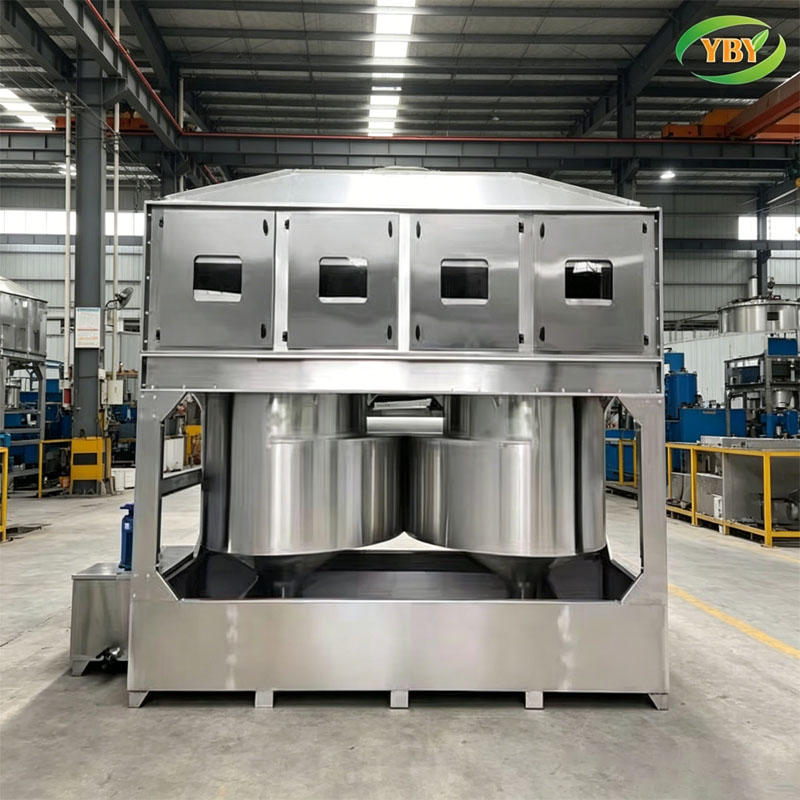

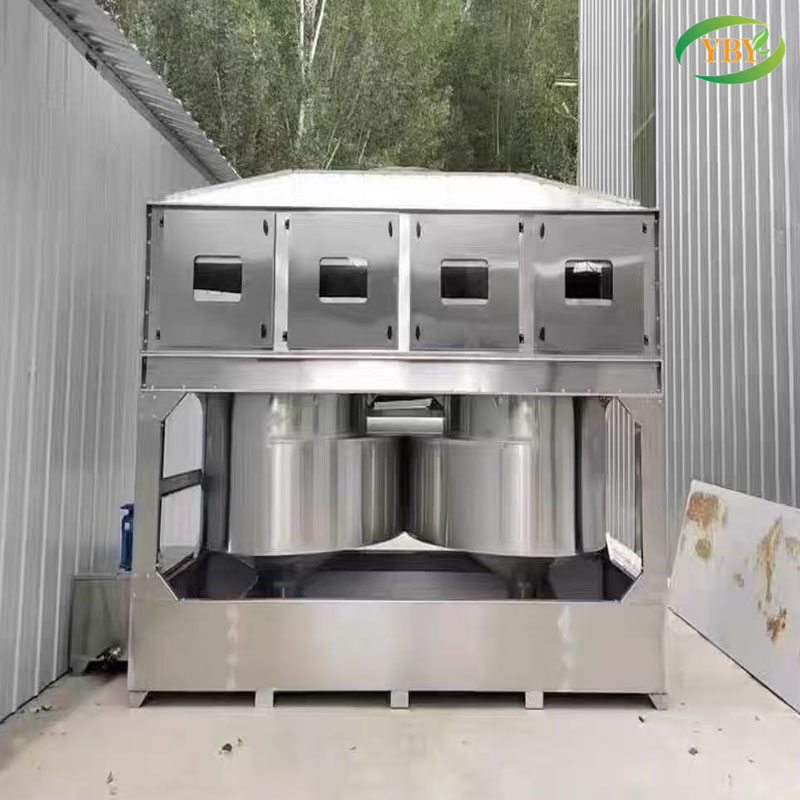

Product photos
