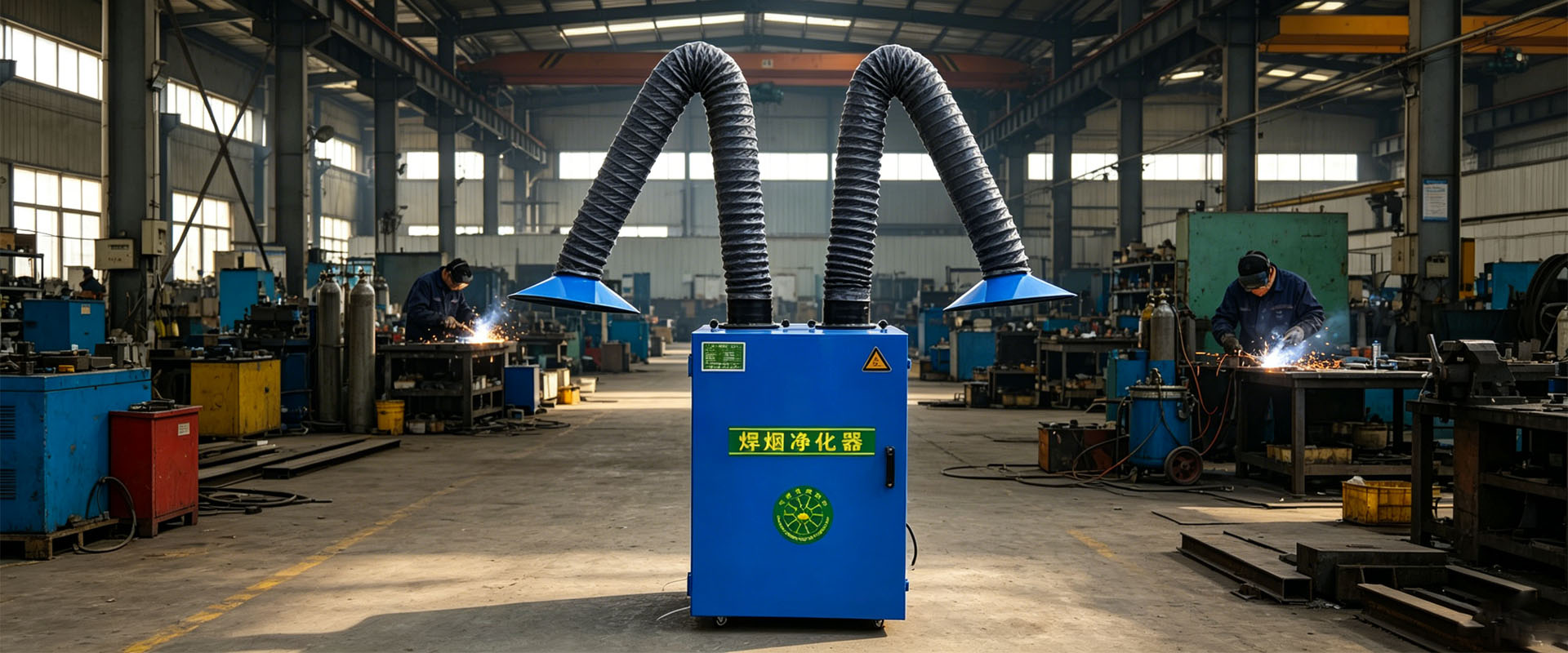

Portable Double Arms Welding Fume Extractor is an industrial environmental protection equipment, usually used in welding, polishing, cutting, polishing and other processes to collect and purify the welding fume generated to protect the environment and the health of workers.
Welding fume purifiers usually consist of a vacuum arm, fan, filtration system, and cleaning device.
The suction arm is used to capture the soot generated during the welding process; the fan generates negative pressure to draw the smoke into the purifier;
The filtration system generally includes multiple levels such as pre-filtration, main filtration, and activated carbon filtration to capture and adsorb soot particles and harmful gases of different particle sizes;
The cleaning device regularly cleans the filtration system to ensure the continuous and efficient operation of the purifier

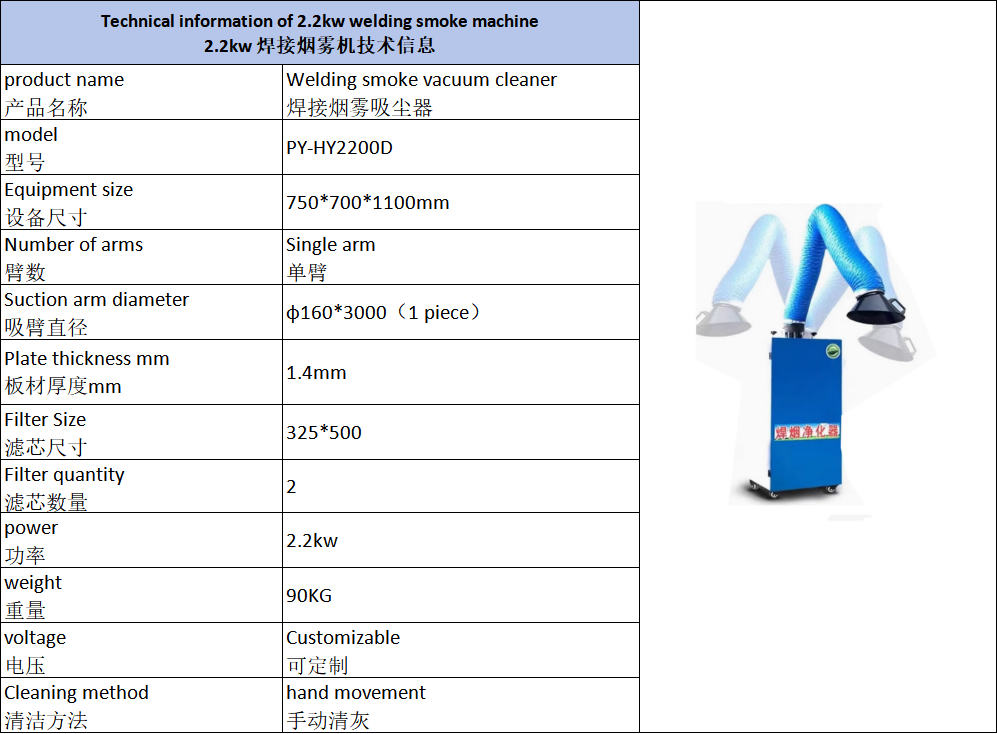

Product specifications and dimensions
Portable Double Arms Welding Fume Extractor The working principle of the welding fume purifier is to use a fan to generate a negative pressure airflow that draws fine particles and harmful gases generated during welding into the equipment, then intercepts them layer by layer through a multi-stage filtration system, ultimately expelling clean air.
Portable Double Arms Welding Fume Extractor Specifically, the working principle of a welding fume purifier includes the following steps:
Dust Suction: The fan generates negative pressure to draw smoke and dust generated during welding into the equipment.Filtration: When smoke and dust enter the filtration stage, the filter element plays a key role.
Portable Double Arms Welding Fume Extractor The materials and structures of filter cartridges vary, with common types including filter paper and membrane filter media. Their surfaces have many tiny pores; when dust passes through, larger particles are directly intercepted on the filter cartridge surface, while finer particles are trapped under the filter's deep filtration action.
Portable Double Arms Welding Fume Extractor A multi-stage filtration structure is typically used, including primary filter, intermediate-efficiency filter, and high-efficiency filter, which sequentially intercept and remove particles of different sizes from welding fumes.
Portable Double Arms Welding Fume Extractor Some high-end models are also equipped with advanced technologies such as electrostatic precipitation or activated carbon adsorption to further improve purification efficiency and the ability to remove harmful gases.
Portable Double Arms Welding Fume Extractor Dust removal: After filtration by the filter cartridge, particles originally mixed in the air are intercepted, and the purified air is discharged according to standards.Welding fume purifiers are usually equipped with casters and foot cups to facilitate equipment movement and positioning;
Portable Double Arms Welding Fume Extractor Uses high-precision welding fume filter media, offering high filtration accuracy and long service life for consumables; The equipment is equipped with a built-in auto-artery flushing cleaning device;
Using a universal suction arm, it can flexibly reach the suction point at any position in three-dimensional space; Equipped with special shock and noise reduction treatments to ensure the equipment is environmentally friendly in terms of noise;
Portable Double Arms Welding Fume Extractor Pollution sources can be treated via mobile standalone machines or centralized multi-station treatment. Additionally, some models integrate an activated carbon layer to collaboratively treat volatile odors.
Component composition
Portable Double Arms Welding Fume Extractor The component names and functions of the welding fume purifier are as follows:

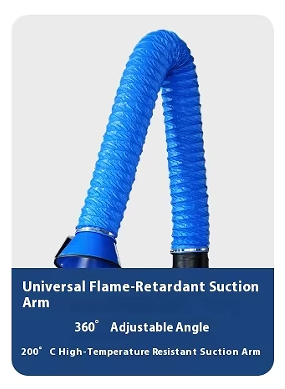

1. Universal suction arm: Can extract smoke from the source of smoke, improving dust collection rate and ensuring the health of operators.
2. Dust-Ash Drawer Combination: Used to collect filtered dust and particles, making cleaning and maintenance easier.
3. Sound-absorbing cotton: Reduces noise during equipment operation, making the purifier run more quietly.

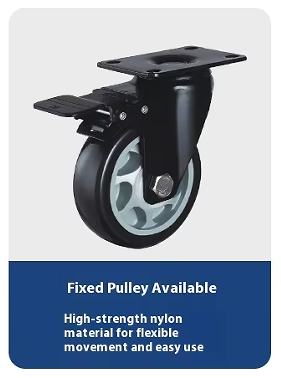

4. New Korean-style casters with brakes: Convenient for easy movement and positioning of the equipment.

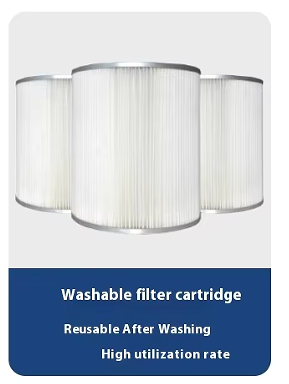

5. Filter cartridge: Long service life, can absorb dust particles smaller than 0.3μm, and also performs well on wet and sticky dust.
6. Fan: The core component of the welding fume purifier, which extracts smoke and harmful gases generated during welding and delivers them to subsequent processing stages.

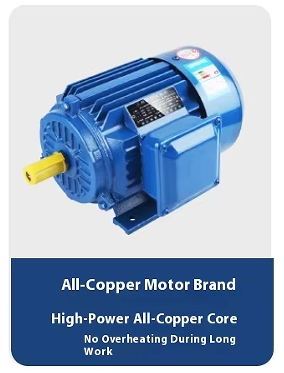

7. Motor: Works in conjunction with the fan, uses an overload prevention circuit to prevent motor burnout, high reliability, and stable performance.
8. Electric Control Box: Built-in centralized PLC control method, simple structure, easy to operate.
9. Flame arrester: Sparks are blocked through the flame arrester, preventing fire hazards.
10. Washable filter: Captures and cleans smoke and dust particles through a water circulation system, making it both environmentally friendly and efficient, reducing equipment
maintenance frequency.
11. Telescopic air duct: An important channel connecting the welding torch and purifier, highly flexible, reducing resistance caused by bending, and ensuring smooth dust and smoke transmission.
12. Mobile Collector: Gives the welding fume purifier extremely high flexibility, with a universal wheel at the bottom to make it easy for workers to move the equipment.
13. Activated carbon filter: Activated carbon filter: Further purifies the clean air, removing harmful substances
