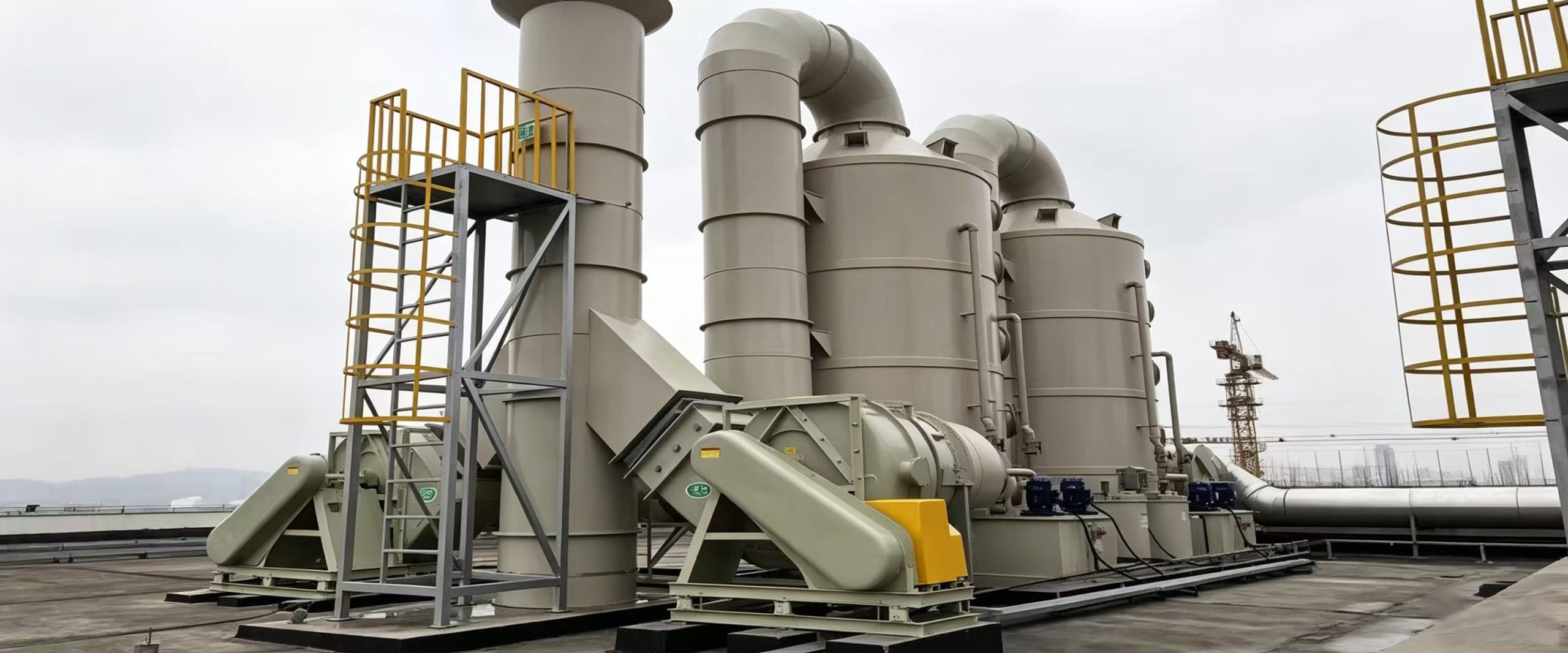

Corrosion-resistant washing tower

The PP Corrosion-resistant washing tower spray tower (also known as acid mist washing tower) is the most cost-effective waste gas purification equipment for factories dealing with strong acid exhaust. Made of integrated polypropylene sheet, it perfectly solves the corrosion problem caused by hydrochloric acid, sulfuric acid and hydrofluoric acid mist, which is the biggest pain point of metal purification towers.

1. Corrosion-resistant PP washing towerCore Advantages

• Superior Anti-Corrosion Performance: PP material resists almost all inorganic acid media, no rust, no leakage risk for long-term continuous operation

• Low Operation Cost: Light tower body reduces load of supporting frame; matched anti-corrosion circulating pump cuts power consumption

• Easy Customization: We adjust tower diameter, spray layers, fan power according to your actual waste gas air volume

• Stable High Purification Rate: Multi-layer countercurrent spray design, over 98% acid mist removal efficiency to meet EU environmental discharge standards

• Simple Daily Maintenance: Smooth inner wall of PP tower, not easy to accumulate scale, quick liquid tank cleaning without special tools

2. Corrosion-resistant washing towerWorking Principle

Contaminated acid waste gas enters the PP spray tower from the bottom air inlet and flows upward. Alkaline neutralizing liquid is atomized into tiny droplets and sprayed downward from multi-layer nozzles, forming full countercurrent gas-liquid contact.
Acid pollutants fully react with the absorption liquid and dissolve into circulating water. A top demister separates residual water mist, and clean exhaust gas is discharged up to standard. The liquid can recycle automatically to save chemical agent cost.

3.Corrosion-resistant washing tower Material Feature of Polypropylene (PP) Tower Body

Whole tower adopts thick PP sheet hot-melt integrated welding technology, without bolt splicing to avoid liquid leakage. Compared with 304 stainless steel tower:

• PP tower works stably under working temperature below 60℃

• Zero corrosion loss for high-concentration fluoride and chloride waste gas

• Lighter weight, lower transportation and installation cost

• Longer service life under acid working conditions

4.Corrosion-resistant washing tower Widely Applicable Scenarios

Our PP spray tower is widely matched with European and American industrial production lines:

• Electroplating & metal pickling workshops: Treat pickling waste gas containing sulfuric acid and hydrochloric acid generated in hardware surface treatment.

• Chemical reagent manufacturing plants: Purify mixed acid exhaust produced during raw material mixing and reagent synthesis.

• Hardware oxidation & surface treatment factories: Eliminate acid mist formed in anodizing and passivation processes.

• Laboratory acid waste gas collection: Small mini PP spray tower for university and chemical laboratory micro-volume acid exhaust treatment.

• Battery and new energy processing workshops: Neutralize acid waste gas generated in electrode cleaning and electrolyte preparation.

• Galvanizing and phosphating factories: Process continuous acid mist generated by large-scale assembly line operation.

5. Corrosion-resistant washing towerCustom Service Support

We provide full non-standard customization for overseas customers:

1. Air volume range: 1000m³/h ~ 100000m³/h standard models, ultra-large customized towers for group factory centralized exhaust treatment are available.

2. Support automatic chemical dosing system, liquid level monitoring device, flow adjustment valve and online pH value detection module.

3. Equip anti-corrosion PP fan or stainless steel fan as your demand, with silent fan options for workshops with strict noise limits.

4. Complete English installation drawing, operation manual and maintenance checklist supplied together with goods.

5. Remote technical guidance for equipment debugging after delivery, and English after-sales engineer online consultation within 24 hours.

6. Support different outlet direction customization of the exhaust pipe to adapt to different roof and workshop pipeline layout of overseas factories.

6. Compliance Standard

All our PP spray towers follow international industrial waste gas treatment norms, fully matching EU waste gas emission limit requirements. If you need CE certification for European market customs clearance, we can provide complete test documents and certification reports for the corresponding model. For customers exporting to Southeast Asia, we can issue product material test reports to prove the PP raw material meets environmental safety standards. Every set of equipment will pass air tightness and water tightness inspection before delivery to avoid leakage problems during customer use.
