Cyclone Description A cyclone separator is an efficient and energy-saving dry gas-solid separation equipment ，Cyclone dust collector utilizes the centrifugal force generated by the high-speed rotation of dusty gas inside the cylinder to separate dust from the gas.Industrial dust collector core advantages include no moving parts, stable operation, simple maintenance, and no secondary pollution

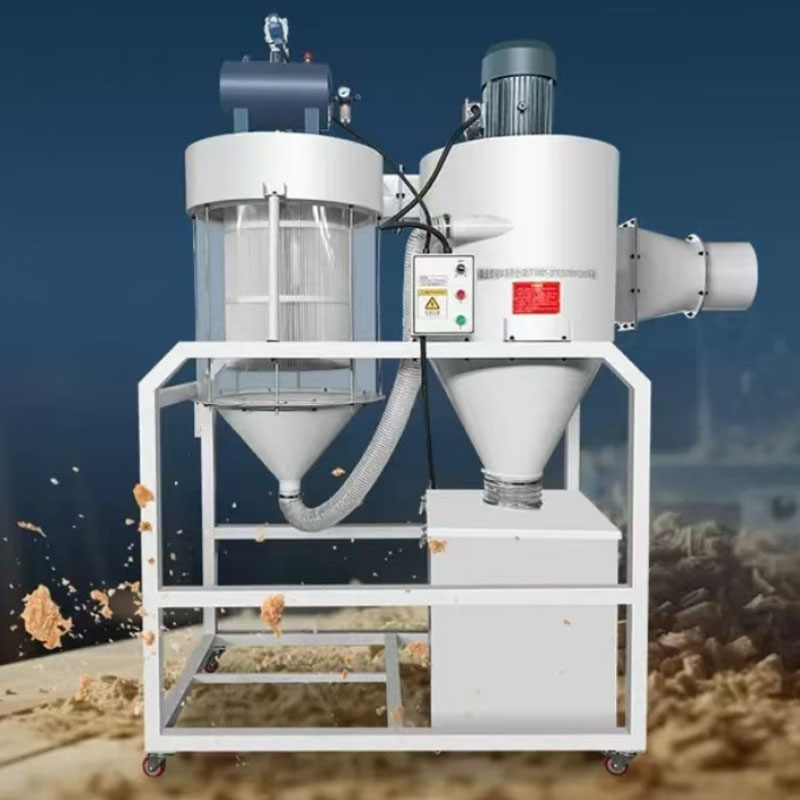

Pulse whirlwind dust collector Equipment Overview
Cyclone Dust Collector Introduction
cyclone dust collector How it works：
The industrial dust collector combines the advantages of cyclone dust collectors and filter bag dust collectors. By integrating cyclone separation technology and filter core filtration, it achieves high-efficiency dust removal.
Pulse whirlwind dust collector The dusty gas first passes through the cyclone separator for preliminary dust removal, then enters the filter core filtration area, where dust is trapped on the surface of the filter bags. The pulse blow-off system periodically cleans the filter cores to ensure dust removal efficiency.
Scyclone dust collector tructural composition：
The pulse cyclone dust collector mainly includes a cyclone separator, a filter core filtration area, a pulse blowing system, and a dust discharge system. The cyclone separator is used for preliminary dust removal, the filter core filtration area is responsible for fine filtration, the pulse blowing system is used to clean the filter core, and Pulse whirlwind dust collector the dust discharge system is used to collect dust.
cyclone dust collector Technical advantages：
Pulse whirlwind dust collectors have the advantages of simple structure, low cost, high-temperature and high-pressure resistance, large air volume processing capacity, and strong adaptability
cyclone dust collector Application scenarios：
Pulse cyclone dust collectors are widely used in industries such as mining and metallurgy, construction materials, chemical engineering, and woodworking. In the woodworking industry, they can effectively handle wood chips and dust, improving workshop environments. Pulse whirlwind dust collector In the chemical engineering industry, they can process high humidity and corrosive gases, protecting equipment.
Advantages of Whirlwind Pulse Dust Collector
Pulse whirlwind dust collectorThickened board safety
Dust collectors Quick and efficient suction dust removal and meet OSHA workplace safety standards.
Cyclone dust collector Pulsed powerful blowing
Cyclone separator Copper motor
Cyclone dust collectors are used in the cement industry
Cyclone separator Application scenarios: Raw material grinding, grinding mills, dust treatment at the tail of rotary kilns
Cyclone separator Working conditions features: High dust concentration, high temperature, wide dust particle size distribution
Cyclone dust collector Key selection points: Often selects large-scale cyclone dust collectors that are high-temperature resistant and wear-resistant, mostly used as pre-treatment equipment in series with baghouse filters
Cyclone dust collector Advantage: Can remove most coarse particulate dust, reducing the load on subsequent high-efficiency dust removal equipment

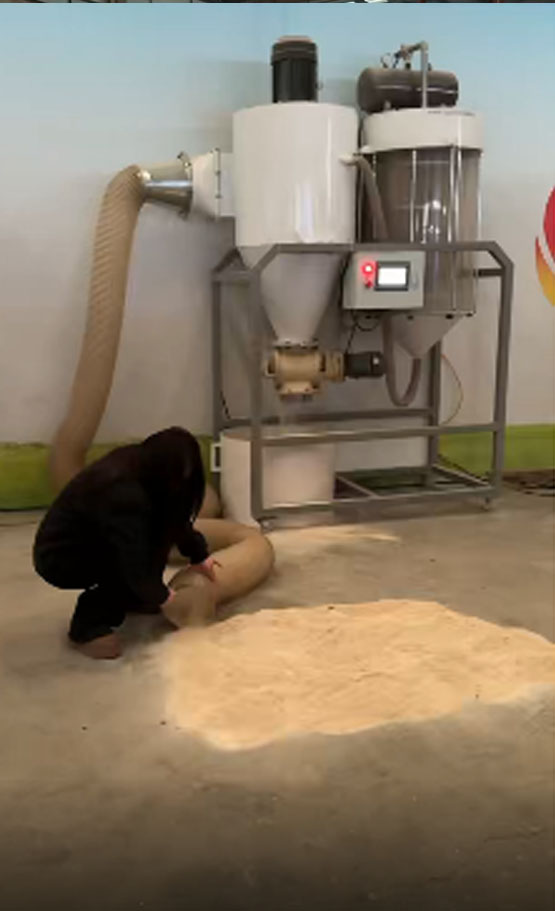

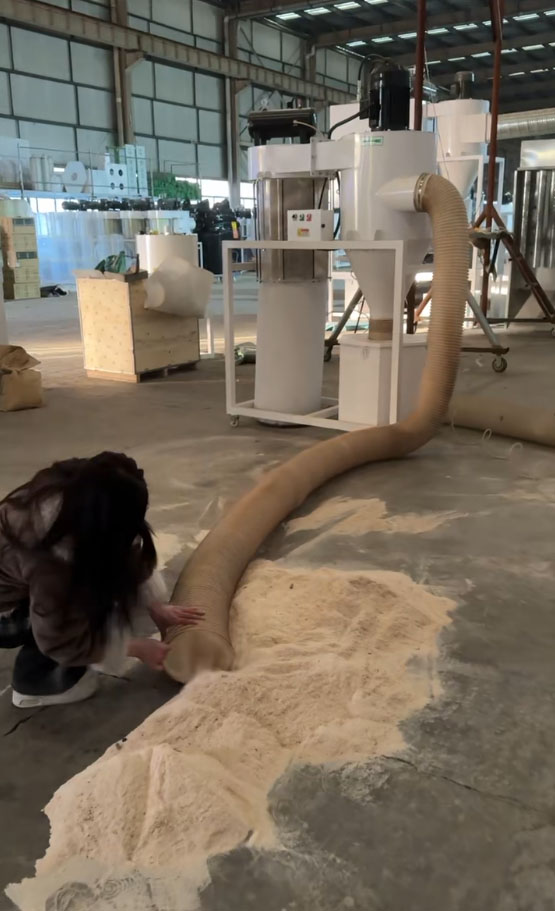

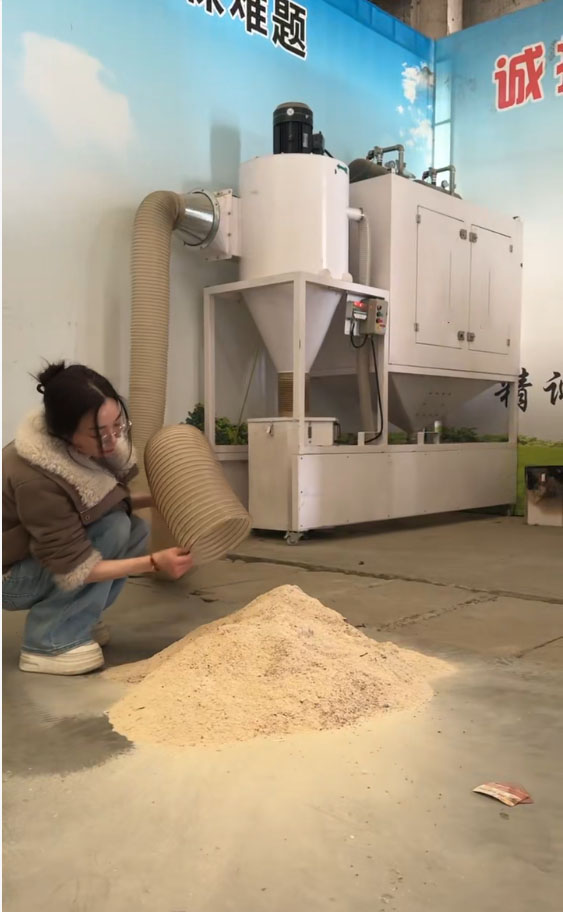

Cyclone dust collectors are used in the woodworking industry
Cyclone separator Application scenarios: Wood processing, dust control in furniture factories Cyclone dust collector Working conditions characteristics: Dust is wood fiber, with small particle size, flammable, Cyclone separator contains a certain humidity Cyclone dust collector Key selection points: Moisture-proof design should be considered, equipped with spark detection and fire extinguishing devices to prevent dust combustion Cyclone dust collector Advantage: Can effectively removemost wood chips and dust, protect worker health, andreduce fire risk
Cyclone dust collector is used in the food processing industry
Cyclone separator Application scenarios: Grain cleaning, crushing process dust recovery Cyclone dust collector Working conditions characteristics: The dust is organic dust from grains, which is flammable and has high hygiene requirements Cyclone dust collector Key selection points: The equipment needs to be easy to clean, with no dead corners, equipped with explosion-proof measures to prevent dust explosions Cyclone dust collector Advantages: Can recycle grain dust, reduce material loss, and improve workshop hygiene environment
Cyclone dust collector installation and usage
1.Cyclone dust collector Installation Requirements
industrial dust collector Level Base: The equipment base must have a flatness ≤1mm/m to avoid vibration during operation.
Cyclone Description Piping Connection: Inlet and outlet air pipes must use flexible connections (such as canvas, rubber) to reduce vibration transmission; the number of pipe elbows must be ≤2 to reduce resistance.
Cyclone Description Ash discharge system: The bottom of the ash hopper must be equipped with a star discharge valve or a screw conveyor to ensure smooth ash discharge and prevent blockages.
Cyclone Description Sealing treatment: All flange connections must be fitted with sealing gaskets to prevent air leakage from affecting separation efficiency.
2.Cyclone dust collector Operation steps
Cyclone Description Pre-start inspection: Ensure the ash hopper is free of ash, the discharge valve is closed, the pipeline is unobstructed, and the motor rotation is correct.
Cyclone Description Start the equipment: First start the fan, then open the ash discharge valve (if continuous ash discharge is required), and gradually adjust the airflow to the design value.
Cyclone Description Operation monitoring: Regularly check the pressure difference at the inlet and outlet (normal range 500-1500Pa), motor current, and vibration conditions to ensure stable operation.
Cyclone Description Shutdown operation: First close the ash discharge valve and stop ash discharge; after the gas in the fan is exhausted, turn off the fan power.
