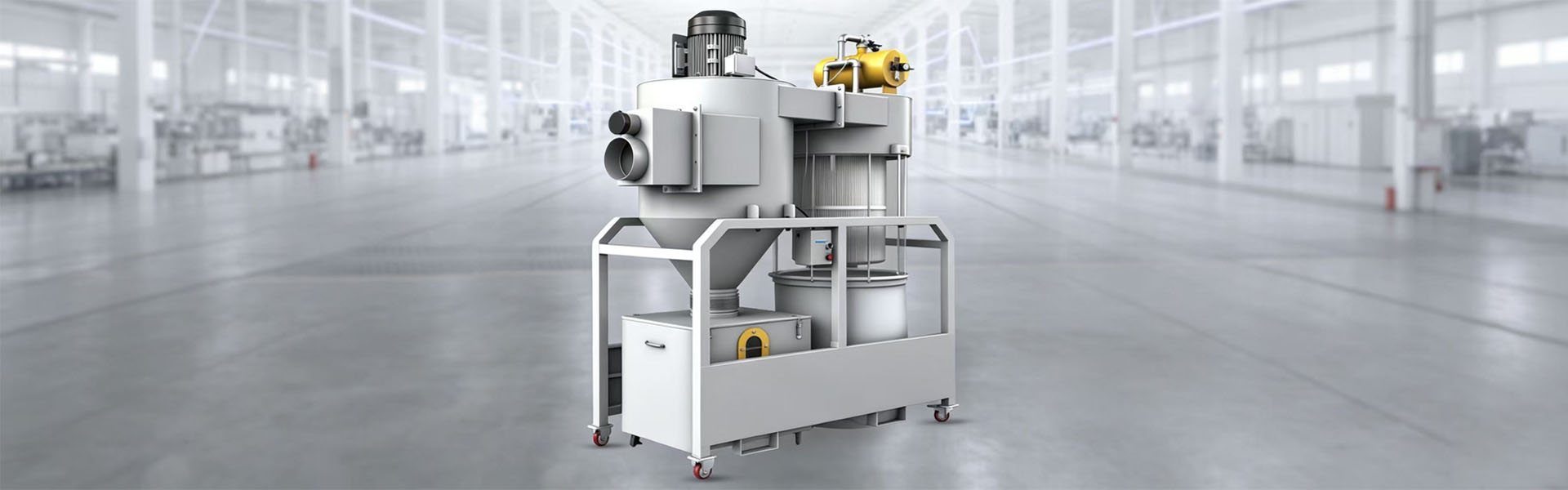

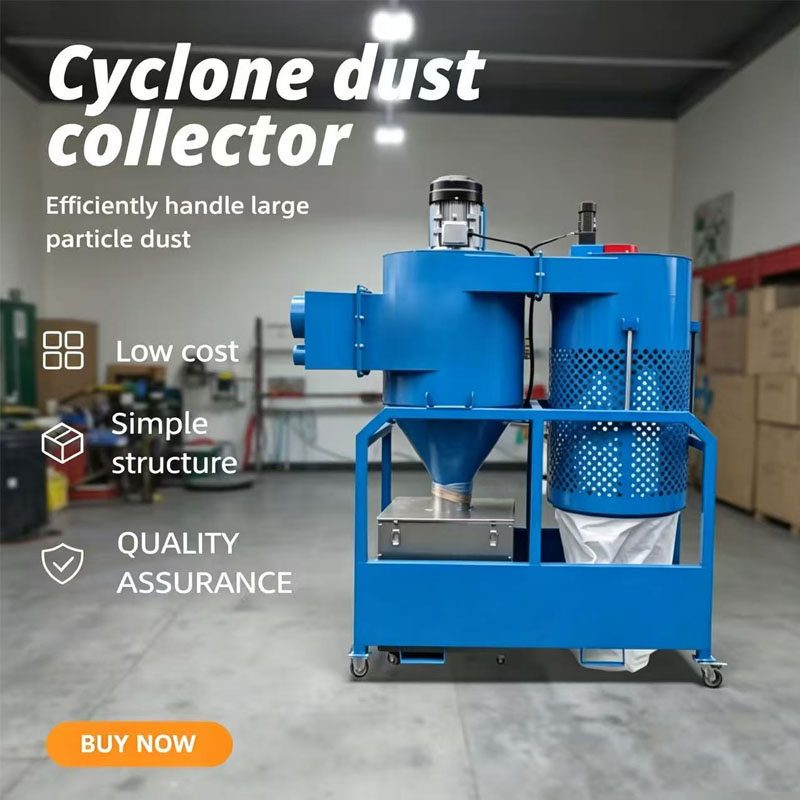

Portable Cyclone Dust Collector
Introducing our Portable Cyclone Dust Collector, the ultimate solution for Demanding Workshops. Engineered for excellence, this robust machine is your go-to device for efficient and effective dust extraction, ensuring a clean, safe, and productive work environment.
Industrial Dust Extractor Advantage:
1. Compact size allows for flexible movement and easy operation, making it ideal for any space.
2. Energy-efficient design ensures low power consumption and quiet operation (70.8dB-76.2dB), promoting a peaceful working environment.
3. Pulse automatic cleaning function maintains optimal performance with minimal effort.
4. Achieves superior filtration accuracy with precision levels of ≤2.5μm, capturing even the finest dust particles.
5. Low maintenance cost with a filter cartridge lifespan of approximately 12-24 months, ensuring long-term reliability.
6. Can seamlessly connect to pipes of varying lengths, suitable for both indoor and outdoor placement.
7. User-friendly interface with all buttons labeled in English for hassle-free operation.
Industrial Dust Extractor

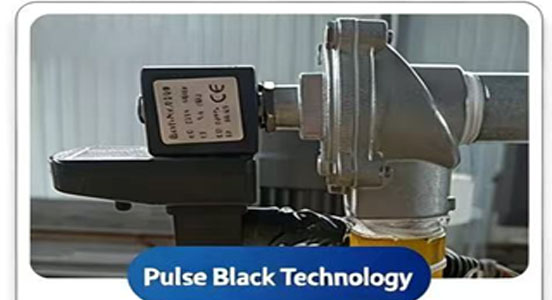

Pulse blowback Automatic ash removal
0.5-second solenoid valve blowing

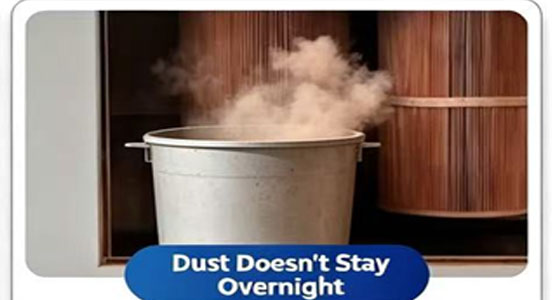

Dust settling hopper does not backflow
(Secondary dust commonly found in competitors)

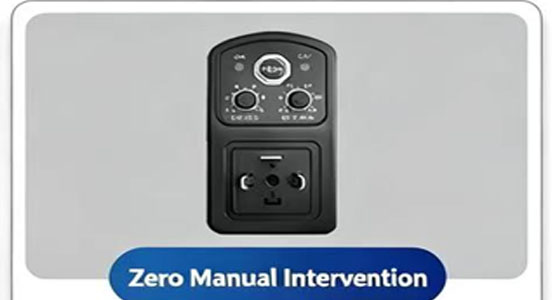

Intelligent timer/Free adjustment
0.5-second high-pressure reverse blow
(1.2 seconds for competitors)

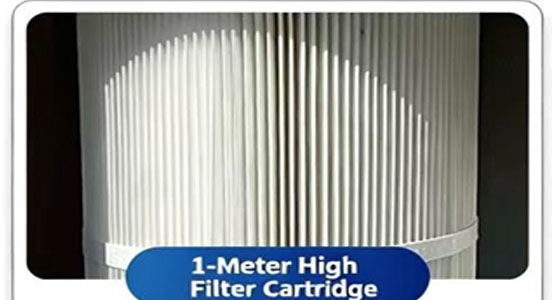

150 pleated filter core + 0 mechanical damage design
Washable lifespan of about 3 years
Wood chips/Metal/Plastic/Chemical dust
Instant settling bucket
Portable Cyclone Dust Collector Dust removal process:
1. The air inlet pipe on the right side sucks the dust into the cyclone chamber. Using cyclone centrifugal force, larger dust particles are effectively separated and fall into the dust bucket.
2.Smaller dust particles progress to the second stage where a filter cartridge dust collector performs secondary filtration, capturing fine dust and releasing clean air back into the environment.
3.The automated filter element cleaning occurs on schedule, ensuring dust is collected into the dust bucket efficiently
Cyclone dust collector Apply：
This versatile dust collector is perfect for use in wood factories, wood product facilities, furniture manufacturing plants, paper factories, and food
Other applications of cyclone dust collector:
Cement production (raw material grinding, clinker cooling), foundry workshop (mold making, metal melting), mine crushing (ore crushing, screening), thermal power generation (coal powder conveying, boiler dust removal), treatment concentration range 10-1000g/m³.
Large factory ventilation (such as warehouses, workshops), agricultural greenhouses (dust, straw combustion), urban waste transfer stations (waste sorting dust), airflow range 2000-50000 m³/h.
Selection and Application Recommendations for Portable Cyclone Dust Collector ：
1. Portable Cyclone Dust Collector Prioritize matching core parameters: Based on dust particle size, concentration, temperature, and airflow, calculate the required air pressure (overcoming pipeline resistance + equipment resistance) and select the corresponding specifications of the cyclone dust collector.
2.Portable Cyclone Dust Collector Material matching for application conditions: High temperature selects stainless steel/ceramic coating, high corrosion selects PP/FRP, explosion-proof selects non-sparking material, high wear selects ceramic inner lining.
3.Portable Cyclone Dust Collector Combine to improve efficiency: For ultra-fine dust and high humidity dust, pair with fabric bags/electrostatic precipitators; for high concentration dust, pair with multi-stage cyclone dust removal (e.g., primary coarse dust removal + secondary fine dust removal).
4. Portable Cyclone Dust Collector Regular maintenance ensures operational conditions: Clean ash from the hopper monthly, inspect worn parts quarterly, replace seals annually, to ensure the equipment operates stably under appropriate conditions.
Cyclone dust collector composition：
Cartridge:
Core component, usually made of polyester, water-proof, anti-static,Oil resistant, high temperature materials, We will select the correct materials based on working conditions.
Dust Cleaning System:
Includes pulse valves, blow-off pipes, air tanks, etc., used for regularly removing dust from the surface of filter bags.
Dust Bin/hopper:
Collects and stores dust that falls off during dust cleaning.
Shell:
Supports cartridge and cyclone, Seals the dusty gas.
Wheels:
Easy to move the whole equipment
