Two-Stage Cyclone Pulse Dust Collector
Two-Stage Cyclone Pulse Dust Collector product Overview
This movable two-stage cyclone pulse dust collector adopts a two-step dust purification structure: primary cyclone centrifugal separation + secondary cartridge precision filtration. Compared with single-stage dust collectors, it can separate most large granular dust in advance, protecting filter cartridges and extending their service life. The whole machine is mounted on wear-resistant casters, allowing flexible transfer to different workstations. Built-in pulse air tank and automatic blowing system realize non-stop self-cleaning, no need to shut down the machine to clean dust manually.
Two-Stage Cyclone Pulse Dust Collector It comes with dual collection solutions: bottom metal dust box + rear dust filter bag, convenient for centralized ash disposal without secondary dust flying.
Product display
Two-Stage Cyclone Pulse Dust Collector working Principle

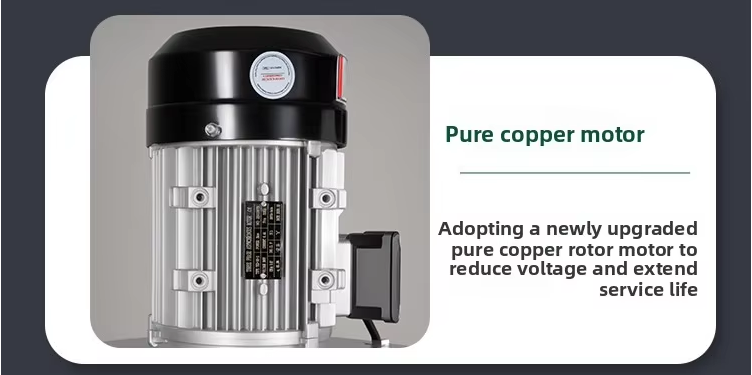

1.The top powerful motor creates negative pressure, drawing dust air into the cyclone barrel through the suction port.
2.Fast rotating airflow produces centrifugal force: heavy dust slides down into the front dust box; light fine dust flows upward to the filter cartridge area.

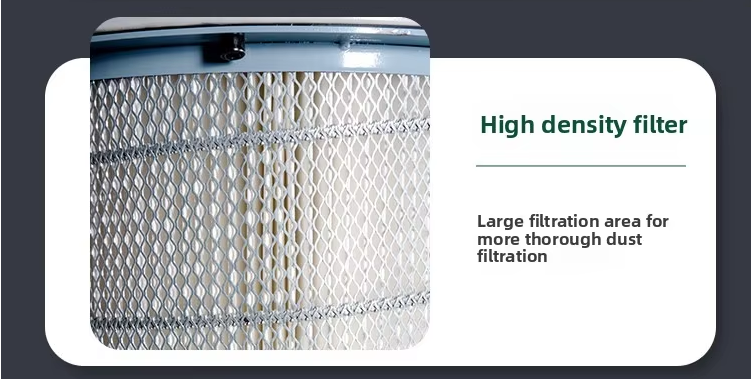

3.Tiny dust particles are trapped on the outer surface of filter cartridges, while clean air passes through the filter.
4.The pulse system regularly releases high-pressure air to blast the cartridge surface, shaking off accumulated fine dust into the rear dust bag automatically.
5.Purified clean air is discharged from the exhaust outlet, which can be connected with external ducts to vent outdoors.
6.Users only need to take out the dust box and dust bag periodically to clean waste dust.

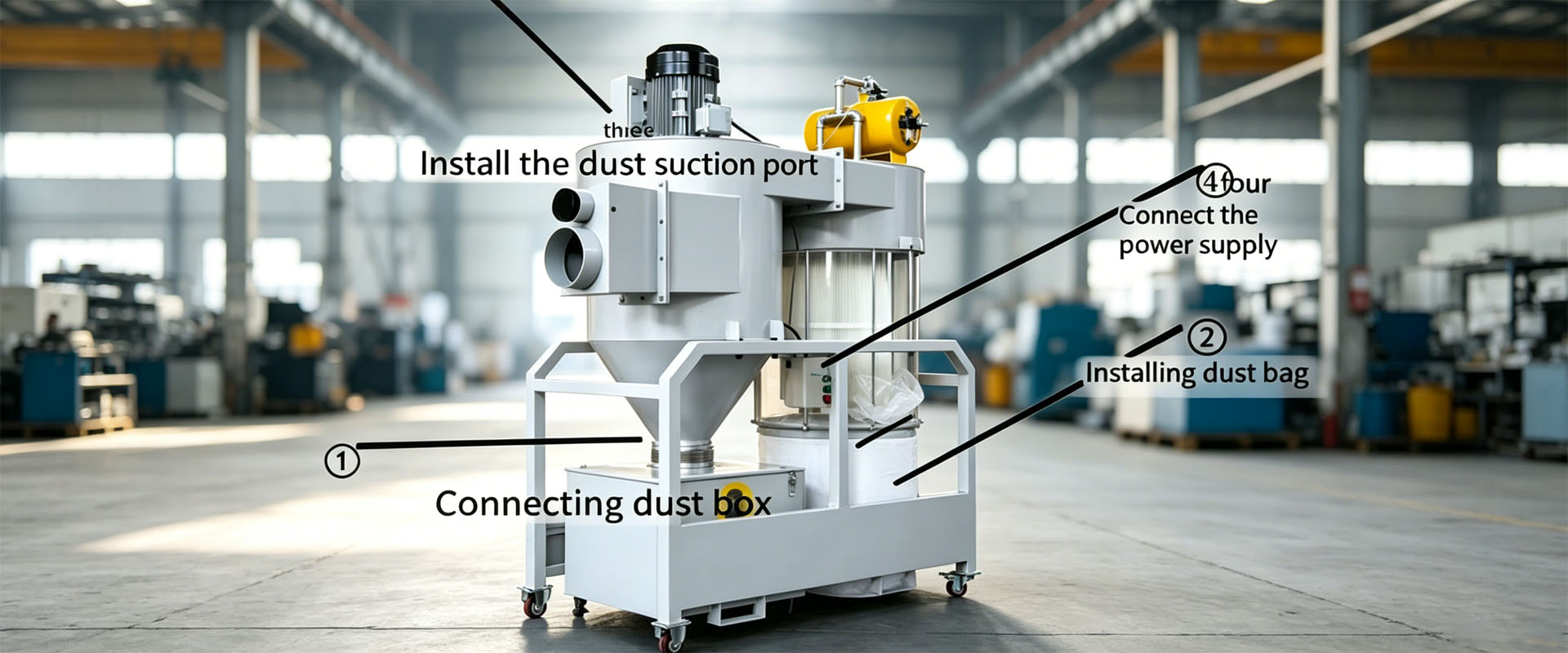

Product composition
Two-Stage Cyclone Pulse Dust Collector core Advantages
1.Two-Stage Double Filtration Structure
Dust-laden air first enters the cyclone cone. Heavy coarse dust falls into the front dust box under centrifugal force; only ultrafine floating dust enters the filter cartridge for deep filtration. Effectively avoid rapid filter blockage and lower your replacement cost.
2.Automatic Pulse Jet Self-Cleaning System
Equipped with high-pressure air storage tank and pulse control box. The machine regularly sprays instant high-pressure airflow to shake off dust attached to cartridge surfaces automatically, maintaining strong and stable suction continuously.

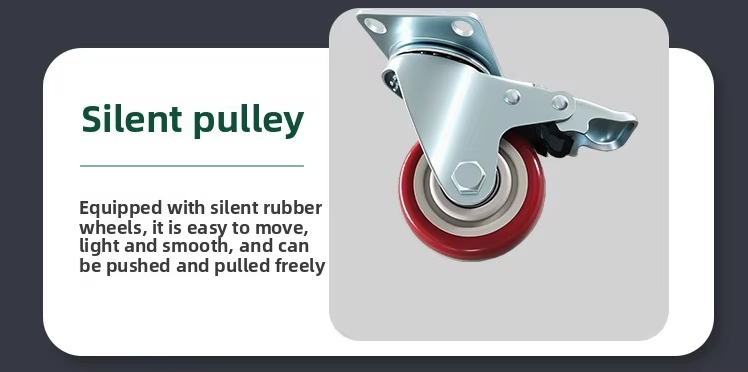

3.Flexible Mobile Design with Universal Casters
Four heavy-duty silent casters with brake locks support free movement between multiple processing stations, ideal for factories with scattered dust sources.

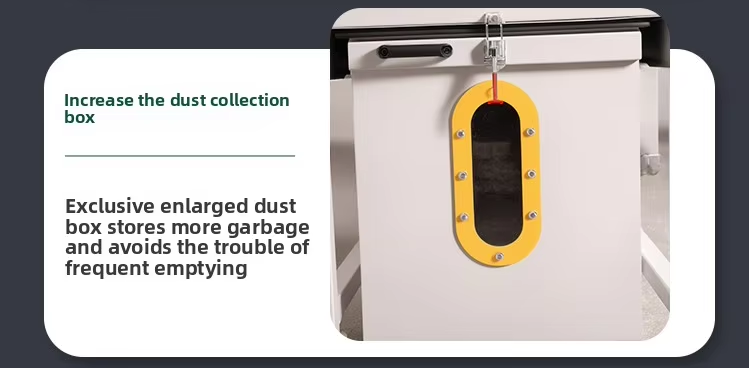

4.Dual Dust Storage Design (Dust Box + Dust Bag)
Front sealed metal dust box collects separated coarse dust; rear large-capacity filter bag gathers fine ash blown down from cartridges. Both are easy to disassemble for waste dumping, no dust leakage during cleaning.
5.Multiple Dust Suction Ports
Two standard air inlet flanges reserved on the side, can connect grinding tables, cutting machines and polishing equipment at the same time to realize multi-station synchronous dust collection.
6.Safe Independent Control Panel
Centralized button control for fan start-stop and pulse cleaning cycle adjustment, with overload protection to avoid motor burnout for safer workshop operation.
7.High Purification Efficiency, Meet Environmental Standards
Dual-stage interception keeps exhaust air clean, fully compliant with local industrial waste dust emission regulations; supports external exhaust pipe connection for outdoor venting.
Application scenarios
Grain dust
Metal processing
Warehouse
Factory workshop
Two-Stage Cyclone Pulse Dust Collector application Scenarios
Metal processing: grinding, polishing, deburring, cutting, welding dustWood
working factory: sanding, engraving, cutting wood powder
Stone processing: marble, granite cutting and grinding dust
Hardware, plastic, handicraft production lines
Small and medium batch multi-station processing workshops
Workshop display and customer visits
