Wet Scrubber Water Curtain Paint Booth for Workshop Exhaust Gas Treatment

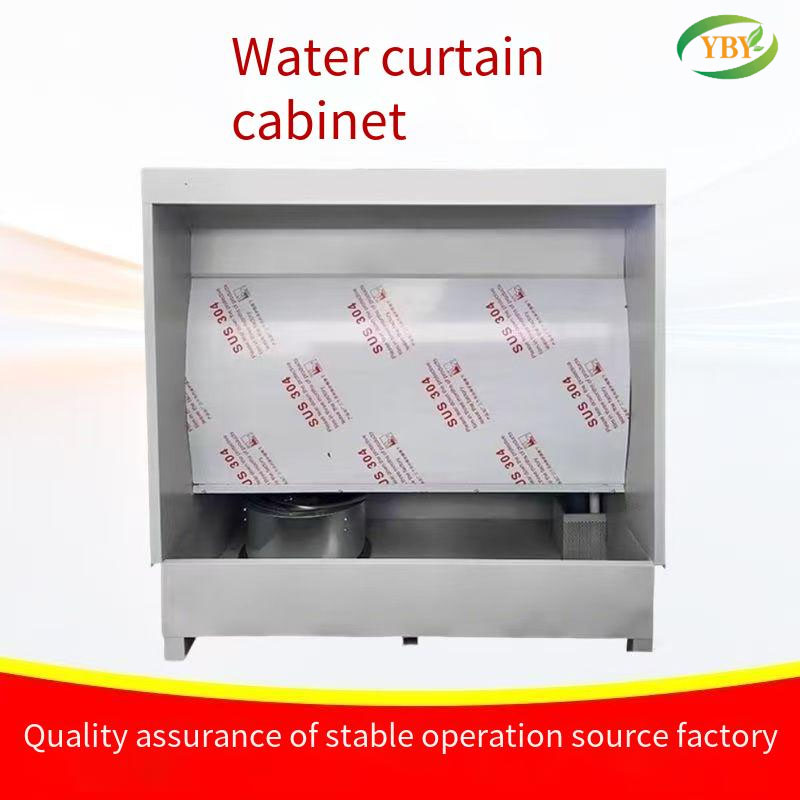

Wet Scrubber Water Curtain Paint Booth The working principle of a water curtain cabinet is to use water to capture paint mist.
A water curtain booth is a waste gas treatment device for treating paint mist. Its working principle is to confine the exhaust gas, commonly known as paint mist, emitted from the spray gun during the painting process within a specific area for filtration.
A water pump circulates water from the tank to the upper water trough, from which it overflows onto the water curtain plate, forming a water curtain. Simultaneously, the impact of the high-speed airflow atomizes the water through a swirl plate, washing the air and purifying the paint mist.
A baffle plate then blocks the water mist in the air, and the treated air is discharged outside the workshop through a fan and exhaust duct.
The specific process is as follows:Water curtain formation: The water pump draws water from the tank to the top overflow trough, and the water flows down the inclined plate evenly to form a continuous water curtain (the thickness is usually 3-5mm and the flow rate is 0.5-1.2m/s).
Paint mist adsorption: Paint mist generated during spraying is guided by negative pressure airflow to a water curtain, Wet Scrubber Water Curtain Paint Booth where particles settle after colliding with the water. Experimental data shows that the water curtain can intercept more than 90% of paint mist.
Airflow circulation: The fan exhausts the purified air, and some equipment is equipped with activated carbon secondary filtration to ensure that VOCs emissions meet the standards (such as EU standard ≤50mg/m³).The structure of a water curtain booth mainly consists of three parts: a bottom water tank, a front spray booth, and a rear spray chamber.
It primarily utilizes a water pump for water circulation and spraying, creating a water curtain on one or three sides of the booth or equipment. This forms a spray pattern within the spray chamber.
Wet Scrubber Water Curtain Paint Booth Excess paint mist generated during spraying flows down the water curtain into the water tank, while the remainder is cleaned by the water curtain and filtered by a filter before being extracted by an exhaust fan.
Easy to operate
Wet Scrubber Water Curtain Paint Booth The design of the water curtain cabinet makes operation simple and intuitive
Environmental protection
Wet Scrubber Water Curtain Paint Booth Water curtain cabinets can effectively filter exhaust gases (paint mist) generated during the painting process, protecting the environment and human health.
By purifying the painting work environment, the water curtain cabinet helps improve the efficiency and quality of painting work

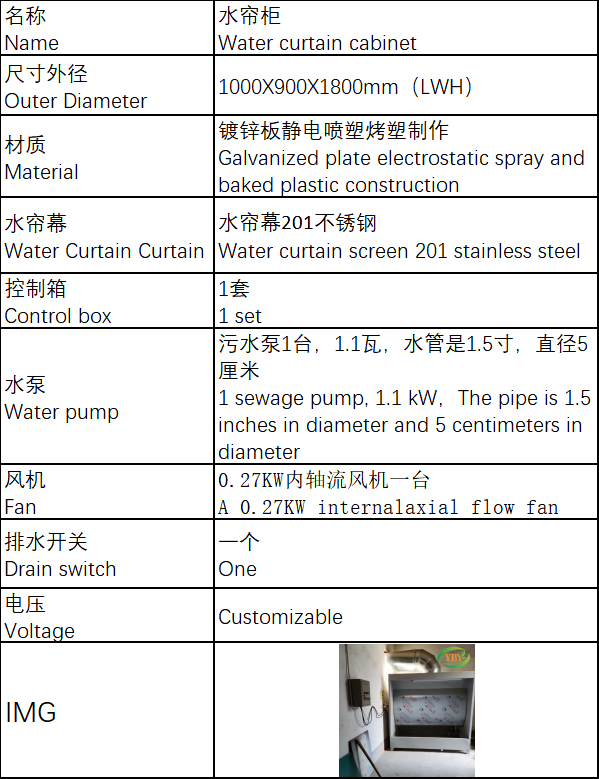

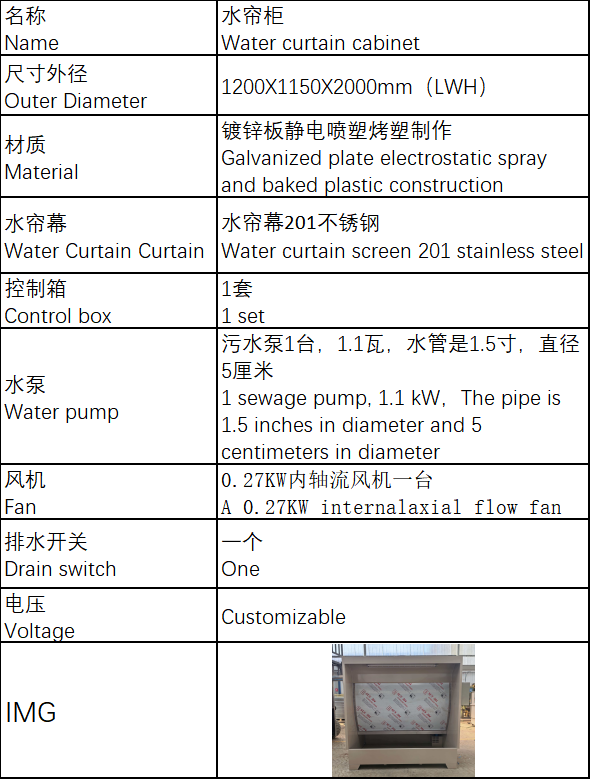

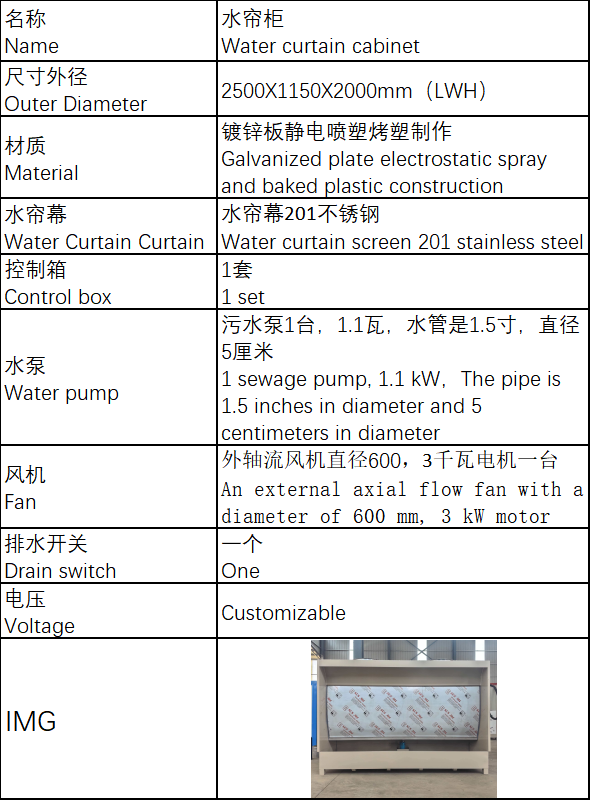

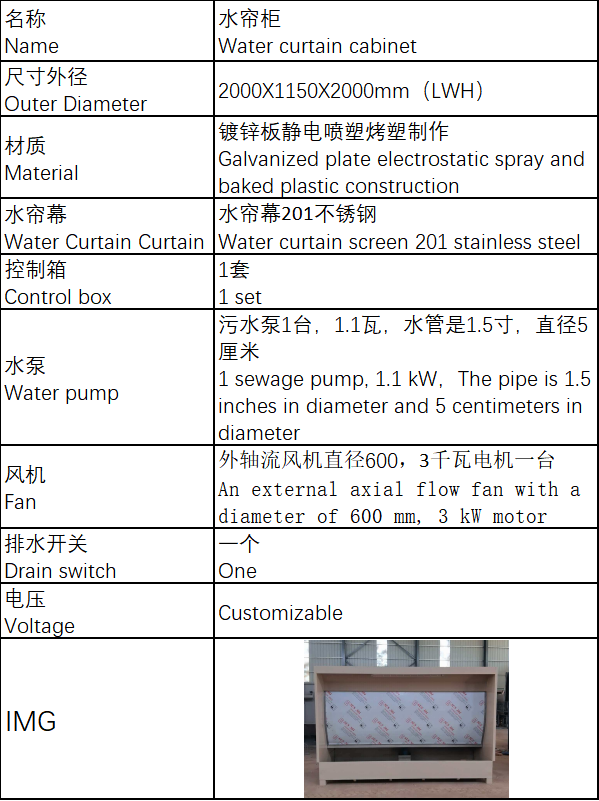

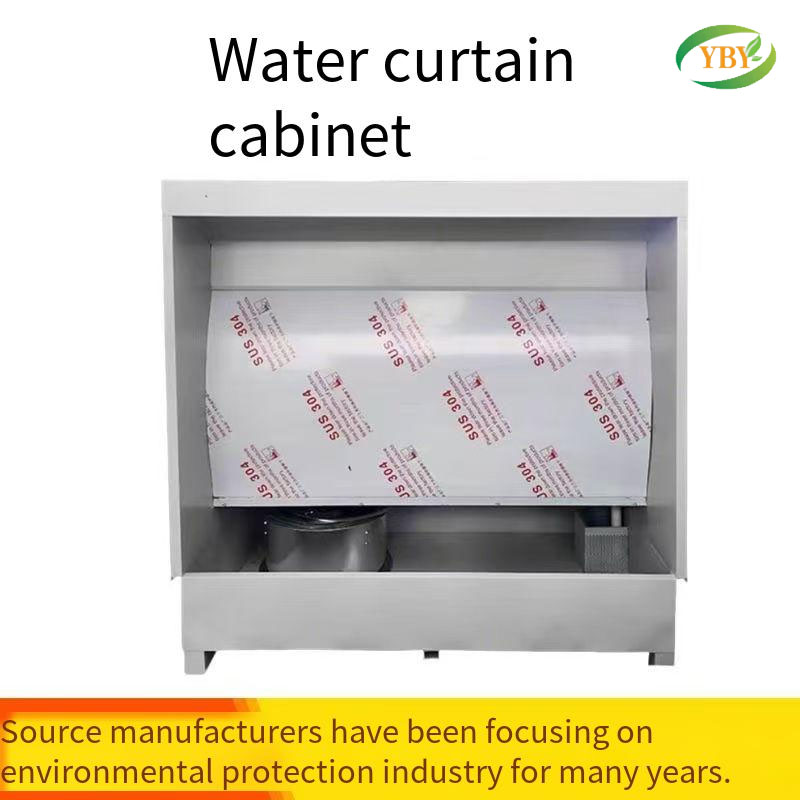

Water curtain cabinet models
The water curtain cabinet is an environmentally friendly device specifically designed to treat exhaust gases and paint powder generated during the painting process. It is widely used in various painting assembly line workshops, effectively capturing and filtering paint powder and harmful gases generated during the painting process, ensuring a clean and safe working environment. In addition, water curtain cabinets are also suitable for spraying treatment in automotive products, electronics, and household items, such as the spraying treatment of automotive dashboards, control panels, tissue pans, and other components.
Additionally, water curtain cabinets are also used in breeding plants. As a deodorizer for water curtain cabinet plants, they use specific aquatic plants such as water hyacinth and water spinach, which absorb and decompose odorous components in the air, such as hydrogen sulfide and ammonia, through photosynthesis and microbial action during their natural growth processes, thereby purifying the air. This application is not only environmentally friendly and harmless, but also beautifies the environment, is easy to maintain, and has been proven in practical use to effectively reduce odor emissions from farms and improve air quality
