Industrial Cyclone Duct Collector Explanation
1. Industrial cyclone dustcollector The main characteristic of cyclone dust collector is that the cylinder body is conical, which reduces the possibility of short-circuit of dusty gas from the center of the cylinder body to the exit. And the conical reflection screen is equipped to prevent the dust from being separated by the two airflow to be rolled up again and taken out by the updraft, thus improving the dust removal efficiency.
2.Industrial cyclone dustcollector has a high collecting ability for the dust with a large proportion and coarser particles, which is not limited by the dust concentration at the entrance. According to the dust concentration, the thickness of the dust particles can be used as primary or single-stage dust removal respectively. The corrosive dust gas and high temperature dust gas can also be captured and recovered.
3, Industrial cyclone dustcollector the design of nearly straight cylindrical vertebral structure, eliminate the formation of ash ring, avoid the local wear of coarse particles dust rebound phenomenon, improve the service life and dust removal efficiency, high efficiency in resistance, strong load adaptability, stable and reliable operation.
4, Cyclone dust collector structure is simple, the body has no moving parts, does not need special auxiliary equipment, covers an area of small, low cost.
INDUSTRIAL CYCLONE DUST COLLECTOR FEATURES AT A GLANCE
Industrial Cyclone dust collector High dust removal efficiency (99.9% or higher)
Advantages of cyclone dust collector equipment
1. Industrial cyclone dust collector are casters at the bottom for easy movement.
2. There is pulse automatic cleaning function, do not need manual cleaning.
3. Can connect pipes of different lengths, indoor and outdoor can be placed.
This part of the control button can be made in English.

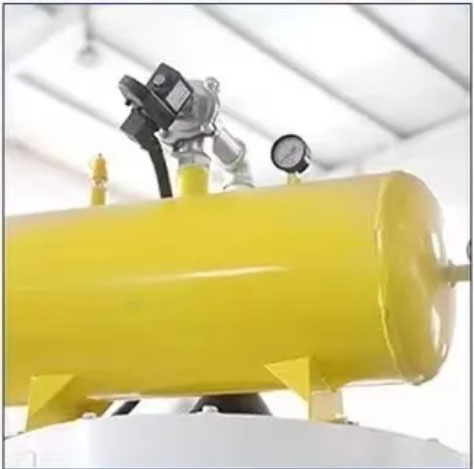

Electromagnetic pulse valve

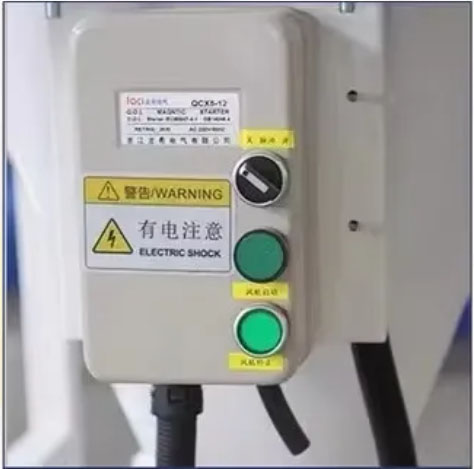

Intelligent operation button

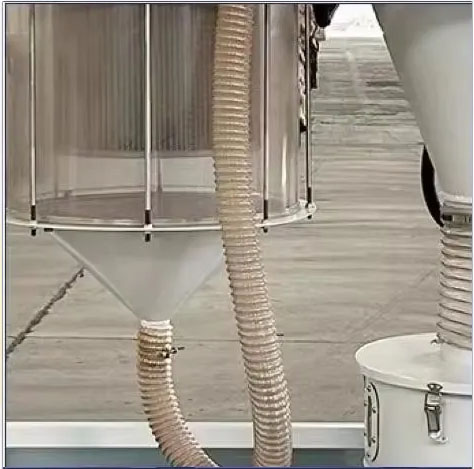

Suction pipe

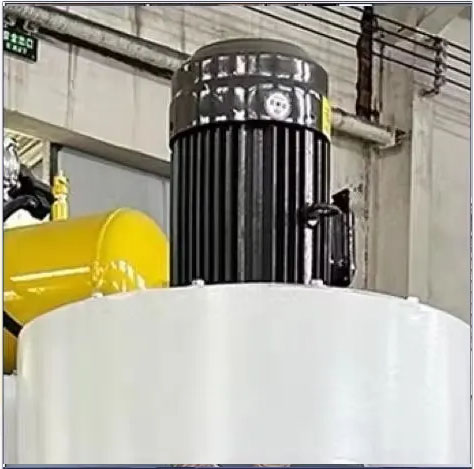

Pure copper machine
Centrifugal separator application conditions

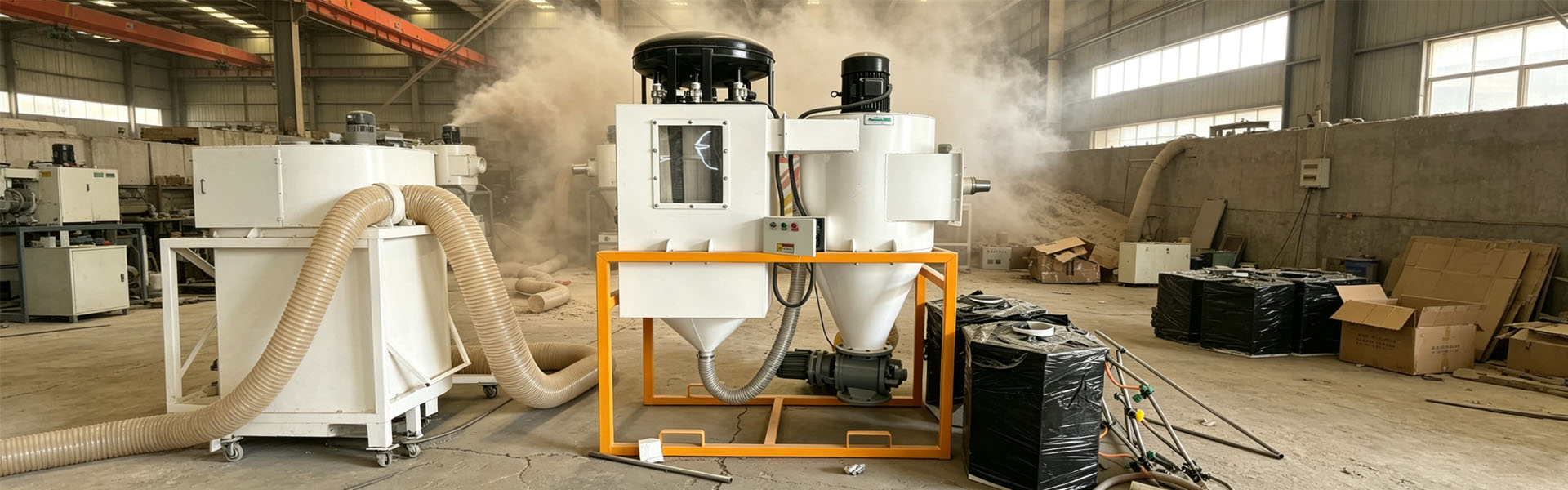

Industrial cyclone dust collector Cyclone separators are used for Wood processing industry: Suitable for handling dust such as wood chips and sawdust, effectively improving the air quality in the workshop and safeguarding the health of workers.Metal
Cyclone separators are used forprocessing industry: Used for collecting metal dust generated during cutting and grinding processes, preventing dust dispersion and reducing the risk of fire.
Cyclone separators are used for Chemical industry: In the chemical production process, it is used to remove harmful dust and protect the production environment, meeting environmental protection requirements.
Cyclone separators are used for Food processing industry: During the production of flour, starch, etc., it removes dust from the air to ensure product quality and food safety
Cyclone separator maintenance
Industrial Cyclone dust collector daily maintenance (daily/weekly)：
Check Sealing: Check the sealing of the intake pipe, exhaust pipe, and hopper connection daily. Repair any air leaks promptly (using high-temperature resistant sealant or replacing seals). Clean Hopper: Clean the hopper of accumulated ash weekly to prevent excessive ash buildup, which can increase equipment resistance and hinder ash discharge. In high-concentration conditions, clean daily. Check wear condition: Check the wear condition of the intake pipe, cylinder, and cone weekly, focusing on severely worn areas (such as the intake pipe outlet, lower cone), and replace parts if wear exceeds 2mm.
Hebei YiboYuan Environmental Protection Machinery Manufacturing Co., Ltd. specializes in the production of：
We are committed to providing unparalleled customer service excellence. We know that our customers' needs are unique, so we provide online support to ensure that their queries are answered promptly.
We have an excellent reputation and to date, we have served more than 100 customers around the world. Our products have been exported to more than 80 countries and have passed certifications from well-known organizations such as CE to ensure quality and safety for our customers.
Hebei Yibo Yuan Environmental Protection Machinery Manufacturing Co., Ltd. Clients Visit
Cyclone separator packaging and transportation
