Flat grinding table operating conditions
Flat grinding table Suitable for all kinds of welding, grinding, workpiece deburring, plasma cutting, etc.
It is widely used in dust removal, material recovery and air filtration in tobacco, medicine, food processing, building materials, metallurgy, chemical industry, electric power, machinery manufacturing, casting and other industries.
Application industries: metallurgy, cutting, grinding, plastics, chemicals, pharmaceuticals, food, biology, electronics, mechanical hardware, casting, ceramics, loading and unloading, cement, woodworking，mining and other industries
The working principle of a flat grinding table
The dust enters the purifier through the negative pressure generated by the fan through the suction port and the lower suction port, the airflow enters the inflow channel, the large particles of dust fall into the dust collection drawer under the action of gravity after impacting with the inflow plate, and the dust containing fine particles enters the filtration chamber.
Advantages of the flat polishing table
1. Built-in dust removal system, the cleaned air can be circulated and discharged indoors to reduce air pollution.
2. Effectively captures suspended dust without interfering with workers' vision, making it an ideal choice for medium and small precision processing. It can be connected with a special smoke purifier and a central smoke system.
3. Set up a deflector at the air inlet to prevent smoke and dust from directly impacting the filter element and extend its service life.
4. The fan adopts a high-efficiency centrifugal fan, which has the characteristics of high efficiency and smooth operation.
5. Integrate the workbench and dust removal function into one, and remove dust directly at the source of dust generation.
6. Downdraft Table has a compact structure and small floor space, and can operate in two or multiple stations at the same time.
7. The filter cartridge has long service life, stable performance and easy replacement.
8. Equipped with a new low-noise fan, the air suction volume remains unchanged but the noise is lower.
9. Drawer-type dust box, emptying dust quickly and conveniently
Precautions for using the flat grinding table
Avoid wires during operation.
Do not step on or pull wires with force.
Please keep this manual properly before use and place it near the device for easy reference.
After the equipment has been in operation for a while, dust accumulation on the outside of the filter bags increases.
It’s necessary to carry out dust removal maintenance promptly.
Wear goggles and gloves during grinding operations to ensure proper personal protection.
General preparation work (Grinding Bench)
Before startup, complete lubrication of all lubrication points according to the lubrication diagram, and the hydraulic system must use filtered N32G hydraulic guide oil
Coolant adopts a 7%-10% concentration of saponified solution oil mixed with water
After the equipment is placed on the foundation, use a level to adjust it to a horizontal state. After installation is complete, it can first be used with an electromagnetic chuck for trial grinding to ensure processing accuracy
The workpiece needs to be securely fixed on the workbench surface. Do not drag the workpiece directly on the surface to avoid damaging the workbench
The Grinding Bench is only to be used for grinding workpieces; when the equipment is running, no other items may be placed on the machine except for the fixed workpiece

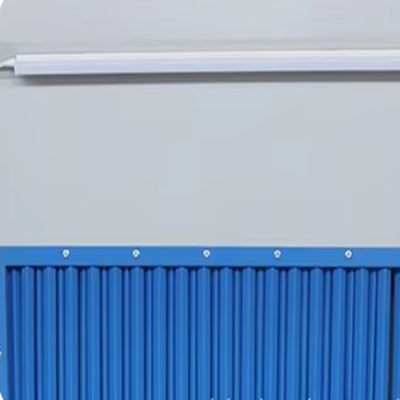

LED lighting
Equipped with LED lighting,convenient for night work.

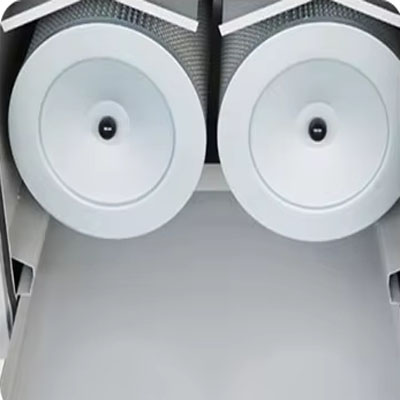

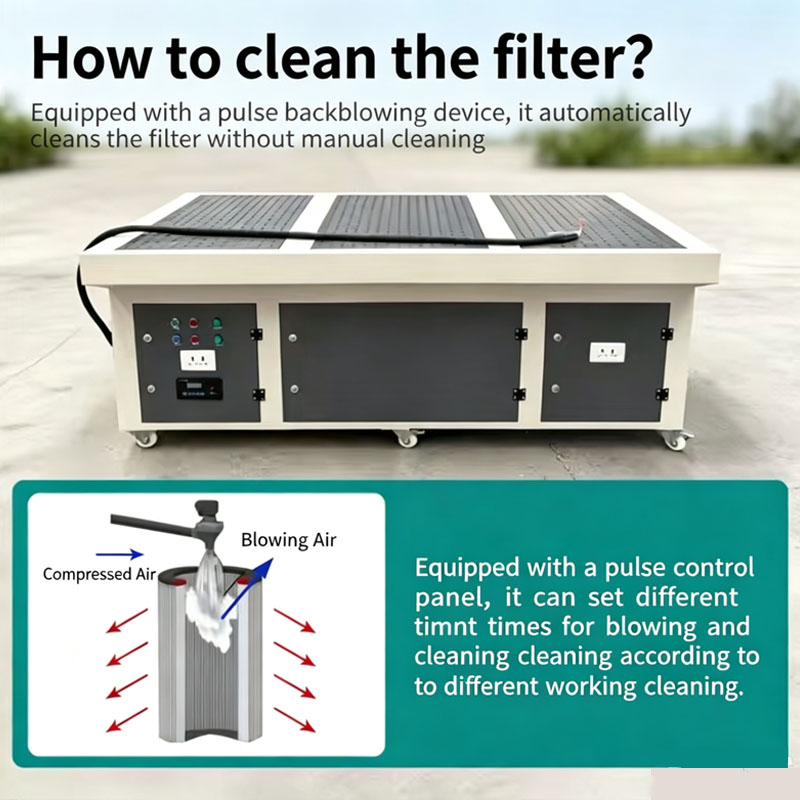

Pulse backblowing filtration
High power pulse system,automatic drum filtration,more convenient.

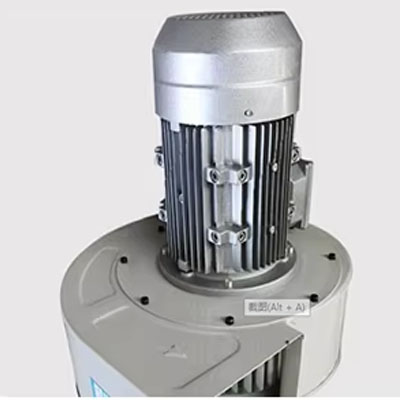

Centrifugal fan
Low noise,
stable performance.
more suction.

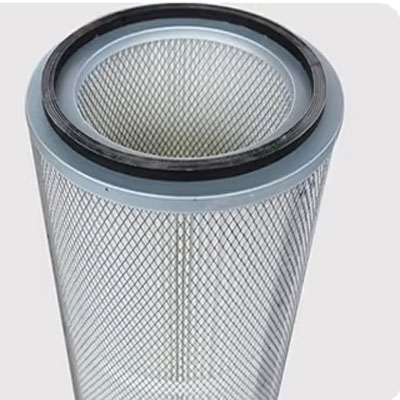

Iron meshfilter
cartridgeAdopt iron network design,good filtering effect,more durable.
Brief Introduction to the Tiled Grinding Table

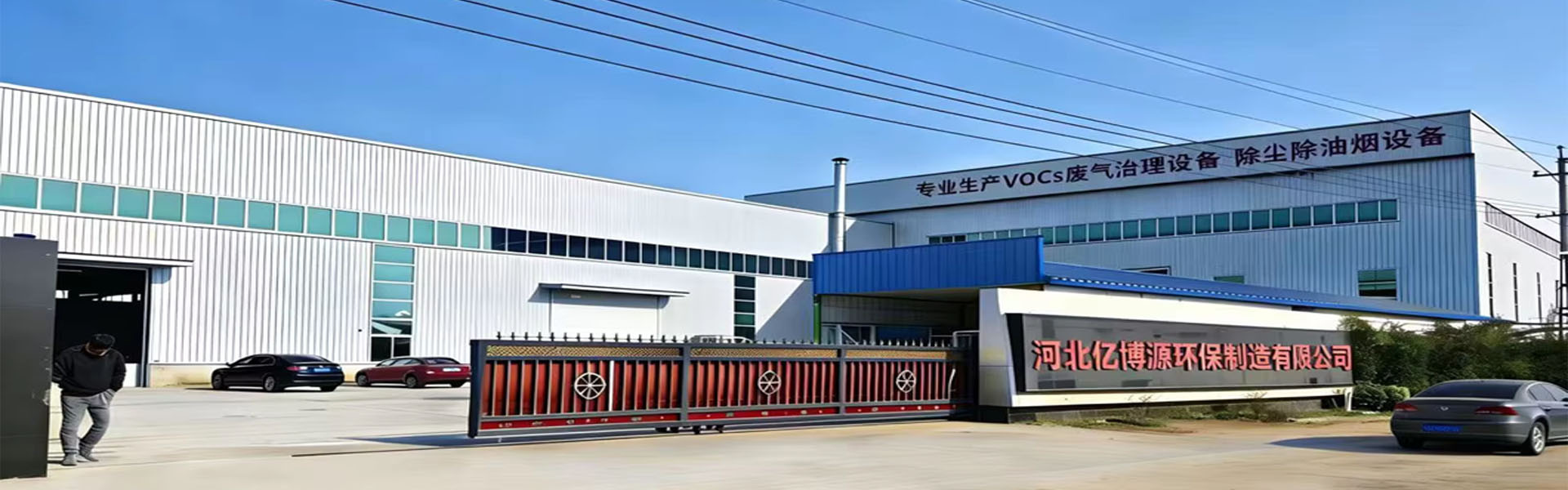

Hebei Yiboyuan Environmental Protection Machinery Manufacturing Co., Ltd. – Factory Introduction
Hebei YiboYuan Environmental Protection Machinery Manufacturing Co., Ltd.
Industrial cyclone dust collector, Dust emovale quipment, Deodorzing equipment, Smoke removalequipment, Welding grinding platform, Spiral conveying equipment,,centrifugal fan, filter bag, filter cage, valves and other accessories.
The company is located in Cangzhou City, Hebei Province, China.
We are committed to providing unparalleled customer service excellence. We know that our customers' needs are unique, so we provide online support toensure that their queries are answered promptly.
We have an excellent reputation and to date, we have served more than 100 customers around the world.
Our products have been exported to more than 80 countries and have passed certifications from well-known organizations such as CE to ensure quality and safety for our customers.
Packaging & Shipping
Client visit

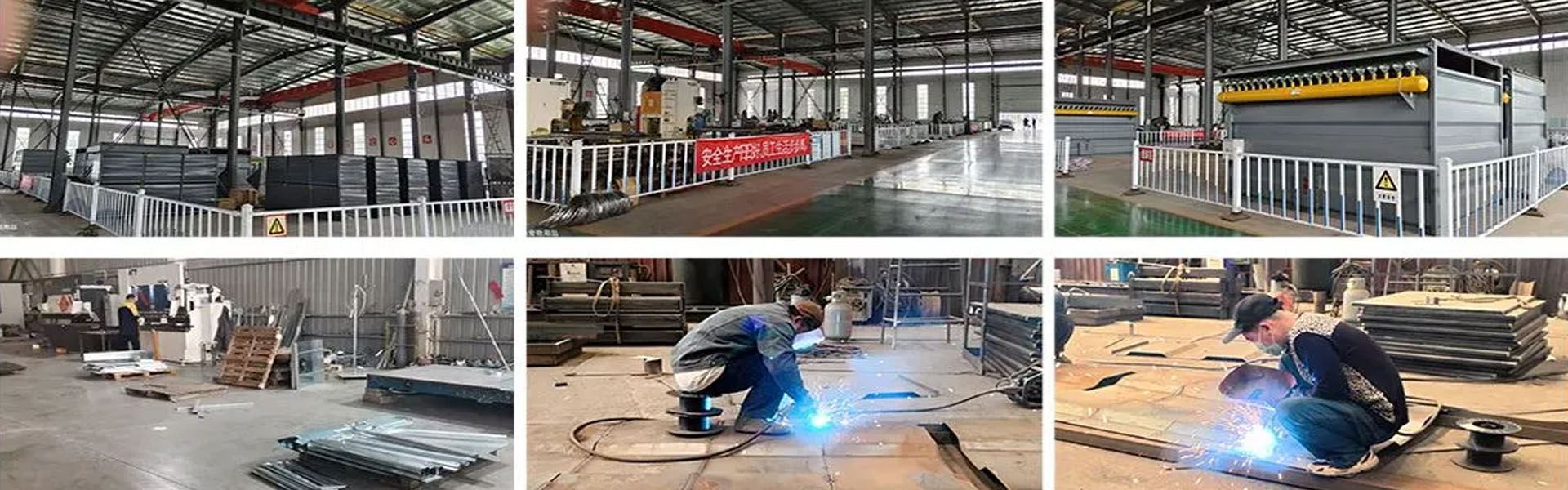

Workshop display
