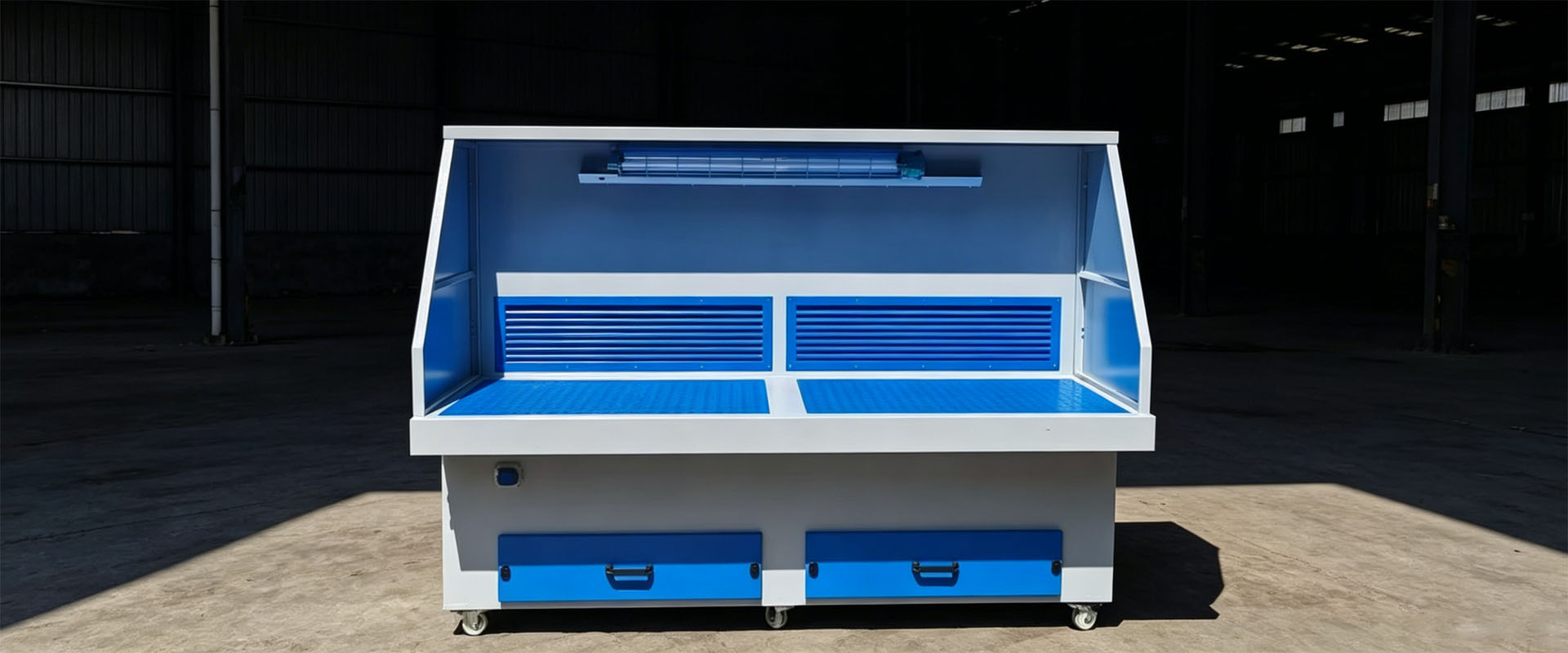

Dust-removal dry mill in the woodworking workshop, equipped with high-efficiency filtration devices
1.Dust-removal dry mill in the woodworking workshop Introduction:
The grinding table (also known as the grinding dust removal workbench or vacuum grinding platform) is an industrial environmental protection device that integrates the functions of a workbench and a dust collector.
It is specially designed for small and medium-sized fine machining and irregular parts processing conditions, effectively capturing suspended fine dust directly at the dust source without interfering with workers' daily work, providing operators with a clean and healthy working environment.
2. Dust-removal dry mill in the woodworking workshop Structural Features and AdvantagesIntegrated design:
Perfectly integrates the workbench with the dust removal system, featuring a compact structure and small footprint, no need for complex pipeline connections, and supports simultaneous operation of two or multiple stations.
All-round vacuum suction: The bottom, front, and top of the workbench are equipped with air outlets to precisely control dust dispersion and prevent dust from lingering at the operator's breathing area.
Low noise and health protection: Equipped with new low-noise centrifugal fans with noise reduction treatment, ensuring smooth operation; With a purification efficiency of up to 99.9%, it effectively intercepts PM2.5 and harmful chemicals (such as benzene), safeguarding workers' physical and mental health
Easy maintenance: Drawer-style dust collection bins for quick and convenient ash disposal; The filter cartridges have a long service life, stable performance, and low replacement costs

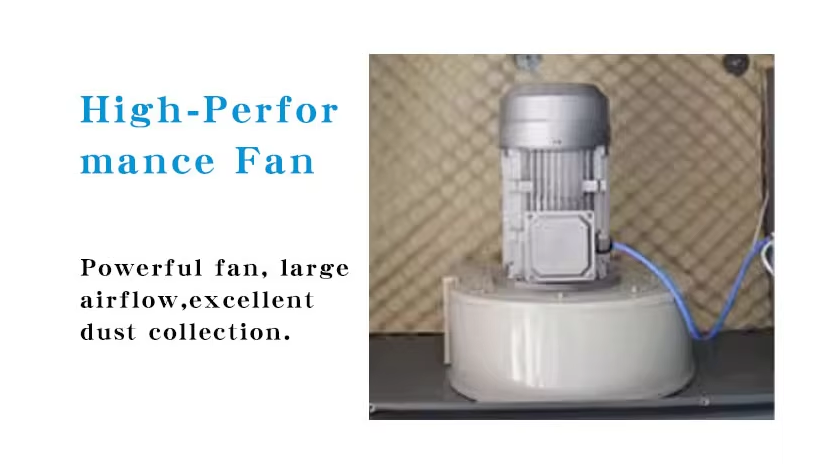

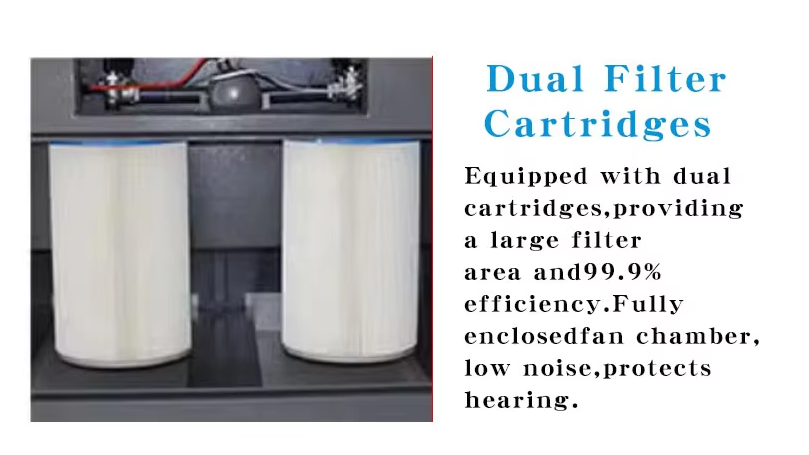

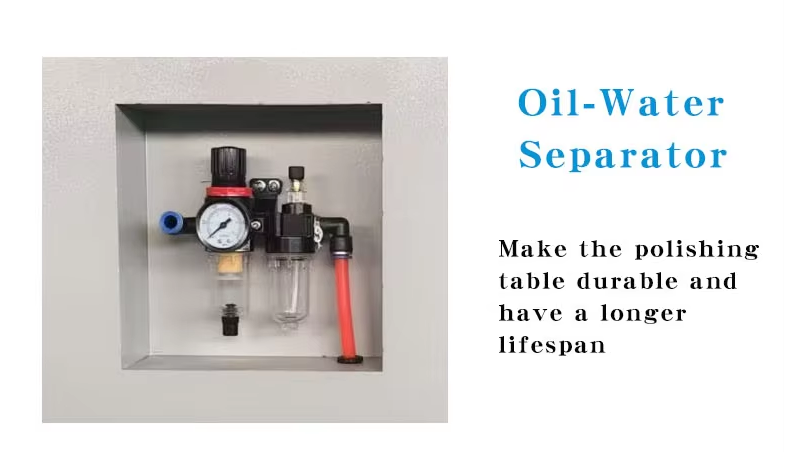

Core components of the grinding table
Dust-removal dry mill in the woodworking dust-removal dry mill in the woodworking workshop Working principle：
The grinding table mainly relies on the negative pressure generated by the centrifugal fan for dust removal, with the core workflow as follows:Airflow suction: Dust-laden gas enters the purifier's internal flow channel through the bottom surface, front, or upper air intake of the workbench.
Gravity Settlement: After colliding with the deflector plate, large dust particles fall directly into the ash collection drawer at the bottom under gravity.Filter interception: Dust containing fine particles enters the filter chamber. As it passes through the filter element, the dust is blocked on the outer surface of the cartridge, and the purified air is discharged through the duct and fan (the cleaned air can be circulated indoors).
Automatic cleaning: When dust accumulates on the filter element's surface, manual cleaning or pulse blowing (high-pressure gas instantly expands to shake off dust) can be used to separate dust from the filter element and fall into the ash collection box, ensuring continuous efficient operation of the equipment.
Grinding table working area
Dust-removal dry mill in the woodworking workshop Main application areas ：
Grinding tables are widely used in various welding, polishing, grinding, deburring, and plasma cutting processes. Industries involved include furniture manufacturing, machining, automotive assembly and repair, food processing, pharmaceuticals, metallurgy, power, chemicals, building materials, casting, and laboratory soil grinding.
Choosing the type of grinding table
Dust-removal dry mill in the woodworking type selection (dry and wet)：

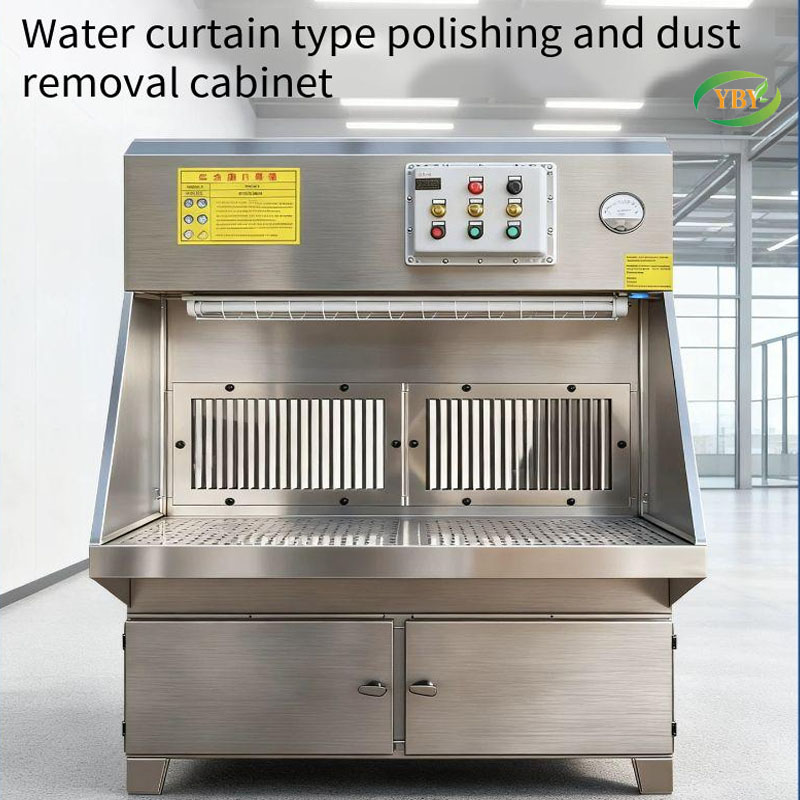

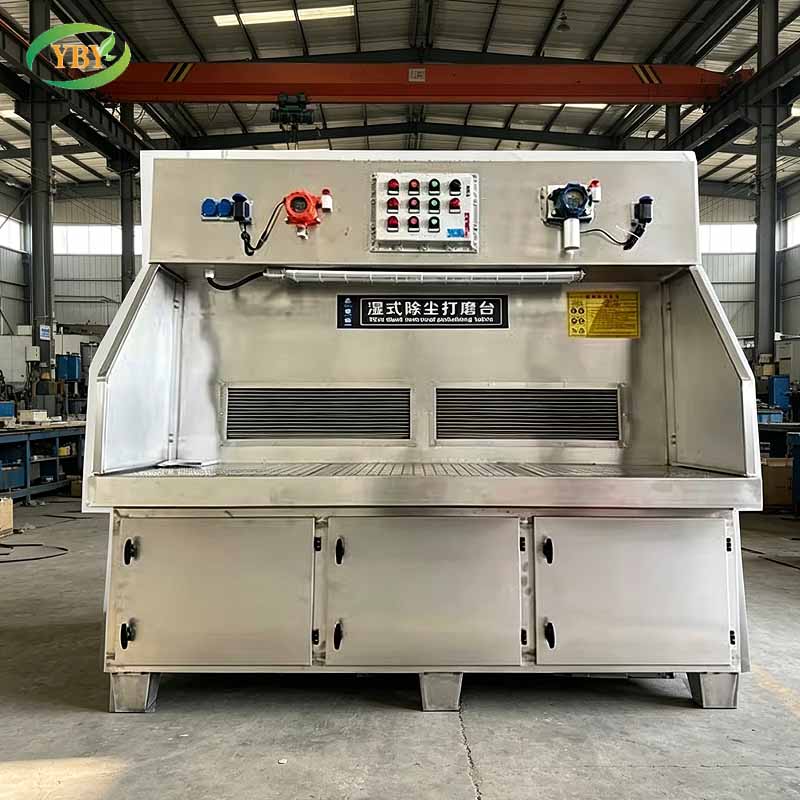

Based on the dust generated under actual working conditions, grinding tables are mainly divided into two types:Dry grinding table: Mainly relies on filter cartridges for filtration, does not require wastewater treatment, and daily maintenance is relatively simple, but requires regular filter element replacement. Suitable for conventional dust but not for flammable and explosive dust 11.Wet grinding table: Captures and settles dust through water curtains or water baths, effectively preventing dust explosion risks, effectively treating fine and sticky dust, and consuming no filter material. However, it generates wastewater, which requires a supporting wastewater treatment system
