Industrial Dust Control Downdraft Table for Workshop Grinding Polishing Operations
Industrial Dust Control Downdraft Table Working Principle ：
The downdraft table uses negative pressure generated by the built-in fan to draw dust and fumes downward through the work surface. The contaminants pass through multiple stages of filtration, where larger particles are trapped by the primary filter, and fine dust is captured by high-efficiency cartridges. Clean air is then recirculated back into the workshop or exhausted outside, depending on the configuration.
Grinding table dimensions and specifications
Industrial Dust Control Downdraft Table Working principle：
The working principle of the grinding workbench is to suck the dust generated during the grinding process into the workbench through the negative pressure generated by the fan, and after being filtered by the filter element, the clean air is discharged, and the dust is collected in the dust collection drawer.Here are the detailed steps on how a sanding table works:After the equipment starts running, the air flow enters the diversion channel, and the large particles of dust fall into the drawer under the action of gravity.
The gas passes through the filter element from the outer surface of the dust filter material, and the dust is blocked by the filter element on its surface.When the dust is continuously deposited on the surface of the filter element, the filter element is cleaned by adopting the structure of a manual ash cleaner, so that the dust particles deposited on the filter element can detach from the surface of the filter element and fall into the ash collection drawer under the action of vibration.The purified air is discharged by the air duct and fan.After prolonged use, more dust accumulates on the outer surface of the filter cartridge, increasing resistance and causing a significant drop in airflow.
At this point, the pulse cleaning device is activated to backwash and clean the filter cartridge, using compressed air to shake off dust from the cartridge outer wall and collect it in the dust collection drawer, ensuring long-term smooth operation and stable dust collection performance.

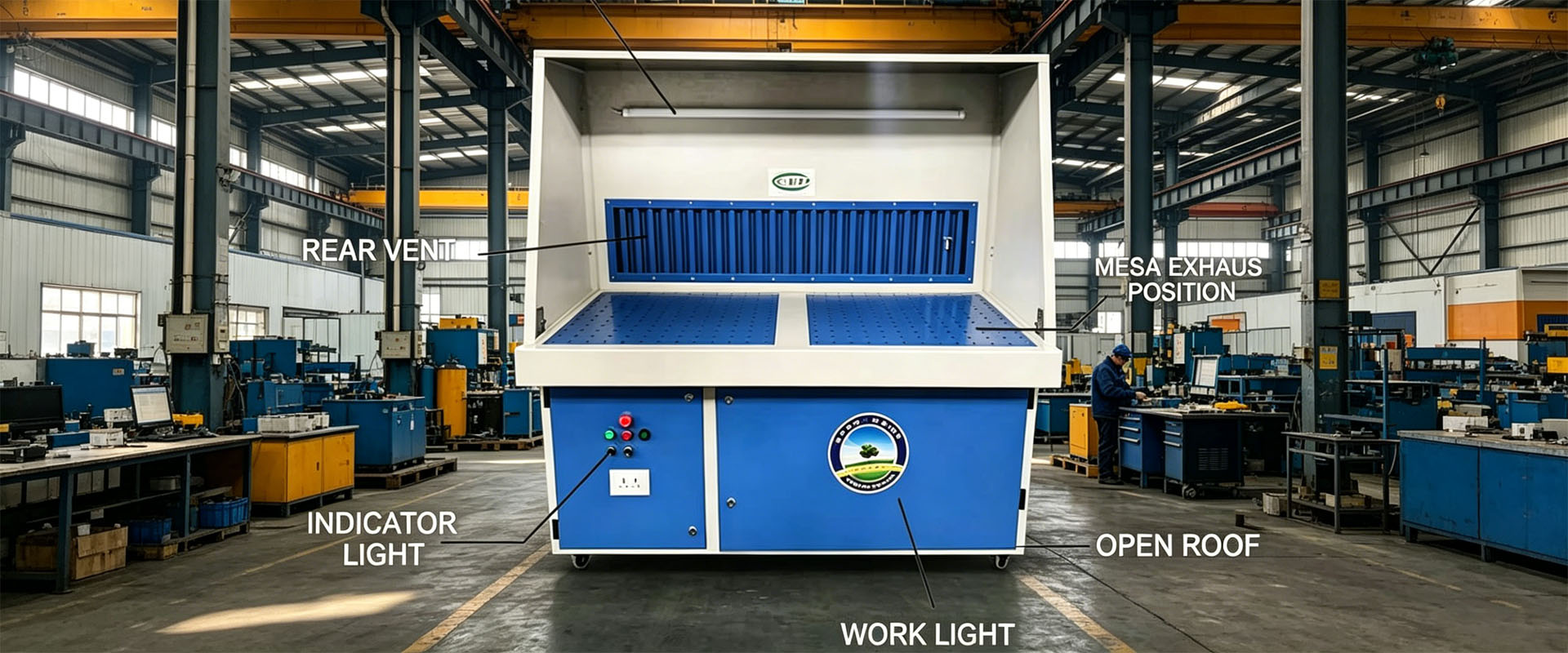

Components of the grinding table
Industrial Dust Control Downdraft Table Key Features
Built-in Filtration System: Equipped with high-efficiency filter cartridges, capturing fine dust particles effectively
Ergonomic Design: Open roof with LED work light and perforated tabletop for easy operation and good visibility
Low Noise & Energy Saving: Quiet fan system reduces operational noise and power consumption
Easy Maintenance: Accessible filter elements for quick replacement and cleaning
Mobile & Flexible: Equipped with casters for easy movement between workstations
Industrial Dust Control Downdraft Table customizable Options: Available in different sizes, materials, and explosion-proof configurations
Application scenarios for grinding tables
Industrial Dust Control Downdraft Table application Scenarios
Our downdraft tables are widely used in metalworking, woodworking, automotive manufacturing, aerospace, electronics assembly, and composite processing. They are ideal for grinding, polishing, deburring, welding, soldering, sanding, and plasma cutting operations, effectively controlling dust, fumes, and particles at the source.With high-efficiency filtration and flexible design, they meet the needs of different industries, from small workshops to large factories, helping you maintain a clean, safe, and compliant working environment.
