Mobile Cyclone Pulse Cartridge Dust Collector
Mobile Cyclone Pulse Cartridge Dust Collector
The working principle of the cyclone dust collector is to use the centrifugal force generated by rotating airflow to separate dust particles from the airflow.
It is mainly used to separate particles larger than 5-15 microns. It has advantages such as a simple structure, moderate resistance, and convenient operation and maintenance, but its collection efficiency for particles smaller than 5 microns is not high, so it is generally used for pre-dust removal.
The cyclone dust collector mainly consists of an inlet pipe, cylindrical body, cyclone, outlet pipe, bottom ash hopper, load-bearing frame, and other components.
The cylindrical body is the main component and contains the cyclone inside. After entering the dust collector, the dust-laden gas rotates downward along the wall of the device, forming an external vortex.
Upon reaching the bottom of the cone, it rotates upward along the axis to form an internal vortex.
Dust particles move toward the outer wall under centrifugal force, and under the combined influence of airflow and gravity, fall along the wall into the ash hopper, thereby separating dust particles from the airflow.
When dust particles accumulate to a certain extent, cleaning is required, usually done manually or with automatic ash cleaning devices

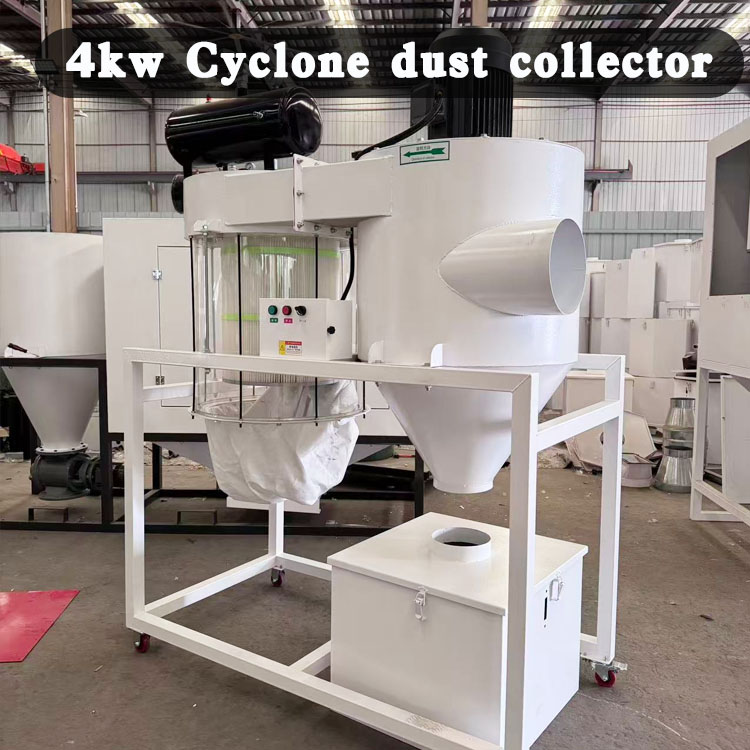

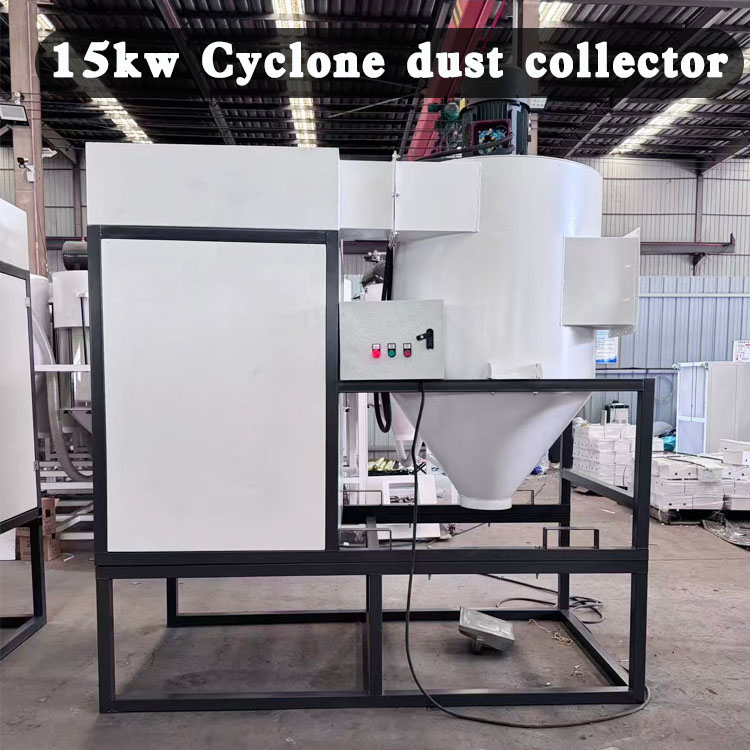

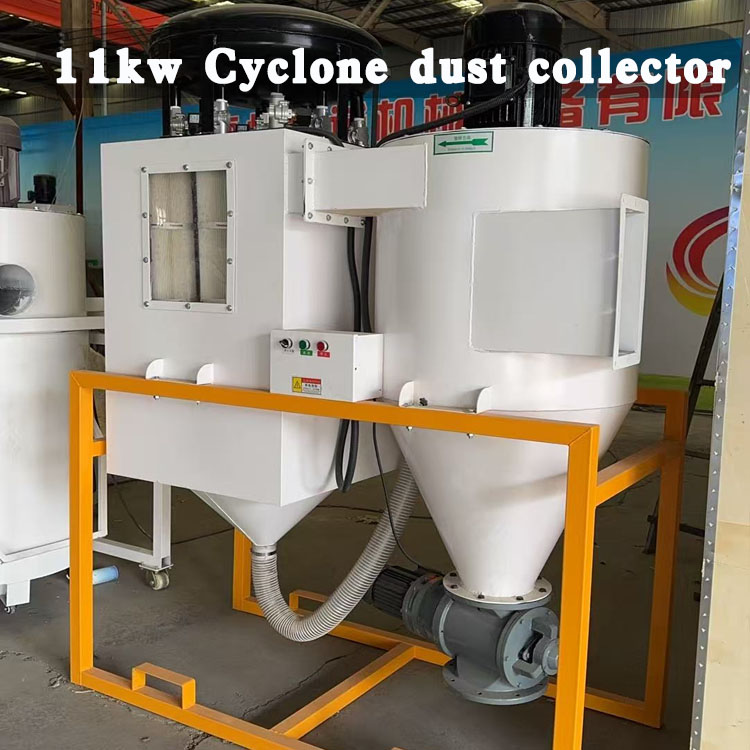

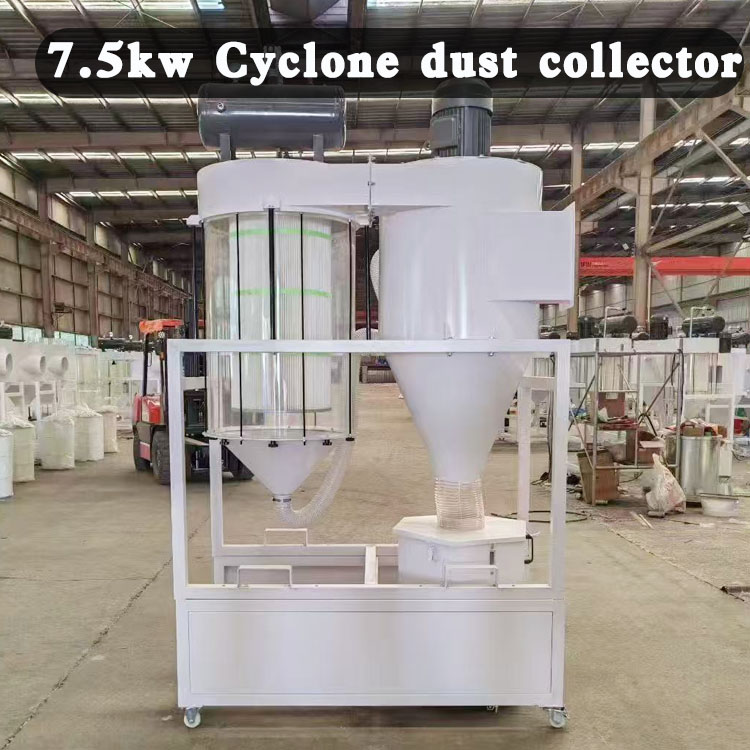

Product display
Mobile Cyclone Pulse Cartridge Dust Collector core Advantages
1.Dual Cyclone Pre-separation Two independent cyclone cones separate most coarse dust first, relieving filter load and prolonging filter service life.
2.Automatic Pulse Cleaning System Built-in pulse valve and air tank automatically blow off dust attached to filters without shutdown, maintaining stable airflow and high purification efficiency.
3.Independent Control Cabinet Centralized button control panel, easy to operate, allows one-key start/stop and pulse cleaning adjustment.
4.Movable Frame with Casters Sturdy metal frame with wear-resistant casters, convenient to transfer between production lines, suitable for multi-station processing.
5.Wide Application Perfect for collecting wood dust, met
Product composition

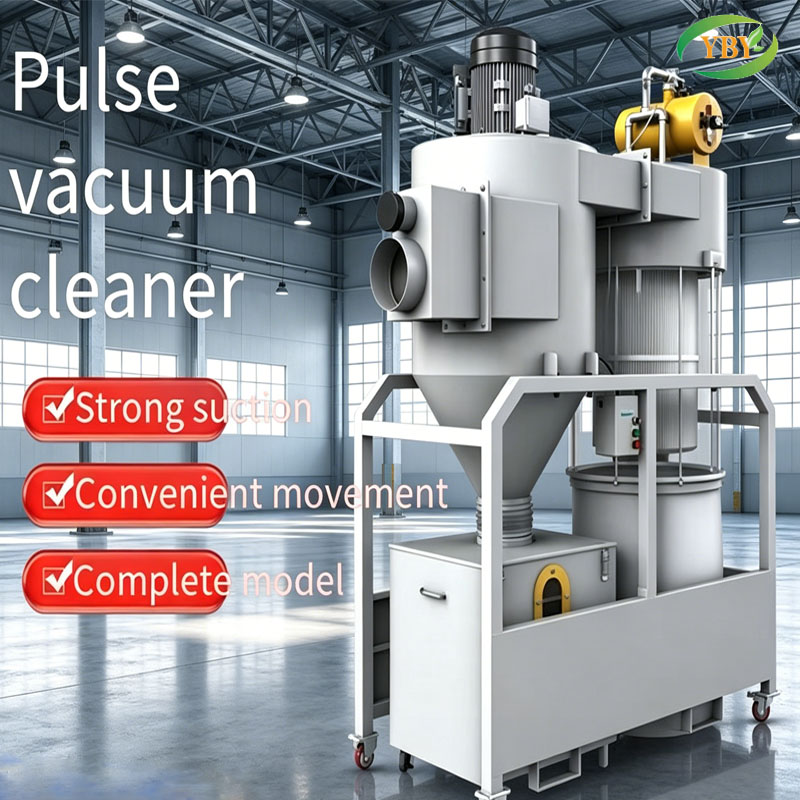

1.Mobile Cyclone Pulse Cartridge Dust Collector Double Cyclone Barrels (Dual Conical Separation Tanks)
Realize primary pre-separation of dust. Heavy, large granular dust falls into the bottom storage barrel under centrifugal force, separating coarse dust before fine dust reaches the filter cartridge.
2.Mobile Cyclone Pulse Cartridge Dust Collector Pulse Air Tank (Yellow Pressure Vessel)
Store compressed air stably to supply the pulse cleaning system. It ensures instantaneous high-pressure air bursts to blow dust off filter cartridges during automatic cleaning.
3. Pulse Cleaning Control Cabinet (Middle Electric Box with Buttons)
Central control core of the whole machine. It sets pulse cleaning interval, controls fan start/stop, and regulates the automatic ash-blowing cycle.
4.Mobile Cyclone Pulse Cartridge Dust Collector High-power Exhaust Motor (Top Right Driving Motor)
Generate strong negative pressure and airflow to suck dust-laden air into the cyclone system. Provides stable suction power for long-hour industrial operation.
5. Mobile Cyclone Pulse Cartridge Dust Collector Flexible Connection Hoses
Connect cyclone barrels and dust storage buckets, guide separated coarse dust into the collection barrel, and seal the air channel to prevent dust leakage.
6. Mobile Cyclone Pulse Cartridge Dust Collector Bottom Dust Storage Barrels
Collect all pre-separated coarse dust and settled waste particles. Sealed design avoids secondary dust flying when dumping waste.
7. Mobile Frame & Universal Casters
Support the whole unit and enable free movement between different workstations. Reinforced steel frame keeps the machine stable during operation.
8. Mobile Cyclone Pulse Cartridge Dust Collector Air Outlet Flange (Right Big Air Duct)
Discharge purified clean air outwards after fine filtration. Can connect external air ducts to guide clean air outside the workshop if needed.
9. Mobile Cyclone Pulse Cartridge Dust Collector Internal Filter Cartridges (Inside Cyclone Tanks, invisible from outside)
Secondary fine filtration: intercept tiny fine dust that cyclone separation cannot remove. Pulse air blows dust off the cartridge surface automatically.
Application scenarios
Application Scenarios
Woodworking factories: cutting, sanding, engraving dust
Metal processing plants: grinding, polishing, deburring dust
Stone, plastic, composite material processing workshops
Hardware, furniture, handicraft manufacturing lines
