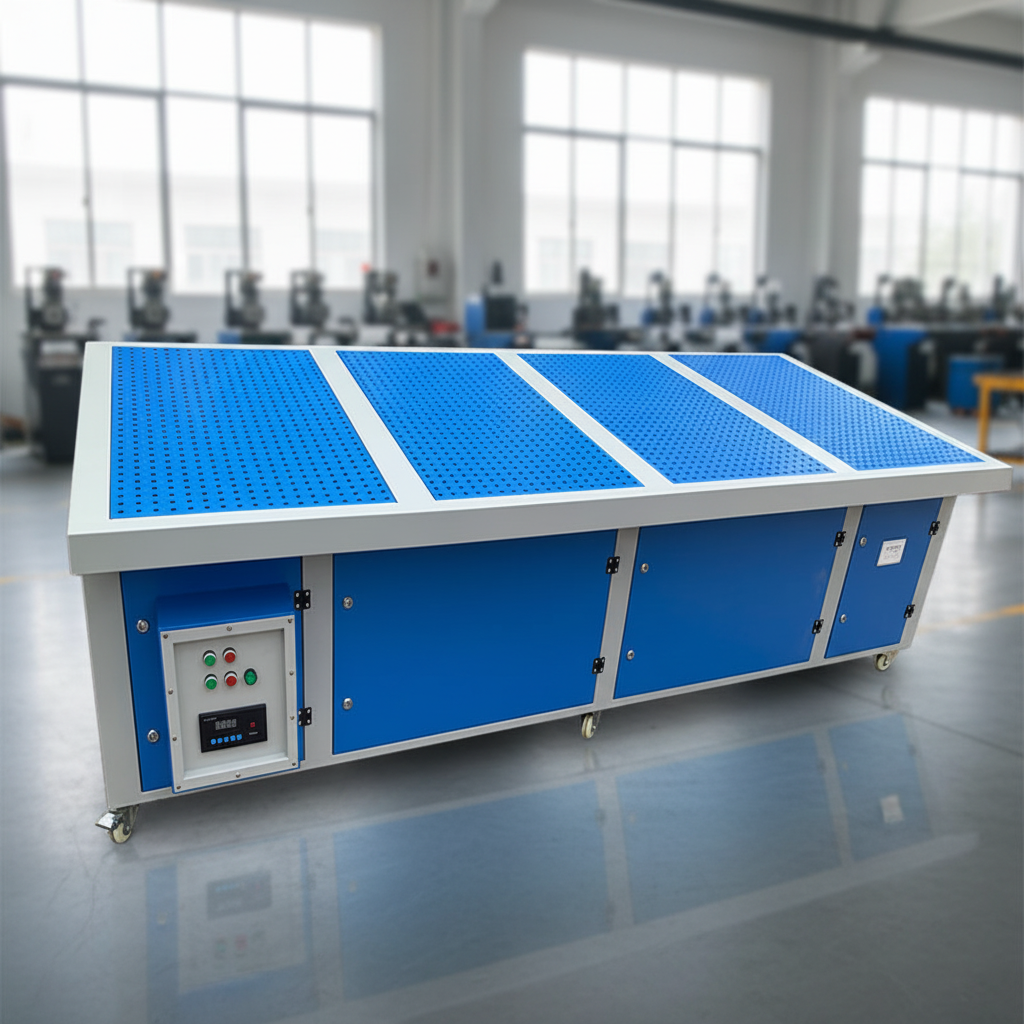

Industrial flat descending grinding table with dust removal function, used for deburring metal and polishing wood
1. IIndustrial flat descending grinding table ntroduction to the Flat Grinding Table
The flat grinding table (also known as the flat grinding dust removal workbench)
is an environmentally friendly workstation device integrating a workbench + dust removal system.
The table surface features a flat porous/mesh structure, equipped with a built-in negative pressure dust collection, filtration, and cleaning unit, requiring no external piping.
It is mainly used for grinding, polishing, and deburring workpieces made of metal, wood, stone, plastic, etc., collecting dust locally and purifying the workstation environment.

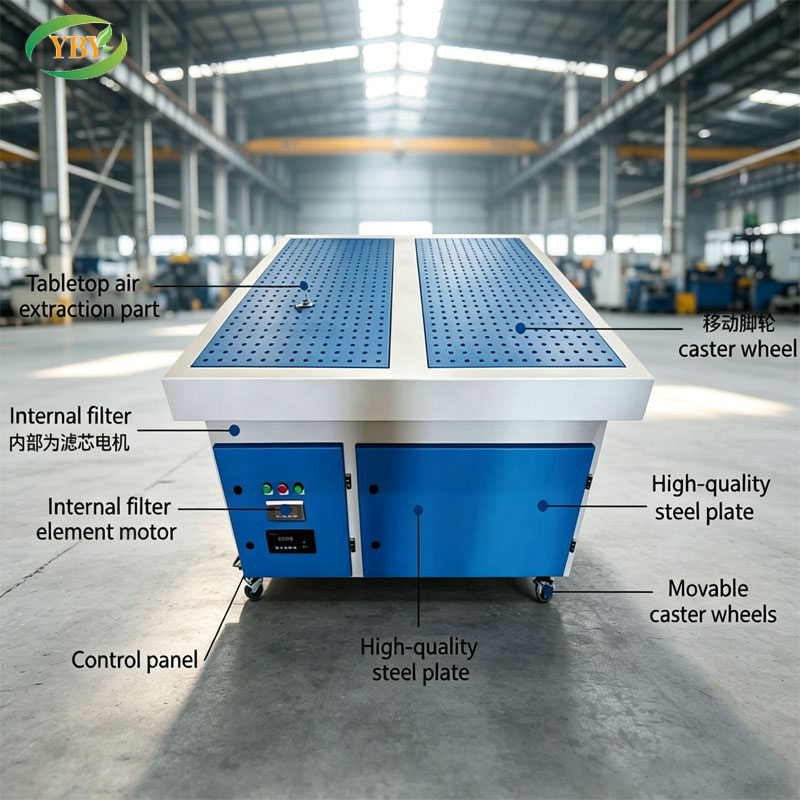

Core structureFlat workbench:
porous/grille flat plate, load-bearing and wear-resistant, serving as the work surface and also as an air inlet.
Negative pressure air flow system: built-in centrifugal fan provides overall negative pressure, with multi-directional suction on the countertop, sides, and front.Multi-stage filtration unit: guide plate + filter cartridge / filter element, intercepts dust particles of different particle sizes, with a filtration precision generally of 5–10μm.Dust collection and cleaning structure: bottom drawer-type dust bin;
Industrial flat descending grinding table there are two types: manual cleaning and pulse automatic back-blowing cleaning.Noise reduction and frame: The fan is soundproofed, the entire machine is made of carbon steel, with a compact structure that supports single or double workstation operations.

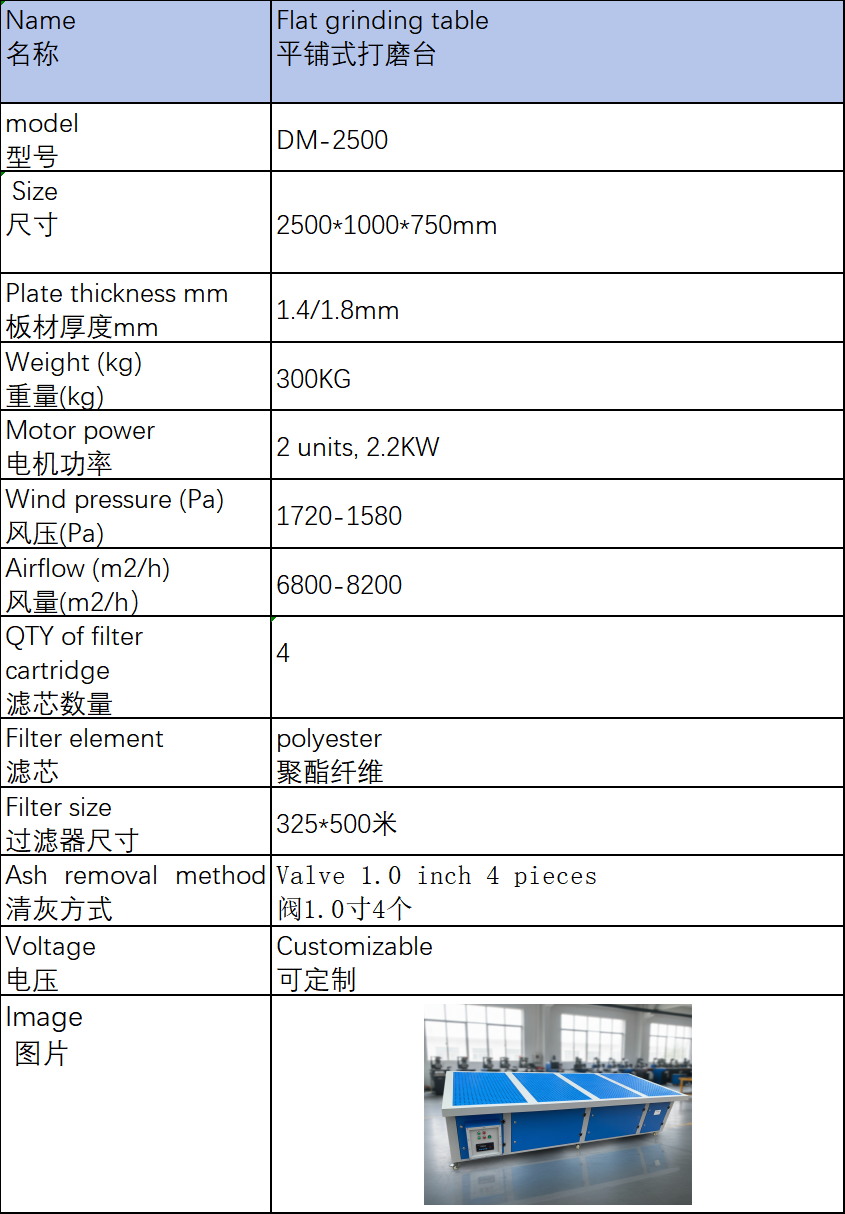

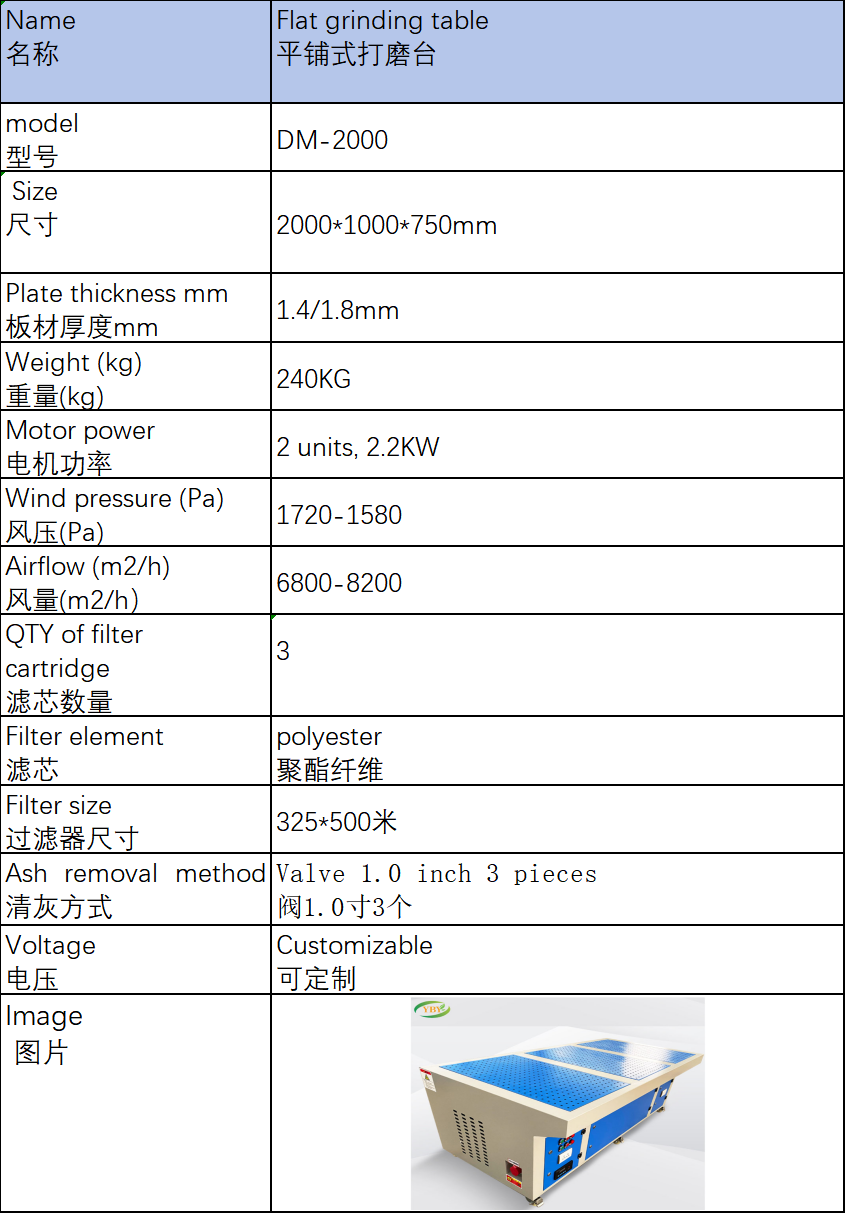

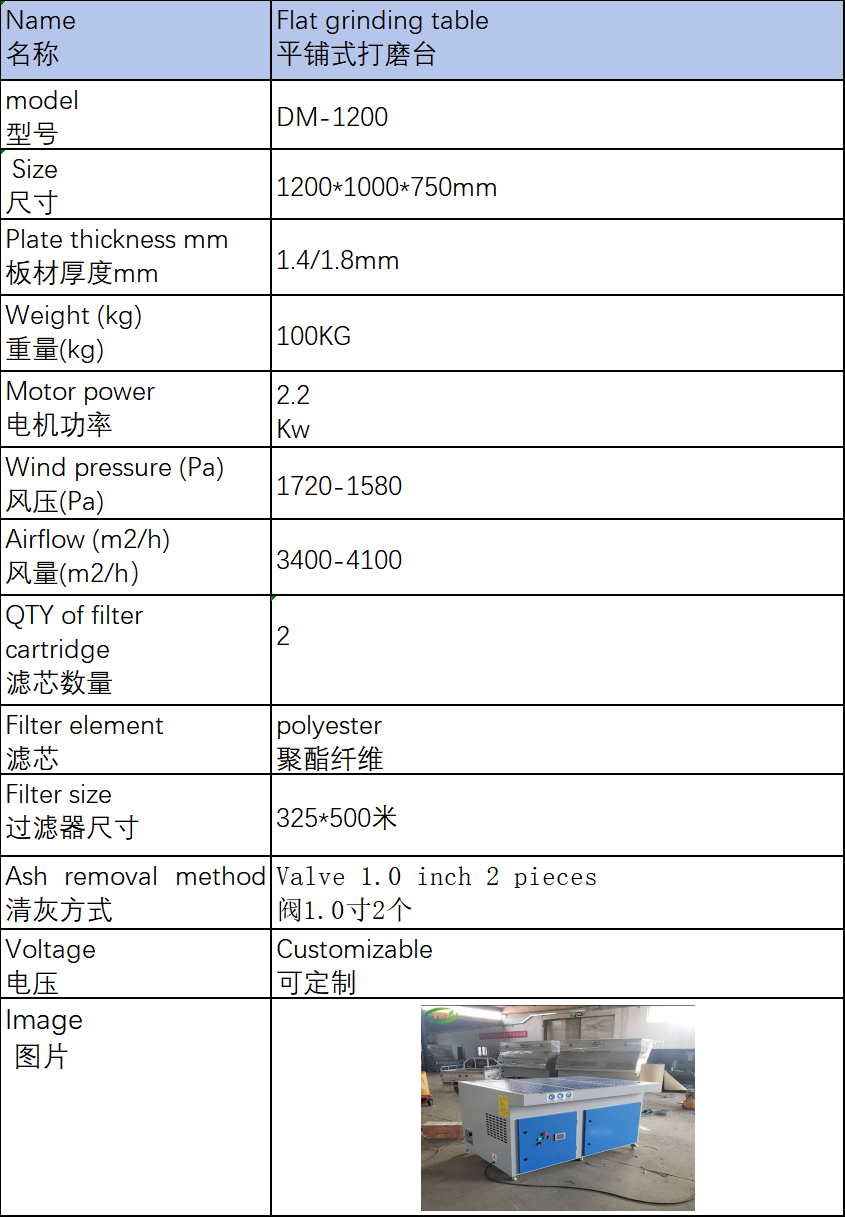

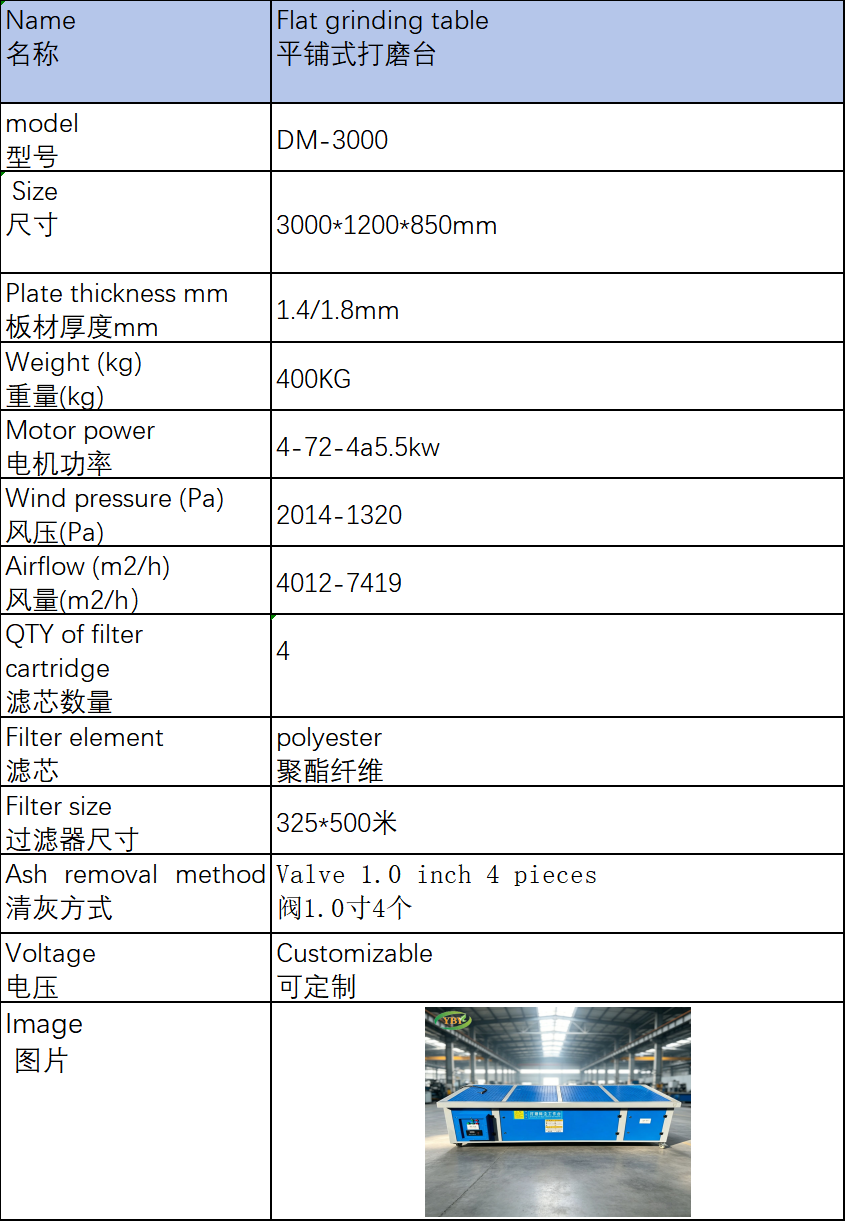

Various models of flat grinding tables

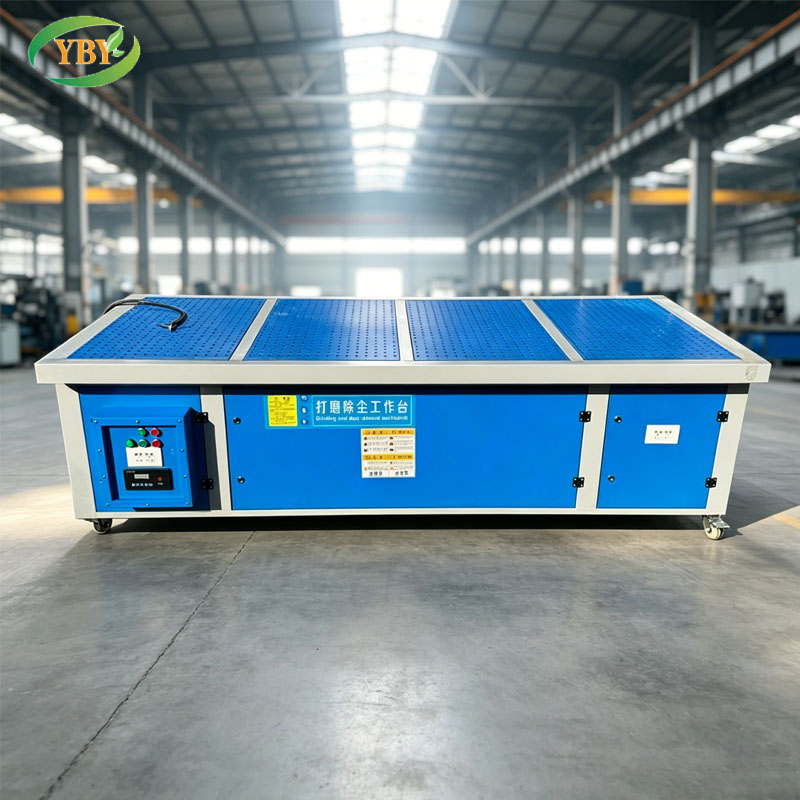

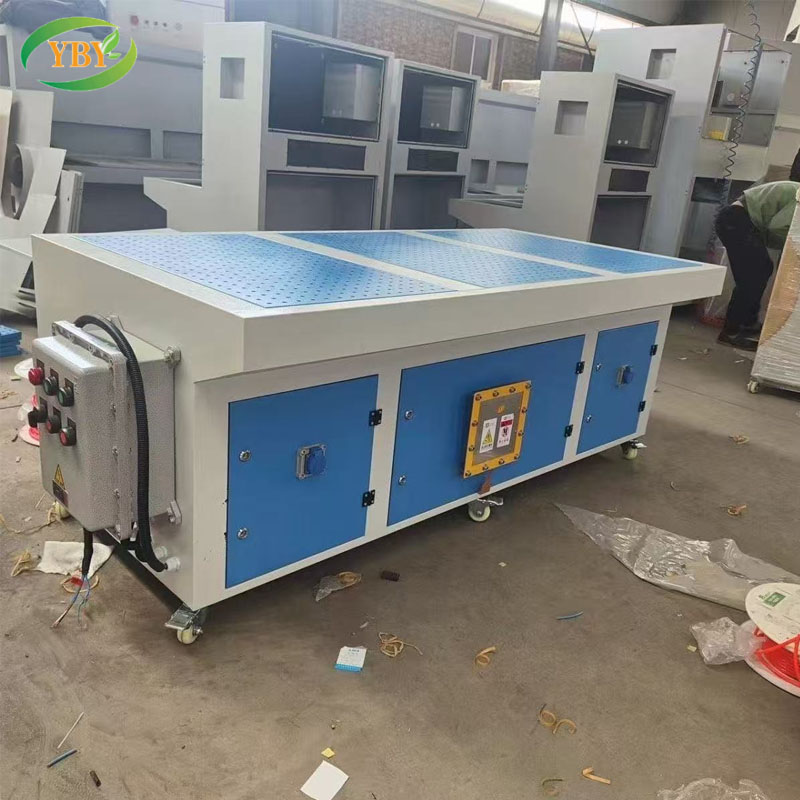

Product display
2. Industrial flat descending grinding table Working Principle (Negative Pressure Adsorption + Gravity Sedimentation + Filter Cartridge Filtration + Ash Cleaning Circulation)
The entire machine relies on centrifugal fans to create internal negative pressure, which classifies grinding dust and operates in four cycle processes:
Negative pressure suctionWhen the fan starts, negative pressure forms on the worktable surface, sides, and front air outlets, quickly drawing dust generated during grinding into the equipment with airflow to prevent dust from escaping.
Large particles settle by gravityDust-laden airflow passes through the internal guide plate, where large dust particles fall directly due to collision and gravity, entering the bottom drawer-type dust collection box and completing coarse primary separation.
Industrial flat descending grinding table with dust Fine dust filter cartridge filtrationFine suspended dust enters the filter chamber with the airflow and is intercepted on the outer surface of the filter material by the filter cartridge/cartridge; Clean air passes through the filter cartridge and is discharged by a fan (can circulate indoors).
Industrial flat descending grinding table with dust Filter element cleaning cycleDust on the filter element surface gradually thickens; start the equipment for cleaning:Manual model: manually shake the joystick to shake off accumulated dust;
Industrial flat descending grinding table pulse model: High-pressure airflow reverse-blows the filter element, causing dust to fall into the dust collection box while maintaining continuous filtration capacity.
3. Applicable ScenariosDust-generating workstations for hardware, auto parts, woodworking, stone, plastics, welding and grinding, polishing, plasma cutting, and more
