Water Curtain Cabinet: Efficient Paint Mist Treatment for Spray Booths
Introduction
A water curtain cabinet, also known as a spray booth water curtain cabinet, is a specialized air purification equipment designed to treat paint mist, dust, and harmful gases generated during painting and spraying processes. It is widely used in industries such as furniture manufacturing, metal processing, automotive repair, and handicraft production, providing a clean and safe working environment while meeting environmental protection requirements.
Working Principle
The core working principle of the water curtain cabinet is the wet scrubbing method. When polluted air containing paint mist enters the cabinet, it first hits a continuous water curtain formed by circulating water. Most of the paint mist particles are captured by the water curtain and flow into the water tank below. The remaining fine particles are then further filtered through the water bath and multi-stage baffles. After purification, the clean air is discharged through the exhaust system. The paint residue in the water tank can be collected and treated separately, ensuring efficient pollutant removal and easy maintenance.
Key Features
– High Efficiency: The water curtain and multi-stage filtration system can capture more than 95% of paint mist and dust, effectively reducing air pollution.
– Easy Maintenance: The water tank is designed with a large opening for easy cleaning and sludge removal. The water circulation system is simple and reliable, reducing daily maintenance costs.

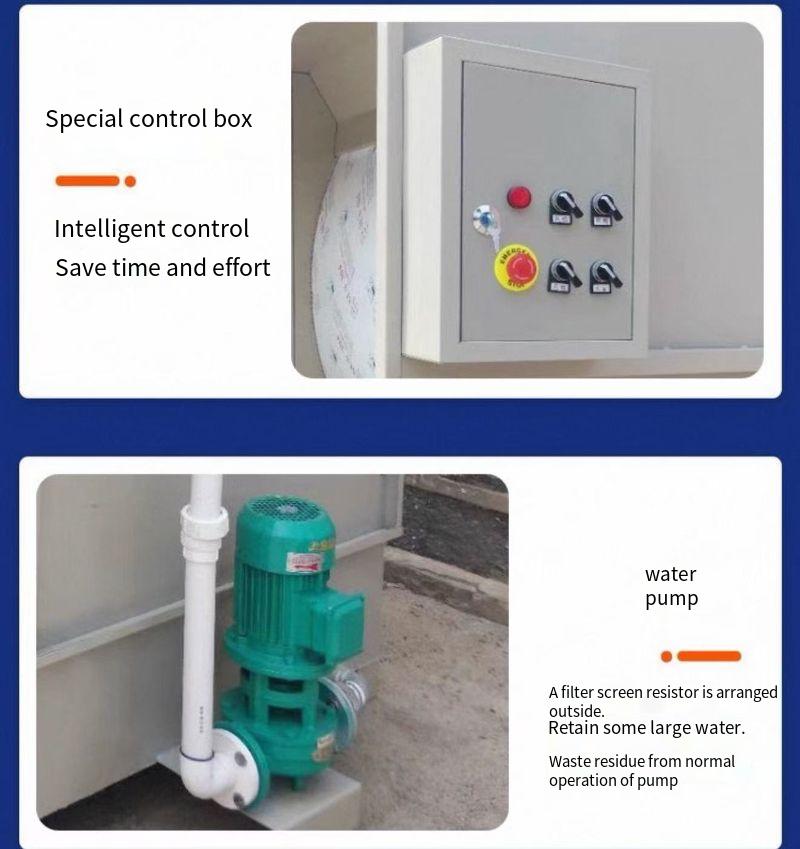

– Customizable Size: Available in various widths and heights to match different spray booth sizes and production needs. Optional configurations include water pumps, exhaust fans, and filter layers.

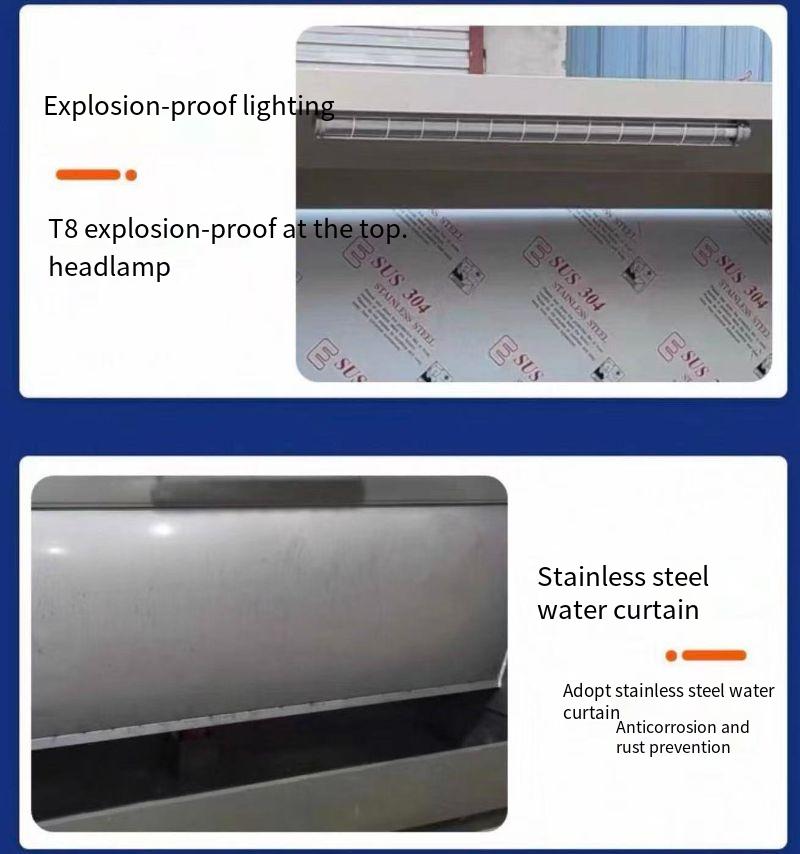

– Safe and Stable: Equipped with anti-corrosion water tanks and explosion-proof electrical components, ensuring safe operation even with flammable paint mist.
Professional quality, focusing on every detail
Applications
Our water curtain cabinets are suitable for:
– Furniture and woodworking spray booths
– Metal surface painting workshops
– Automotive and motorcycle repair shops
– Plastic and handicraft spraying processes
– Small to medium-sized industrial painting production lines
Problems Solved
– Environmental Compliance: Effectively reduces paint mist emissions to meet local environmental standards, avoiding fines and shutdown risks.
– Worker Safety: Eliminates exposure to toxic paint mist and harmful gases, improving air quality in the workplace.
– Equipment Protection: Prevents paint mist from polluting exhaust fans and ventilation systems, extending the service life of related equipment.
– Cost Savings: Captured paint residue can be recycled, reducing material waste and operating costs.
With reliable performance, simple operation, and flexible customization, our water curtain cabinet is an ideal solution for paint mist treatment in various spray booth applications. Contact us to find the right model for your production needs.
In addition to standard models, we offer fully customizable water curtain cabinets tailored to your specific production needs. Whether you require a compact unit for small workshops or a large-scale system for high-volume spray booths, we can adjust the size, water flow rate, and filtration stages to match your requirements. Our cabinets are built with corrosion-resistant materials, ensuring long service life even with continuous use.
We also provide comprehensive after-sales support, including installation guidance, routine maintenance tips, and spare parts supply. With our reliable water curtain cabinets, you can effectively manage paint mist emissions, protect your workers, and maintain compliance with environmental regulations.

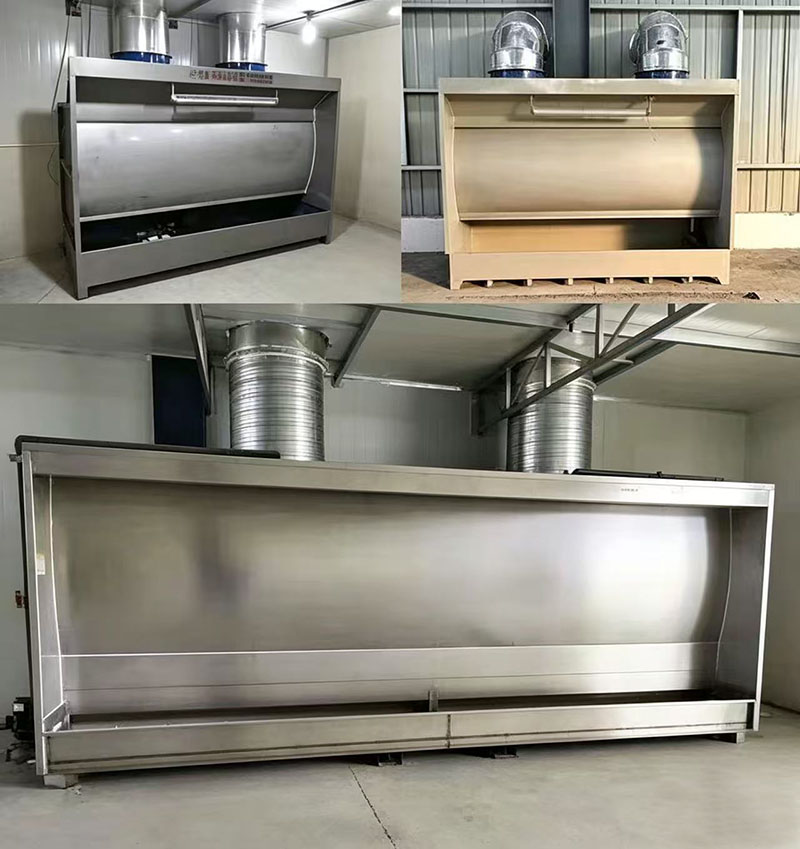

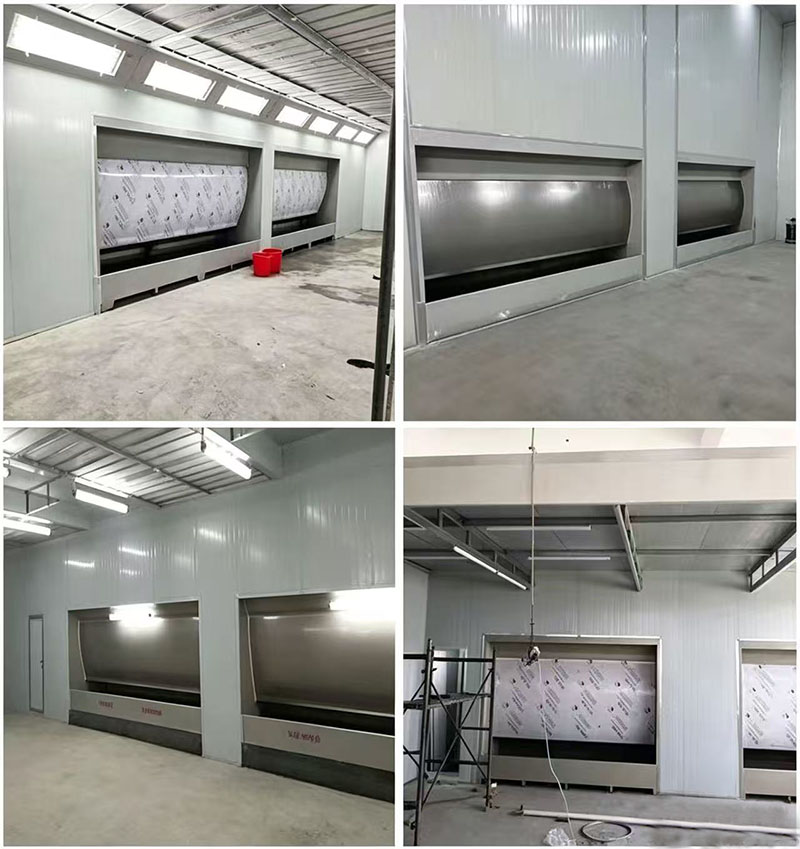

Engineering case footage
Regarding the water curtain cabinet

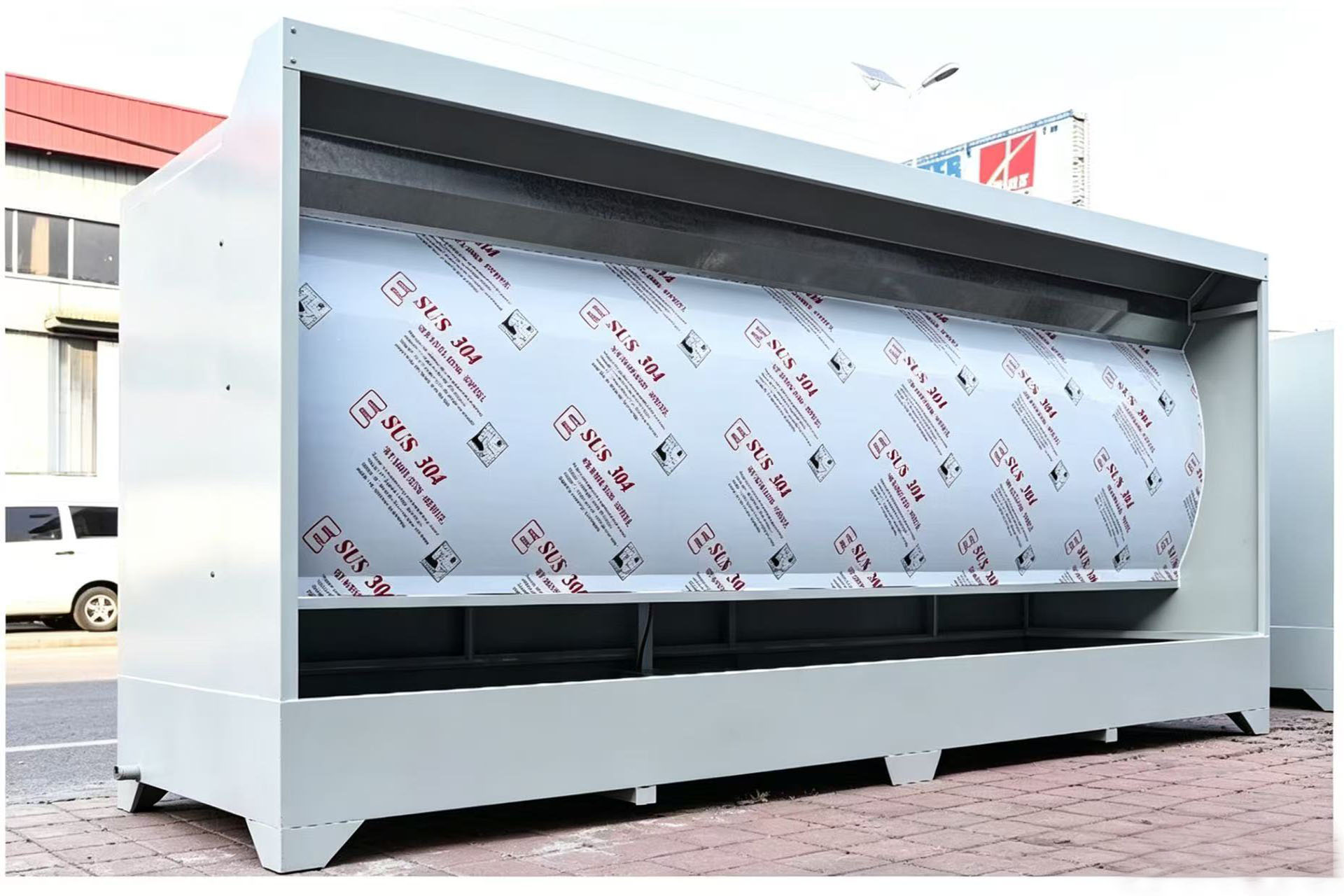

Our water curtain cabinet comes with diverse standard models to meet different production demands, covering single-station, double-station and multi-station types for flexible selection. In terms of material, it adopts high-quality galvanized steel as the main frame, with 304 stainless steel for key water curtain plates and water tanks, featuring strong corrosion resistance, sturdiness and long service life; premium stainless steel upgrade is also available.
We have a full range of standard sizes, and we also support personalized customization services. You can customize the width, depth and height of the cabinet according to your workshop space and production scale. In addition, we can customize functions, materials and structural styles (single-sided/double-sided) to match your actual working conditions, fully satisfying your exclusive production needs for painting waste gas treatment.
