Efficient water curtain cabinet, used for spray painting dust removal and defogging, energy-saving, customizable
Efficient water curtain cabinet Introduction:
Efficient water curtain cabinet the water curtain cabinet is an environmentally friendly device characterized by simple operation, stable use, and safety. With industrial development, the environmentally friendly water curtain cabinet (spray painting table) produced by Wenzhou Longxing has become in short supply in the market. It is mainly used for treating exhaust gases (paint substances) in product painting workshops, providing everyone with a good working environment.
Our factory's high-efficiency, eco-friendly water curtain cabinet (spray painting station) mainly uses water to filter exhaust gases (paints) from the painting workshop, making it convenient and energy-saving to use. Use water to inject the exhaust gas (paint) into the drain, then change the water regularly.
The environmentally friendly water curtain cabinet (spray painting station) mainly uses a self-priming pump to circulate water evenly down the curtain panel. The exhaust gas (paint) sprayed from the spray gun is sprayed by the water from the water curtain panel and then into the pool below. A small portion of the exhaust gas (paint) is discharged outside the workshop by the fan above through the exhaust duct. This ensures that there is little exhaust (paint residue) in the workshop, providing everyone with a good working environment.

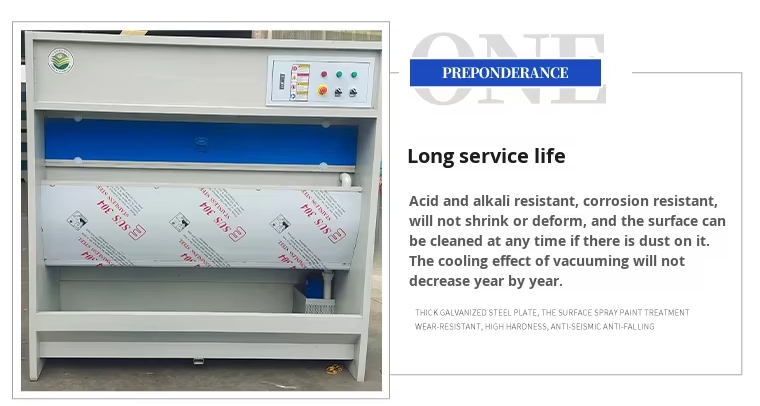

Long lifespan

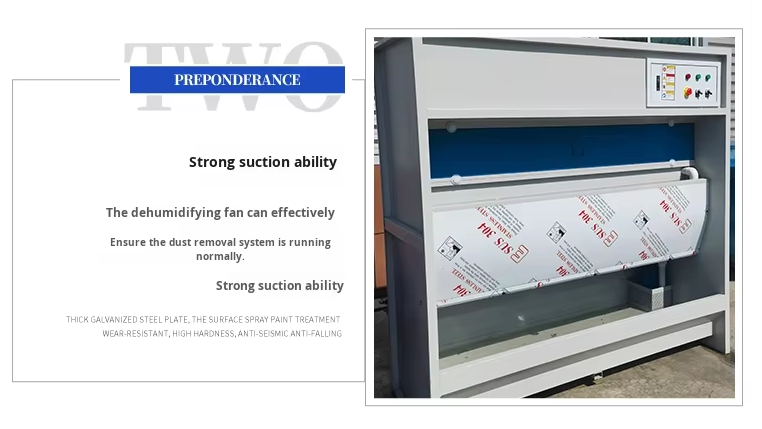

Strong suction
Efficient water curtain cabinet Water curtain formation:
The water pump draws water from the tank to the top overflow groove, allowing the water to flow evenly down the inclined plate, forming a continuous water curtain (usually 3-5mm thick, flow rate 0.5-1.2m/s).
Efficient water curtain cabinet Paint mist adsorption:
The paint mist generated during spraying is directed by negative pressure airflow into the water curtain, where particles settle after collision with water. Experimental data show that the water curtain can intercept over 90% of paint mist.

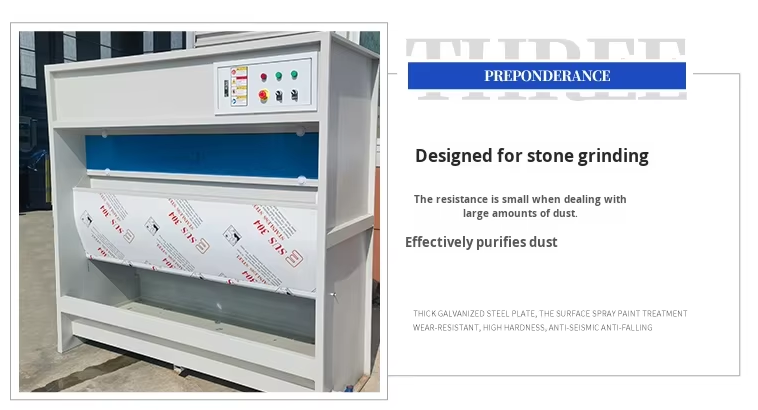

High purification

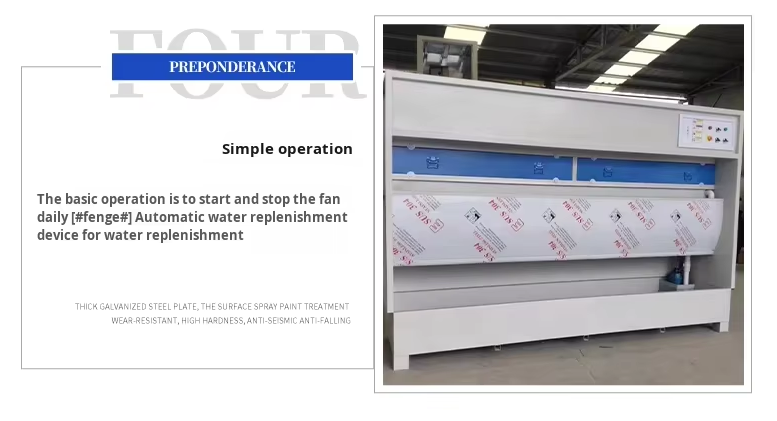

Simple operation
Efficient water curtain cabinet Airflow circulation:
The fan exhausts the purified air, and some equipment is equipped with activated carbon secondary filtration to ensure that VOCs emissions meet the standards (such as EU standard ≤50mg/m³).

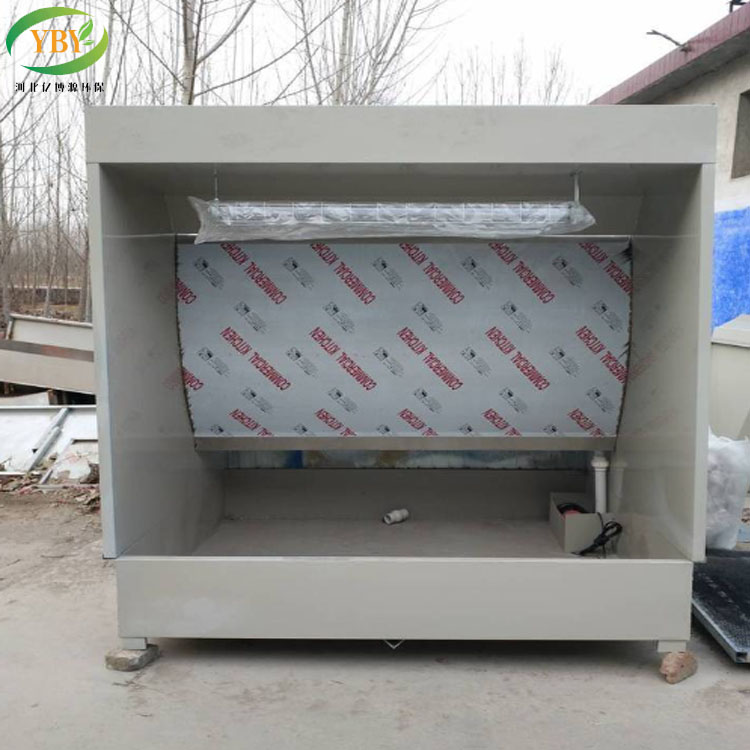

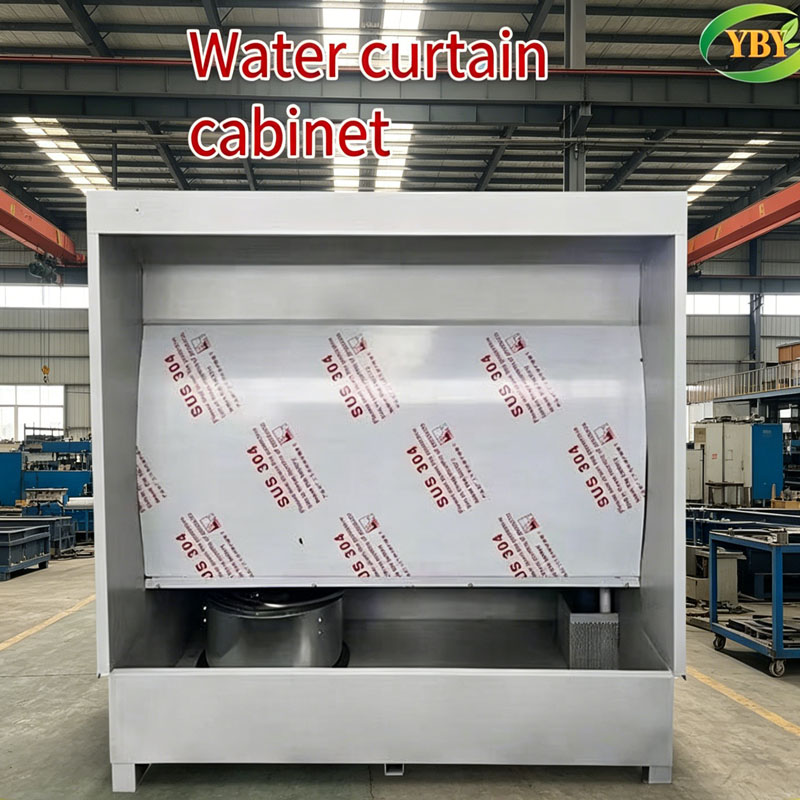

Efficient water curtain cabinet The structure of a water curtain booth mainly consists of three parts: a bottom water tank, a front spray booth, and a rear spray chamber. It primarily utilizes a water pump for water circulation and spraying, creating a water curtain on one or three sides of the booth or equipment. This forms a spray pattern within the spray chamber. Excess paint mist generated during spraying flows down the water curtain into the water tank, while the remainder is washed by the water curtain and filtered by a filter before being drawn away by an exhaust fan.
Hebei Yiboyuan Environmental Protection Machinery Manufacturing Co., Ltd.is located in Jiaohe Industrial Zone, Botou City, Hebei Province, known as the"hometown of casting" and "hometown of environmental protection".
It has goodgeographical advantages and rich industrial heritage. Located north of Beijing andTianjin, and east of Bohai Sea, the Beijing Shanghai Railway, Beijing Fuzhou Expressway, and national highways run through the entire area. Convenienttransportation and superior location,
we are a specialized new environmentalprotection equipment company that integrates the design, manufacturing, sales,and installation of dust collectors.
Yiboyuan Environmental Protection is a company with over 16 years ofexperience in design, development, manufacturing, installation, andcommissioning.
A new type of environmental protection equipment company thatintegrates after-sales service.
The company produces various specifications ofdust collector equipment and various dust removal accessories.
The dust collectorequipment is strictly controlled from design, manufacturing, and inspection, andthe manufacturing standards are strictly implemented according to environmentalprotection process regulations, achieving one-step completion.
Our companyalways adheres to strict factory management, quality trust, and technologicalinvestment as the breakthrough point to produce high-quality bag dust collectorequipment.
