Industrial Mobile Cyclone Dust Extractor Dual Cylinder Pulse Cyclone Dust Collector
Our mobile double-barrel cyclone dust collector is a high-efficiency industrial dust separation device designed for heavy-duty factory dust control. Equipped with auto pulse self-cleaning system, independent control panel and mobile casters, it efficiently captures large volumes of wood powder, metal grinding dust, plastic particles and industrial debris. The dual-cone cyclone structure realizes primary dust separation, greatly extending filter service life. Built-in air storage tank and stable fan ensure continuous, powerful air suction, ideal for grinding, polishing, cutting and sanding workshops.
Industrial Mobile Cyclone Dust Extractor application Scenarios:
Woodworking
cutting, sanding, engraving dustMetal processing plants: grinding, polishing, deburring dustStone, plastic, composite material processing workshopsHardware, furniture, handicraft manufacturing lines
Industrial Mobile Cyclone Dust Extractor technical Highlights：
High air volume & strong negative pressure, fast dust captureLow noise stable operation, durable motorClosed dust bucket for easy waste dumping, no secondary pollutionCompact integrated structure, saves factory floor space
Industrial Mobile Cyclone Dust Extractor the working principle of the cyclone dust collector is to use the centrifugal force generated by a rotating flow of dust-laden air to separate particulate pollutants from the gas.
Each component of a cyclone dust collector has a certain size ratio. Any change in proportional relationship can affect the efficiency and pressure loss of the cyclone dust collector, with the dust collector diameter, air inlet size, and exhaust pipe diameter being the main influencing factors.
When using it, it should be noted that when a certain threshold is exceeded, favorable factors can also turn into unfavorable ones. Additionally, some factors are beneficial for improving dust removal efficiency but increase pressure loss, so adjustments to all factors must be taken into account.
The structure of a cyclone dust collector includes an intake pipe, exhaust pipe, cylindrical body, conical body, and ash hopper. The specific work process is as follows:
The dust-laden airflow enters the dust removal chamber at a certain speed from the tangential direction of the cyclone dust collector, forming a strong rotating airflow.During rotation, solid particles in the airflow are subjected to centrifugal force and thrown toward the outer wall of the dust collector.
Because particulate matter is heavier than air, it is more easily separated by centrifugal force.Particles thrown toward the outer wall move downward along the wall surface and fall into the ash collection hopper under gravity.
The ash hopper is usually located at the bottom of the dust collector, making it easy to collect and process separated particles.As the rotational radius decreases and centripetal force acts on it, the rotating airflow gradually converges toward the center area of the dust collector.
At this point, the airflow speed decreases and the pressure rises, eventually forming a relatively stable updraft.
This updraft carries a small amount of fine particles that are not fully separated and continues to move upward, but most of it has been effectively removed.
Finally, the clean gas is discharged through the top exhaust port of the dust collector.
Product Composition
1.Industrial Mobile Cyclone Dust Extractor Double Cyclone Barrels (Dual Conical Separation Tanks)
Function ：Realize primary pre-separation of dust. Heavy, large granular dust falls into the bottom storage barrel under centrifugal force, separating coarse dust before fine dust reaches the filter cartridge.
2. Pulse Air Tank (Yellow Pressure Vessel)

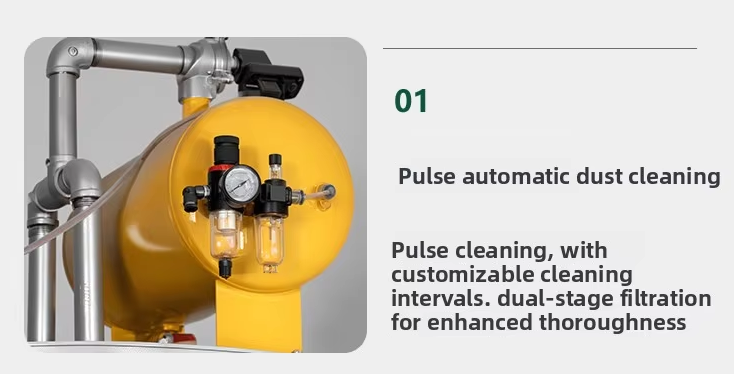

Function ：Store compressed air stably to supply the pulse cleaning system. It ensures instantaneous high-pressure air bursts to blow dust off filter cartridges during automatic cleaning.
3. Industrial Mobile Cyclone Dust Extractor

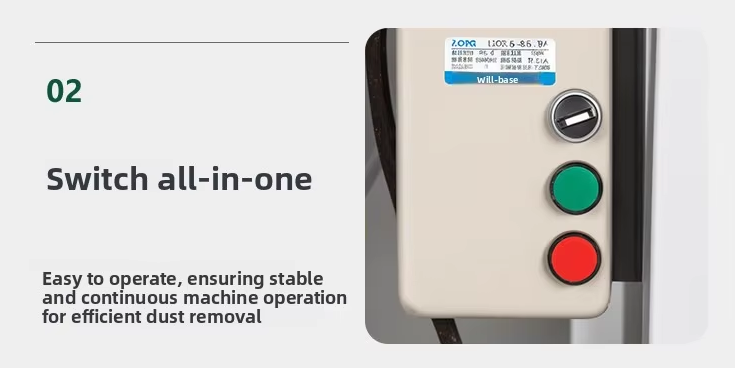

Pulse Cleaning Control Cabinet (Middle Electric Box with Buttons)
Function ：Central control core of the whole machine. It sets pulse cleaning interval, controls fan start/stop, and regulates the automatic ash-blowing cycle.
4. Industrial Mobile Cyclone Dust Extractor
High-power Exhaust Motor (Top Right Driving Motor)
Function： Generate strong negative pressure and airflow to suck dust-laden air into the cyclone system. Provides stable suction power for long-hour industrial operation.
5.Industrial Mobile Cyclone Dust Extractor
Flexible Connection Hose
Function： Connect cyclone barrels and dust storage buckets, guide separated coarse dust into the collection barrel, and seal the air channel to prevent dust leakage.
6. Industrial Mobile Cyclone Dust Extractor
Bottom Dust Storage Barrels
Function ：Collect all pre-separated coarse dust and settled waste particles. Sealed design avoids secondary dust flying when dumping waste.

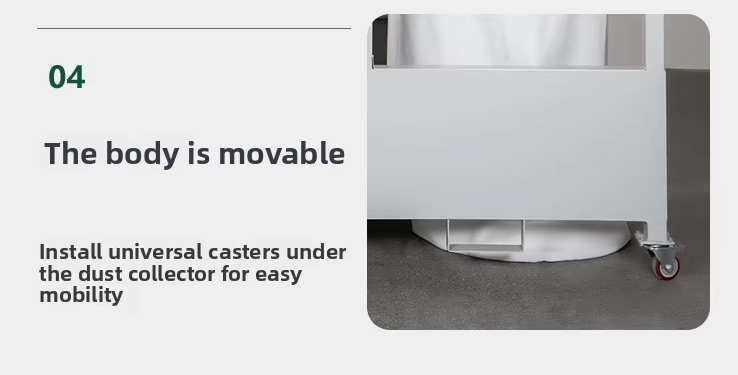

7. Mobile Frame & Universal Casters
Function： Support the whole unit and enable free movement between different workstations. Reinforced steel frame keeps the machine stable during operation.
8. Air Outlet Flange (Right Big Air Duct)
Function： Discharge purified clean air outwards after fine filtration. Can connect external air ducts to guide clean air outside the workshop if needed.
9. Internal Filter Cartridges (Inside Cyclone Tanks, invisible from outside)

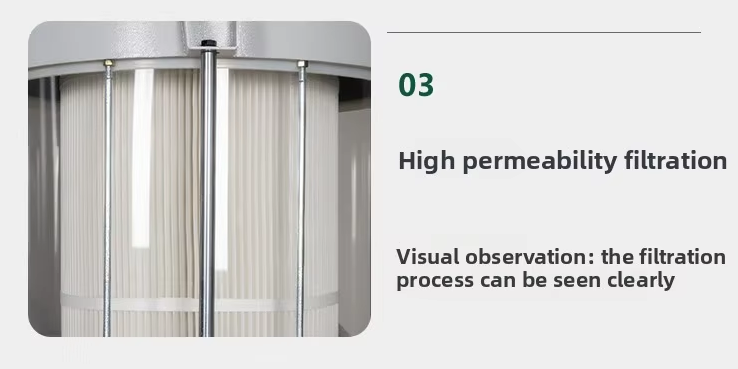

Function ：Secondary fine filtration: intercept tiny fine dust that cyclone separation cannot remove. Pulse air blows dust off the cartridge surface automatically.
Product application scenarios
Grain dust
Metal processing
warehouse
Factory workshop
