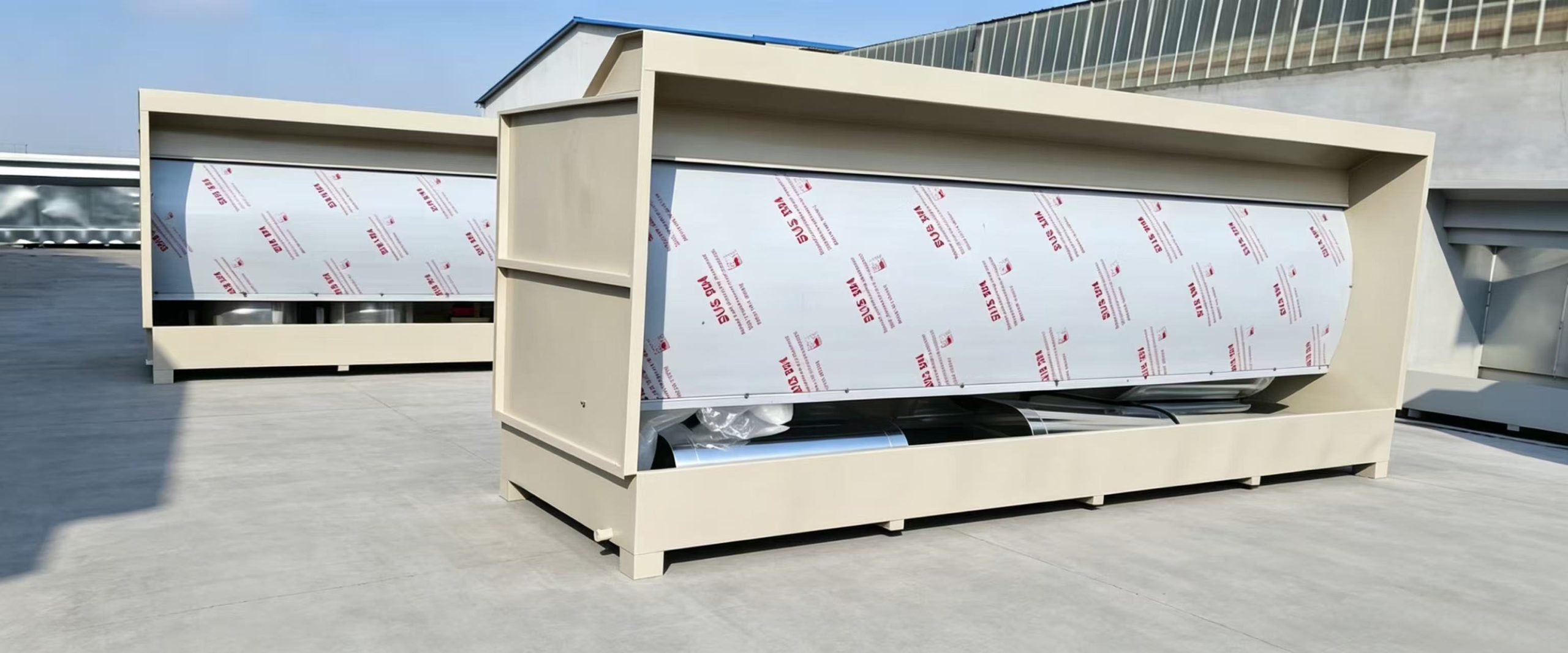

Polishing and Painting Water Curtain Cabinet: PP Spray Booth Solution
Polishing and painting water curtain cabinet is an essential piece of equipment for industrial spray booths, designed to effectively capture paint mist and maintain a clean working environment.
Made of high-quality PP material, this water curtain cabinet offers excellent corrosion resistance and long service life.
The working principle of the paint mist water curtain cabinet is based on the combination of water curtain capture and water bath filtration:
1. Water Circulation: The water pump in the cabinet pumps water from the bottom tank to the top overflow trough, forming a continuous, smooth water curtain on the front baffle plate.
2. Paint Mist Capture: When the polluted air with paint mist is drawn into the cabinet by the exhaust fan, it first hits the flowing water curtain. Most of the paint mist particles are captured and dissolved by the water flow, then flow down into the bottom water tank.
3. Secondary Filtration: The remaining fine paint mist passes through the water bath and multiple baffles inside the cabinet. The air is forced to turn and collide with the water, further trapping tiny paint mist particles.
4. Purified Air Discharge: After passing through the water curtain and water bath filtration, the clean air is discharged through the top exhaust outlet, meeting environmental emission standards. The paint sludge settled in the water tank can be regularly cleaned, and the circulating water can be treated with flocculants to extend its service life.
Built for safe, efficient, and low-maintenance operation, ourpolishing and painting water curtain cabinet paint mist water curtain cabinet comes with four key details, and pairs perfectly with our other industrial air purification solutions like Spray tower for a complete workshop setup.
These include an intelligent special control box for one-key start/stop and emergency stop functions that save time and effort, explosion-proof T8 lighting to ensure bright, hazard-free visibility in flammable spray booth environments.
It also features a high-efficiency water pump with an external filter screen to prevent clogging by paint sludge and extend pump life, and a durable PP water curtain that forms a uniform, corrosion-resistant water flow to capture paint mist effectively。
It runs smoothly in line with the exhaust system, ensuring stable negative pressure and uniform water curtain formation. The PP body maintains a clean and bright appearance, while the explosion-proof lighting and intelligent control system work perfectly with the spray booth’s lighting and power configuration.

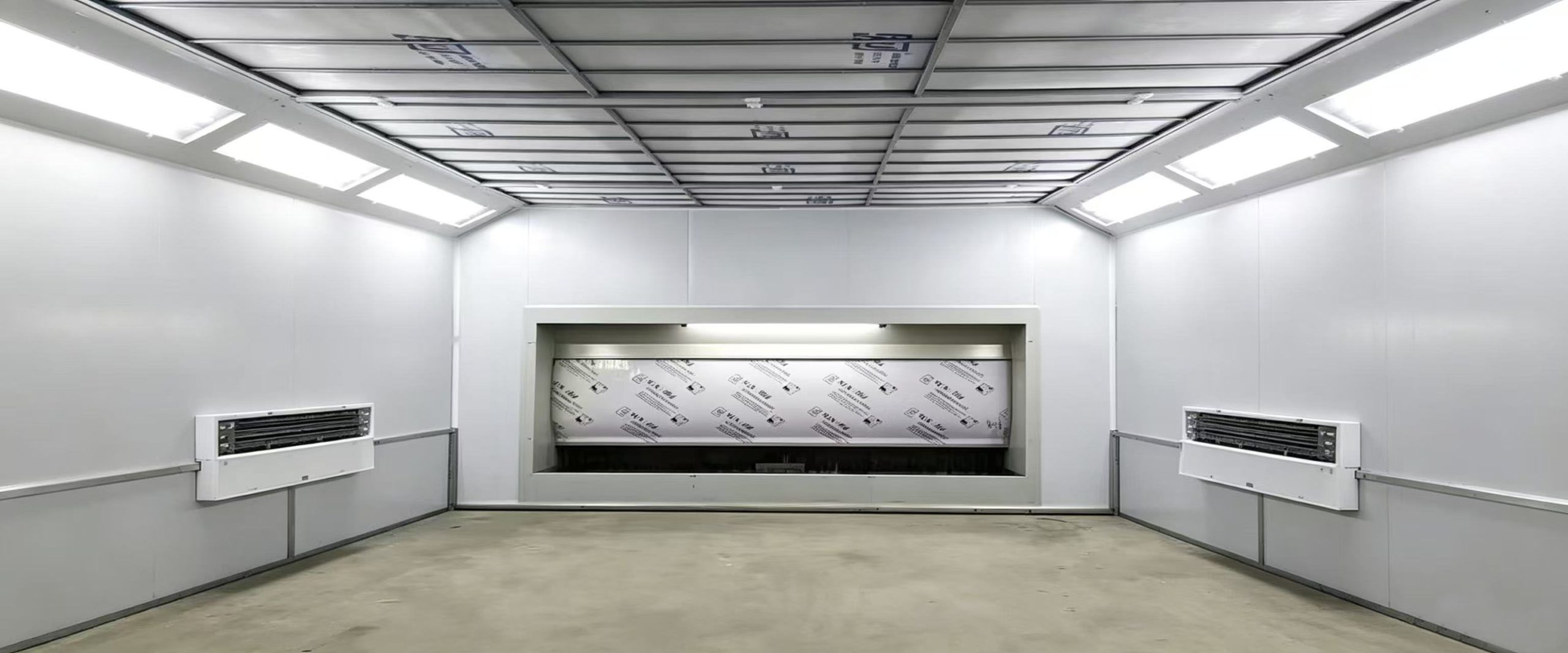

After professional installation, the paint mist water curtain cabinet integrates seamlessly into your spray booth environment, presenting a neat, compact, and space-saving layout.
It runs smoothly in line with the exhaust system, ensuring stable negative pressure and uniform water curtain formation. The PP body maintains a clean and bright appearance, while the explosion-proof lighting and intelligent control system work perfectly with the spray booth’s lighting and power configuration.
The installed units can be arranged side by side to form a complete paint mist treatment system that effectively removes overspray, keeps the workshop air clean, and meets environmental emission standards for long-term, safe, and efficient production.
This paint mist treatment water curtain cabinet is built with durable anti-corrosion PP material, suitable for long-term use in humid and corrosive workshop environments.
For environmental compliance, you can refer to standards from the Environmental Protection Agency. You may also like our industrial dust collector series for a complete air filtration solution.
How Our Water Curtain Spray Booth Simplifies Daily Maintenance
Proper use and regular maintenance are key to ensuring your water curtain spray booth operates efficiently, safely, and with a long service life. Follow these simple guidelines to keep your equipment running smoothly and minimize downtime.
✅ Daily & Weekly Usage Best Practices
Before starting any painting or sanding job, always perform a quick pre-operation check. First, ensure the water tank is filled to the correct level with clean water mixed with a small amount of paint coagulant (if recommended) to prevent paint sludge from hardening.
Turn on the water pump and fan to verify that the water curtain forms evenly across the booth and there are no leaks or unusual noises.
During operation, avoid overloading the booth with paint mist or sanding dust beyond its rated capacity. Keep the work area well-ventilated and never leave the booth unattended while it is running. At the end of each workday, turn off the pump and fan, drain any excess paint sludge from the tank, and rinse the water curtain and collection trough to prevent buildup.
With its corrosion-resistant PP construction, intelligent control system, and efficient multi-stage filtration, our polishing and painting water curtain cabinet is a reliable choice for any industrial spray booth.It effectively captures paint mist, maintains a clean working environment, and works seamlessly with your existing equipment to ensure safe, efficient, and compliant painting operations for years to come.
