Corrosion-resistant PP spray towerProduct Overview
PP Wet Scrubber, also called polypropylene spray tower or industrial gas washing tower, is a core wet-type waste gas purification device for industrial environmental protection. It uses counter-current gas-liquid reaction technology to purify various harmful exhaust gases from factories.
This equipment is widely used in electroplating workshops, chemical factories, paint spraying workshops, pickling production lines, pharmaceutical plants and food processing factories. It can effectively remove acid-base fumes, paint mist, floating dust, organic peculiar smell and sulfur-containing waste gas, helping enterprises meet local environmental emission standards smoothly. Compared with traditional purification equipment, PP scrubber has prominent advantages in anti-corrosion performance, operation cost and service life, which makes it one of the most popular gas treatment equipment for overseas industrial purchasers.
Corrosion-resistant PP spray towerMaterial Advantages
The whole tower body is integrally welded with high-density thick PP polypropylene plates, rather than simple bolt splicing. The seamless welding structure completely avoids liquid leakage during long-time continuous operation.
PP material has strong tolerance to strong acid, strong alkali and various corrosive chemical media. It can operate stably in the working environment of hydrochloric acid, sulfuric acid and alkaline neutralizing liquid without corrosion, cracking or rapid aging.
The equipment is lightweight overall, which greatly reduces the cost of container transportation and on-site hoisting installation.
Under regular maintenance, the service life can reach 8 to 10 years.

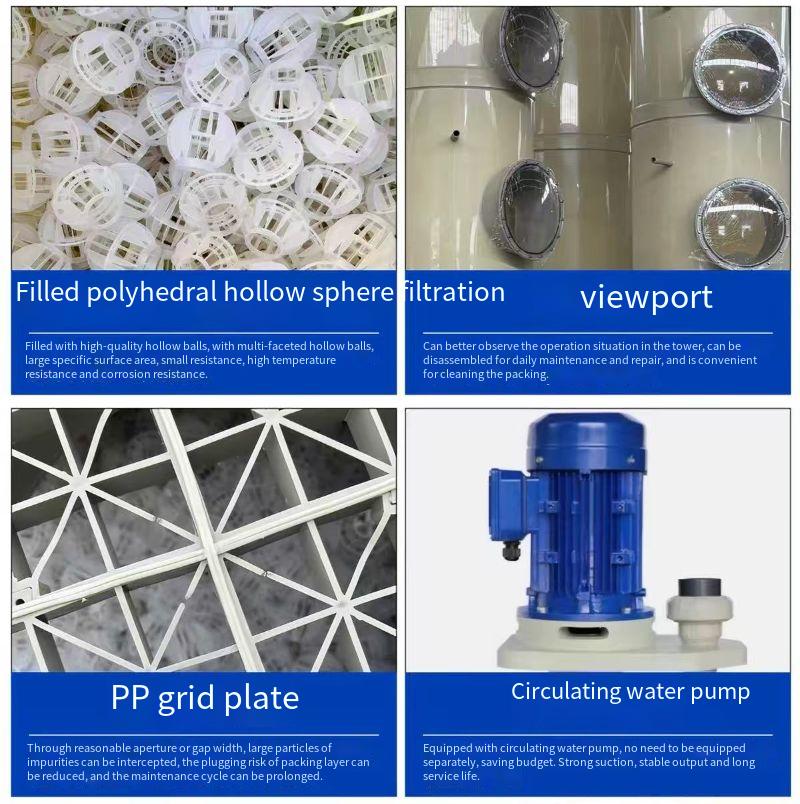

Supporting parts including circulating water tank, spray pipeline and nozzles all adopt anti-corrosion materials. The optimized nozzle structure is anti-clogging and wear-resistant, ensuring uniform liquid atomization and stable long-hour spraying work. We also provide FRP fiberglass customized versions for high-temperature waste gas working conditions to meet diverse production demands.
Corrosion-resistant PP spray towerWorking Principle

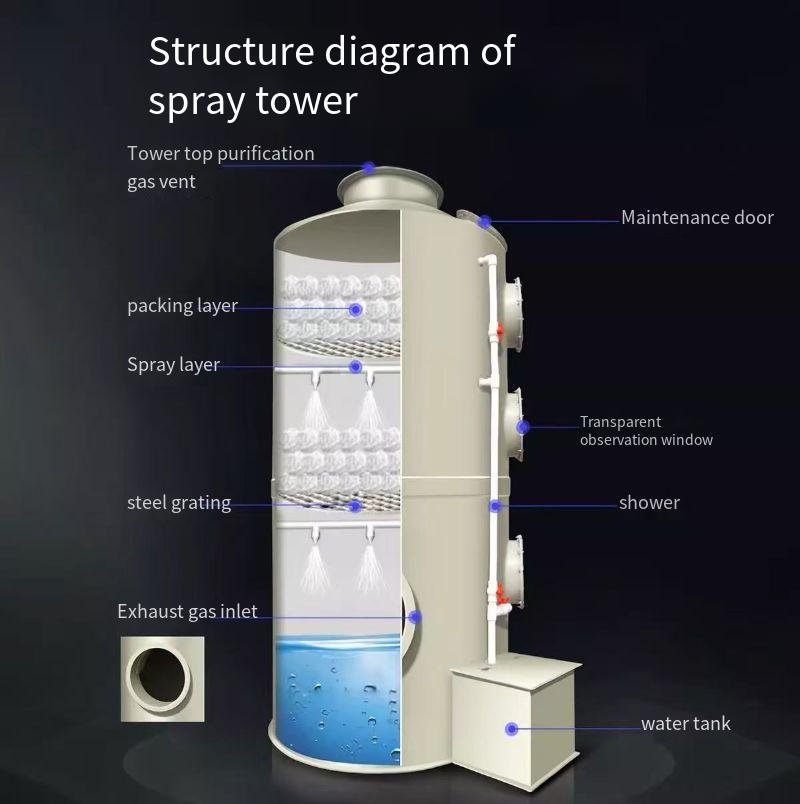

The equipment adopts classic counter-current purification logic, and the operation steps are clear and orderly.
First, polluted waste gas enters the tower from the air inlet at the middle and lower part of the tower and flows upward at a stable speed.
Second, the circulating pump pressurizes the neutralizing cleaning liquid in the bottom water tank and delivers the liquid to the multi-layer spraying system at the top of the tower.
The liquid is atomized into tiny droplets and sprayed down evenly.
Third, upward waste gas and downward atomized liquid form reverse convection. Multi-layer PP packing inside the tower expands the gas-liquid contact area greatly. Acid pollutants will complete neutralization reaction with alkaline liquid, dust and paint mist will be captured and settled by droplets, and odor molecules will dissolve into the circulating liquid.
Finally, the purified gas passes through the top demister to intercept entrained liquid droplets to avoid pipeline dripping. Qualified clean gas is discharged from the top exhaust outlet, and the cleaning liquid flows back to the water tank for cyclic reuse.
Corrosion-resistant PP spray towerOperation and Maintenance Features
The mechanical structure of the PP spray tower is concise without complicated transmission parts, so the energy consumption during operation is very low. Daily maintenance work is simple. Workers only need to test the pH value of circulating liquid regularly, adjust the concentration of neutralizing chemicals and replace waste liquid periodically to maintain efficient purification performance.
The equipment can work independently as a single machine, or combine with induced draft fans and ventilation pipes to build a complete waste gas treatment system.
We support customized adjustment of tower height, diameter and air treatment volume according to customers’ actual exhaust flow of factories, adapting to both small workshops and large industrial production lines.
Long-term operating investment is low, spare parts replacement frequency is low, and the purification efficiency can be maintained above 95% for conventional corrosive waste gas. It is a cost-effective environmental protection solution for global manufacturing enterprises to pass environmental assessment inspection.
Corrosion-resistant PP spray towerApplication Scenarios
This Corrosion-resistant PP spray tower covers most conventional industrial waste gas treatment scenarios. It is ideal for acid mist purification of electroplating pickling lines, paint mist removal of automobile and furniture spraying workshops, waste gas desulfurization of small boilers, odor purification of chemical reagent production workshops, and waste gas treatment of pharmaceutical processing factories. The flexible design can match different workshop layout and exhaust emission modes, bringing stable environmental compliance guarantee for overseas factory production.
